Give every cable and route segment a stable identity

Start with the equipment list, circuit diagrams, network architecture and physical route drawings. Assign a unique cable ID to each scheduled cable. Record its source and destination equipment, terminal or port references, circuit function and drawing revision. Use a separate route identifier for the physical pathway so several cables can reference the same tray without losing their individual requirements.

Where the route changes environment or installation method, divide it into segments. A cable may pass from an indoor tray through a wall entry to an outdoor duct. The schedule should show those transitions because they can change construction, installation or accessory requirements. If a joint or transition assembly is proposed, record its location and approval status rather than hiding it within the length total.

A cable ID and a stock item number serve different purposes. Several installed cables may use the same purchased product, but their lengths, terminations, destinations and acceptance records can differ. Preserve that distinction when consolidating the bill of materials.

Record power, control and communication requirements separately

Use functional groups to prompt the right questions, then attach the project-specific detail. Power circuits need an approved electrical design basis; control circuits need their signal and termination requirements; communication circuits need the relevant interface and transmission requirements. A jacket color or a general industrial description cannot establish any of these.

A control cable schedule should distinguish the actual signal functions where their requirements differ. For example, a low-level instrument signal and a switching output should not be treated as interchangeable merely because both are described as control. Likewise, an Ethernet connection and another copper communication interface may require different cable constructions and termination practices.

Use the industrial automation and control cable application page to organize product discussions, then confirm the offered cable against the approved circuit requirements. The application category helps identify questions; it does not replace the technical specification.

Classify the route without inventing a universal separation rule

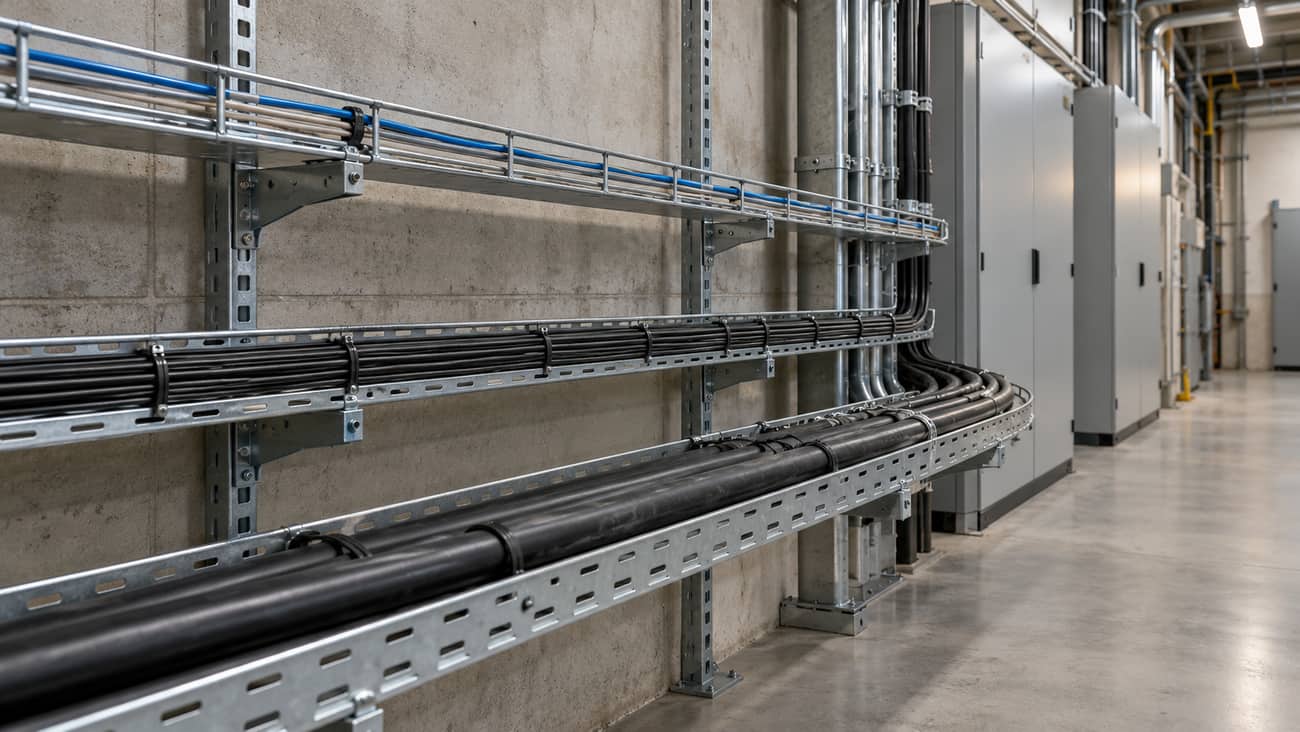

Cable route classification should record the installation context: tray or conduit, indoor or outdoor, fixed or moving, electrical interference exposure, and any project-specific segregation or route-diversity requirement. Link each requirement to its source document and responsible reviewer.

There is no single separation distance suitable for every combination of voltage, circuit type, shielding, containment and equipment. As one equipment-specific example, Schneider Electric’s Altivar drive wiring guidance calls for separating control wiring from power wiring and directs users to the drive instructions. It also states that shielding does not remove the separation requirement. Apply that guidance within its equipment scope; do not turn it into a universal spacing value for the entire project.

For each shared pathway, ask the designer to confirm which circuit groups are permitted together and what barriers, routing or bonding provisions are required. Record crossings and transitions where the arrangement changes. If the answer is pending, mark the affected schedule lines for review instead of choosing a spacing by habit.

Optical communication removes the electrical signal path through the glass fiber, but an optical cable can still contain conductive components. Record armor or other metallic elements and their project treatment. Mechanical protection, environmental suitability, fire requirements and access remain relevant even when the communication medium is optical.

Attach environment, interfaces and acceptance documents

Describe exposure along the actual route: moisture, sunlight, temperature, oils or chemicals where relevant, mechanical loads and any special area classification. Keep operating conditions distinct from installation and storage conditions. Ask the supplier to identify the specification or evidence supporting each required characteristic.

At each end, check the complete termination interface. Cable outside diameter affects gland selection; conductor and terminal requirements affect termination hardware; connector bodies can affect access through an entry. Record which party supplies glands, adapters, lugs, strain relief and other accessories. A cable-only price does not necessarily cover an installable assembly.

• Specify required fire-performance or other compliance documents by project requirement and applicable product scope. Do not infer several distinct properties from one jacket description.
• Define the test package by circuit type and project acceptance plan, with cable IDs carried into the reports.
• Identify deviations in a dedicated field, including the approval owner and affected schedule revision.
• Require proposed substitutes to preserve all approved circuit, route and interface requirements, or to list the changes for review.

For energy and power infrastructure applications, confirm the particular cable category and ratings rather than assuming one construction serves every route. A site may need several product families even when the circuits terminate in the same equipment area.

Build the length calculation from the route

Separate measured or modeled route length from allowances. Record horizontal runs, vertical rises and drops, equipment-entry routing and the required termination or service allowance. State whether the route was surveyed, taken from a drawing or estimated pending access. This lets the team update one element without losing the basis of the total.

For an illustrative arithmetic example, a route comprising 70 m along a tray, 8 m of vertical travel and 6 m of combined approved end allowances totals 84 m for that cable run. These are assumed values, not a standard allowance. A procurement or drum-cutting allowance, if required, should be recorded separately so it is not added again by multiple teams.

Review how the calculated runs will be supplied. Several cut lengths may be ordered from one drum, but unusable residual lengths, transport constraints and permitted joint locations affect the cutting plan. Identify whether an uninterrupted run is required. Do not convert the sum of route lengths directly into an order quantity without reviewing the supply format.

When a route changes, update the affected cable IDs and downstream quantities rather than applying a percentage to the whole project. Keep the previous revision available for reconciliation. The purchasing team needs to know whether the change affects material not yet ordered, material in manufacture or cable already delivered.

Release a cable BOM with a clear review status

An energy project cable BOM should aggregate only lines that share the same approved product requirements. Preserve a mapping back to the individual cable IDs. Keep accessories as explicit lines, with quantity and responsibility, so they are not lost when cables are consolidated by type.

For quotation, provisional information can be useful if it is clearly identified and the supplier states its assumptions. Manufacturing release requires the agreed technical and dimensional inputs to be resolved. Record the distinction so an estimated route length is not mistaken for a final cut length.

Before issue, reconcile the cable schedule with the equipment list, terminal schedule and route drawings. Check for duplicate IDs, missing endpoints, obsolete revisions and accessory quantities that no longer match the cable count. This review makes the schedule a dependable link between engineering, procurement, installation and acceptance.
