GDTC8S Figure-8 Steel Wire Hybrid PSP Armored Optical Fiber and Electrical Cable

GDTC8S                                                                                          Figure-8 Steel Wire Hybrid Optical Fiber and Electrical Cable PSP Armored for Distributed Base Station

Introduction:

Single-mode or multimode fibers are housed in loose tubes that are made of high modulus plastic and filled with tube filiing compund,In the center of cable is a metallic strength member,The tubes and copper wires are stranded around the central strength member to form a cable core.The core is filled with cable filling compound and armored with corrugated steel tapes.Stranded steel wires are applied as the messenger.Finally.a figure-8 PE Outer sheath is extruded.

Features:

● Accurate process control ensuring good mechanical and temperature performances
● Optical and electrical hybrid design,solving the problem of power supply and signal transmission
● Providing manageability of power and reducing coordination and maintenance of power supply
● Reduing procurement costs and saving construction costs
● Mainly  used to connect BBU,RRU in DC remote power supply system for distributed base station
● Applicable to self-supporting aerial installation

Product Series:

1

Hybrid Optical and Electrical Cable
Applied in Access Network

GDTC8S

Self-supporting Aerial PSP

GDTA53

Buired Installation

GDTA,GDTS

Duct or Aerial Installation

2

Hybrid Optical Cable
Applied in Wireless RRU

GDFJAH

 Hybrid Optical Fiber Electrical  APL LSZH

GDFJAHP

 Hybrid Optical Fiber Electrical  APL LSZH

GJYFJH

Sub-unit Aramid yarn LSZH Sheath

GJYWFJH

TBF Aramid LSZH Sheath

GJYXFH

 Multi-core Aramid Yarns Double Sheath

GDFJH

Hybrid Optical and Electrical steel hose

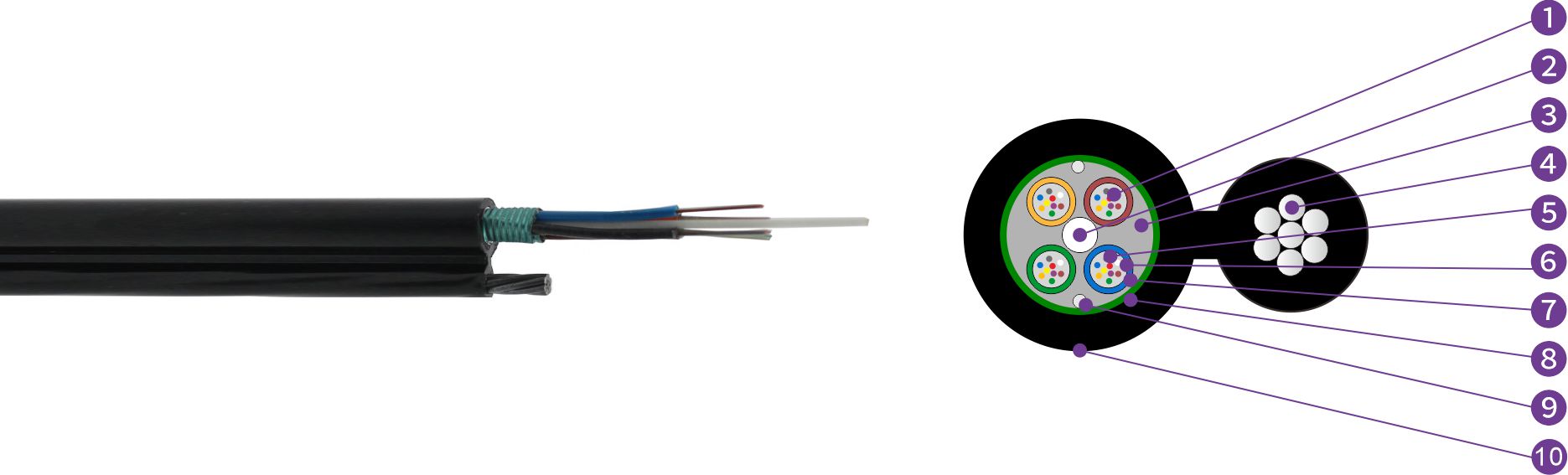

Cross Section:

1,Copper Wire  2,Strength Member  3,Cable Filling Compound  4,Steel Wire  5,Fibre  6,Tube Filling Compound  7,Loose Tube  8,PSP  9,Ripcord  10,PE Sheath

Technical Characteristics:

Type

Diameter
mm

Weight
(kg/km)

Tension(N)
Long/short

Crush Resistance
Long/short
(N/100mm)

Bending radius
Dynamic/static
mm

GDTC8S- -02-24Xn+2×2.5

13.1*20.6

297

1000/3000

1000/3000

20D/10D

  Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

Environmental Characteristics:

  Transport/storage temperature: -40℃~70℃

Delivery Length:

 Standard length:2000m;Other length availabe
