Multi-core Indoor Micro Cable
N/M
N/M
Indoor Fiber Optic Cables
ISO9001
1km/Spool
Wooden Spool ，Φ380*380mm
100km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.

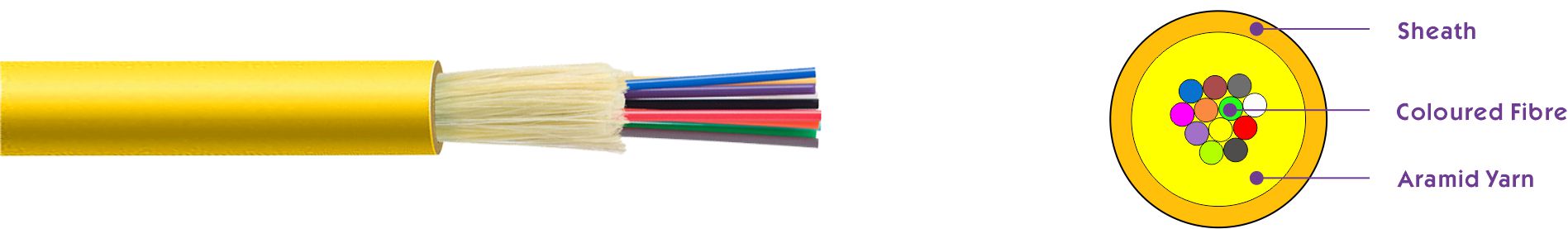

The multi-core indoor micro cable uses several coloured fibres
as optical transmission medium, covered with aramid yarn as
strength member, then extruded with a PVC sheath. Other sheath
materials, like LSZH and TPU, are available on request.
Small diameter because of using coloured fibres instead of tight-buffered fibres
High tensile strength due to aramid strength member
Excellent corrosion resistant, waterproof, flame retardant and environmental- friendly properties of the outer sheath
Multi-core fibre flexible connector
Indoor cabling
YD/T1258.2-2003 IEC60794-2-10/11
Standard Reel Length: 2000m; Other lengths available on request
GJJV-Indoor 0.9mm Tight-Buffer Fiber Cable: The cable consists of a single G.652D/G.657A1 (0.9mm) fiber, a tight buffer,
an LSZH/Fire-Retardant PVC sheath, and is lightweight for indoor installation or pigtails.
GJFJH-Indoor Duplex Tight-Buffer Fibers with Aramid Yarns: The cable has two 900μm tight- Buffered fibers of aramid yarn strength,
LSZH sheath, and a round design for duplex patch cords or a short connection.
GJFJBV-Indoor Flat Duplex Tight-Buffer Fibers with Aramid Yarns: A pair of tight-buffered fibers with aramid yarn strength,
LSZH sheath, and a flat design for the horizontal indoor wiring or patch cords.
GJPFJV-Indoor Multi-Core Tight-Buffer Bundle with Aramid Yarns: Several (4-24) close-packed fibers with aramid yarn strength,
LSZH sheath, for internal distribution and trunk lines.
GJBFJV-I-Indoor Multi-Core Branch with CSM: Tight-buffing multi-core fibers-Central strength member (CSM, usually FRP),
LSZH sheath, that are suitable for vertical wiring and branching.
GJBFJV-II-Indoor Multi-Core Branch Fiber Optic Cable: Multi-core (while) t-bore fibers, aramid yarn strength without CSM,
LSZH sheath, flexible for indoor branch lines.
GJBFJVH-Indoor Large Fiber Count Mixed Branch with CSM: Number of fibers up to 144 cores (hence the level of); CSM (FRP);
LSZH sheath, for big-scale indoor distribution and mixed branching.
GJPFH-Indoor Micro-Tube Breakout with CSM: Multi-core fibers in micro-tubes with FRP strength, LSZH sheath,
which are suitable for indoor applications, where flexibility is needed.
GJPFXJH-Indoor Breakout Tight-Buffer Fibers with FRP Strength: Tight-buffers fibers with FRP (Pull and bear) strength members
and LSZH sheath, usable for high-density indoor breakout cables.
GJPFWQH-Indoor Micro-Tube Breakout with FRP Strength: Micro-tubes with tight-buffers fibers, FRP strength,
LSZH sheath, compact for breakout transitions indoor
