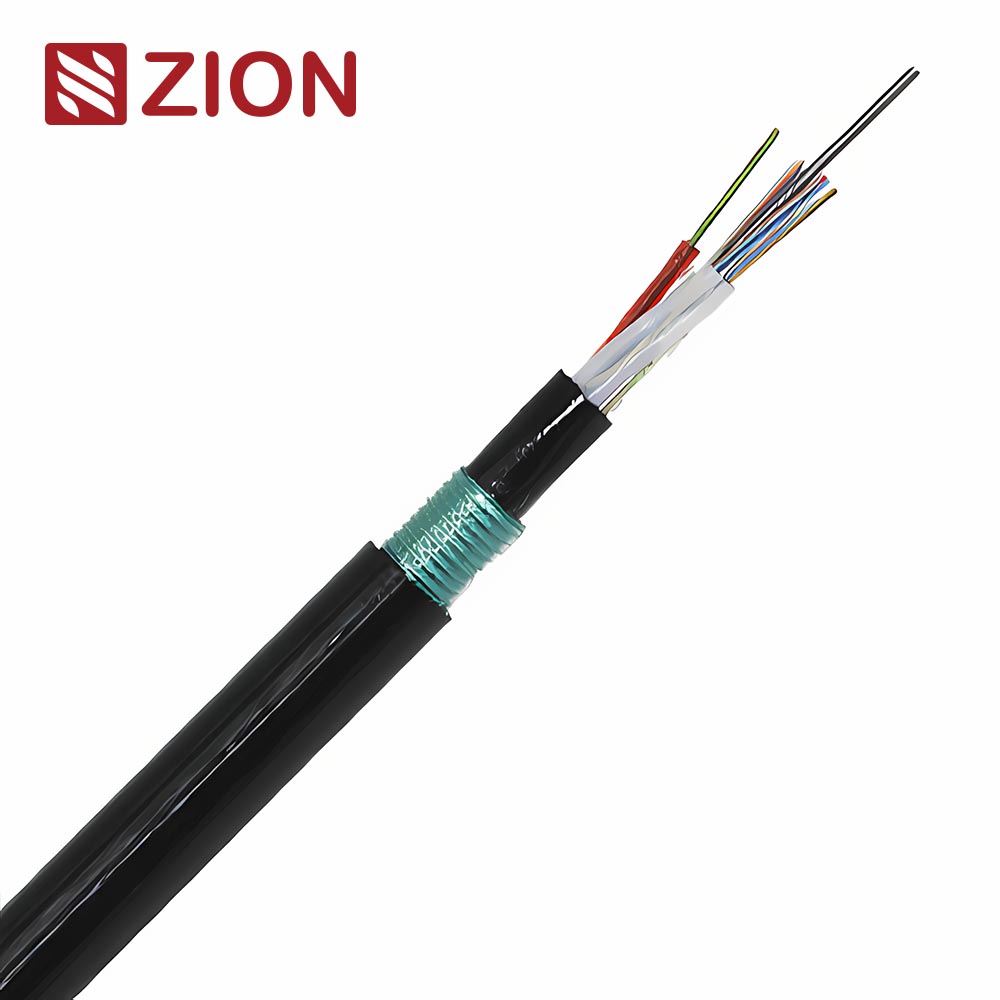

Layer-stranded single Armored and Double
Sheathed Optical Cable ( GYTY53 )
| Introduction | ||||||

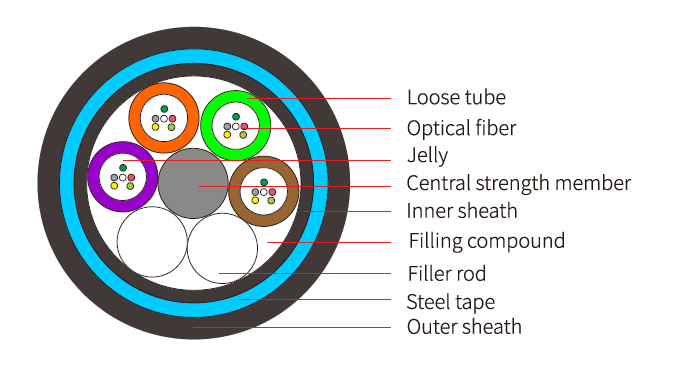

| The fibers are placed in a loose tube made of PBT. The tubes are filled with a water-resistant filling compound. A steel wire sometimes sheathed with PE for cable with high fiber count,locates in the center of core as a metallic strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress,over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath. | ||||||
| Technical Parameters: | ||||||
| No. of fibers | No.of fibers per tube (max) | No.of elements | Tube diameter | Jacket | Short term tension | Short term crush |
| 4 count | 4 count | 1 count | 1.7±0.05mm | 11.2mm(1.8) | 3000N | 3000N/100mm |
| Test method and Mechanical Characteristic | ||||||
| Tensile Strength | confirm to IEC 794-1-E1 | Temperature requirement | Operation | -40℃ - +60℃ | ||
| Crush | confirm to IEC 794-1-E3 | Installation | -10℃ - +60℃ | |||
| Impact | confirm to IEC 794-1-E4 | Storage/Tran-sportation | -40℃ - +60℃ | |||
| Repeated bending | confirm to IEC 794-1-E6 | |||||
| Torsion | confirm to IEC 794-1-E7 | Temperature cycling test | confirm to IEC 794-1-F1 | |||
| Flexing | confirm to IEC 794-1-E8 | |||||
| Cable bend | confirm to IEC 794-1-E11 | Bending Radius | Unloaded | 10 times of outer diameter | ||
| Water penetration | confirm to IEC 794-1-F5B | Loaded | 20 times of outer diameter | |||
| Fiber Color Code | Color codes for loose tube & filler rod | |||||
| 1 | 2 | 3 | 4 | 1 | |||
| Blue | Orange | Green | Brown | Blue | |||
| Order Informations: | ||||||
| Marking | HELLOSIGNAL GYTY53 XXX (or Per customer's request) | |||||
| Inner Package | 1000m/Spool (or Per customer's request) | |||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||
| Delivery time | Normally 25 days after received the deposit. | |||||
| Brand | HELLOSIGNAL® OR OEM | |||||
