Product Description
Center Bundle light Armored Optical Fiber Cable ( GYXTW )
| Introduction | ||||||
| The fibers are placed in a losse tube made of PBT. The tube is filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water -blocking material is applied to keep the cable compact and waterlight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a PE sheath. | ||||||
| Technical Parameters: | ||||||
| No. of fibers | No.of fibers per tube (max) | No.of elements | Tube diameter | Jacket | Short term tension | Short term crush |
| 8 count | 8 count | 1 count | 2.0±0.05mm | 8.2mm(2.3) | 1500N | 1000N/100mm |
| Test method and Mechanical Characteristic | ||||||
| Tensile Strength | confirm to IEC 794-1-E1 | Temperature requirement | Operation | -40℃ - +60℃ | ||
| Crush | confirm to IEC 794-1-E3 | Installation | -10℃ - +60℃ | |||
| Impact | confirm to IEC 794-1-E4 | Storage/Tran-sportation | -40℃ - +60℃ | |||
| Repeated bending | confirm to IEC 794-1-E6 | |||||
| Torsion | confirm to IEC 794-1-E7 | Temperature cycling test | confirm to IEC 794-1-F1 | |||
| Flexing | confirm to IEC 794-1-E8 | |||||
| Cable bend | confirm to IEC 794-1-E11 | Bending Radius | Unloaded | 10 times of outer diameter | ||
| Water penetration | confirm to IEC 794-1-F5B | Loaded | 20 times of outer diameter | |||
| Fiber Color Code | ||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Blue | Orange | Green | Brown | Gray | White | Red | Black |
| Order Informations: | ||||||
| Marking | HELLOSIGNAL GYXTW XXX (or Per customer's request) | |||||
| Inner Package | 1000m/Spool (or Per customer's request) | |||||
| Outer Package | Color Box, Pallet (or Per customer's request) | |||||
| Delivery time | Normally 25 days after received the deposit. | |||||
| Brand | HELLOSIGNAL® OR OEM | |||||

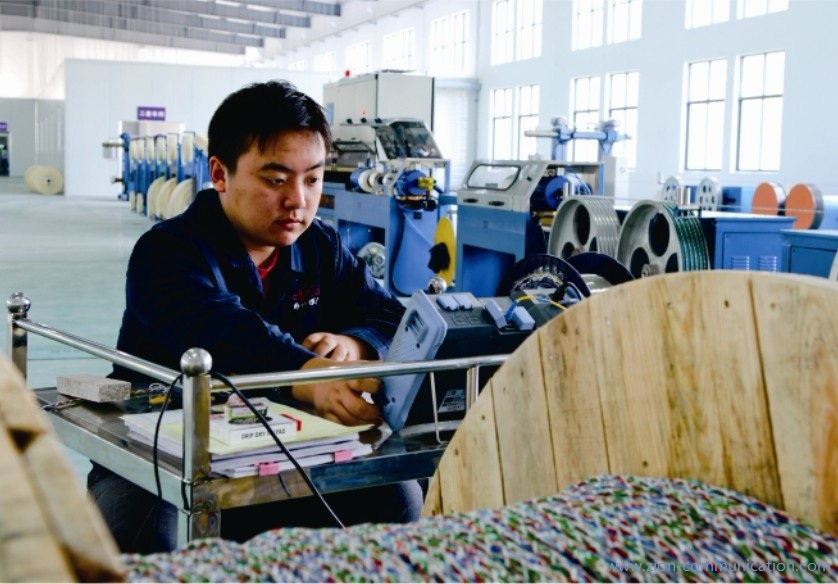

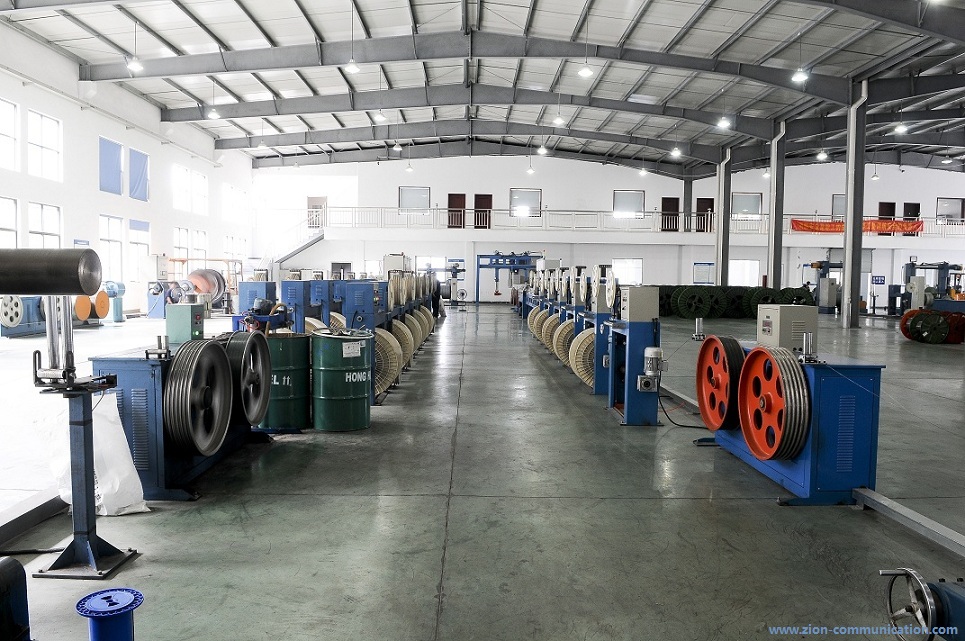

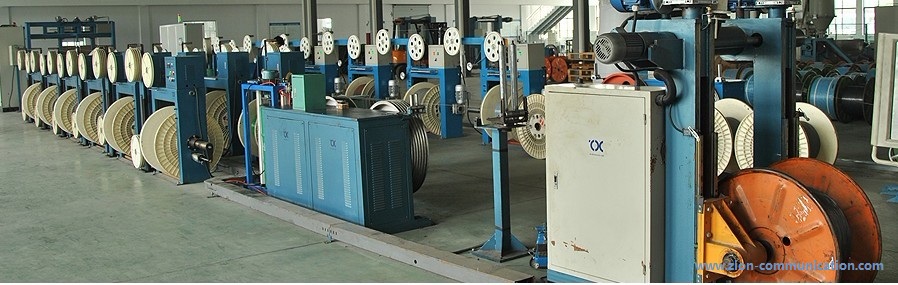

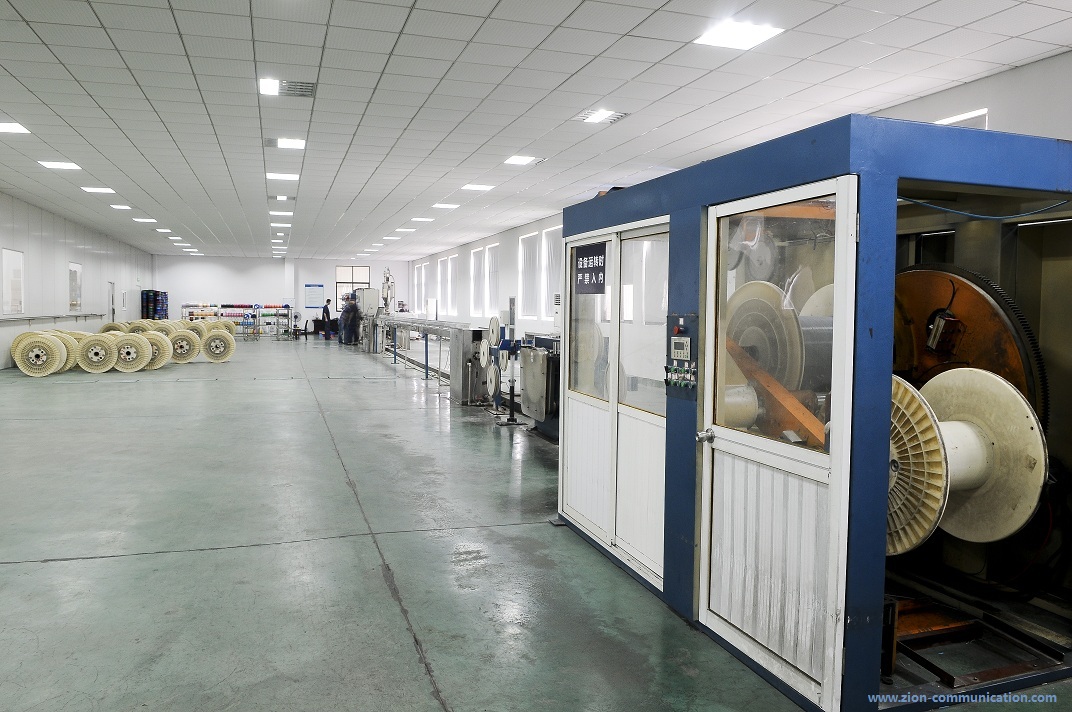

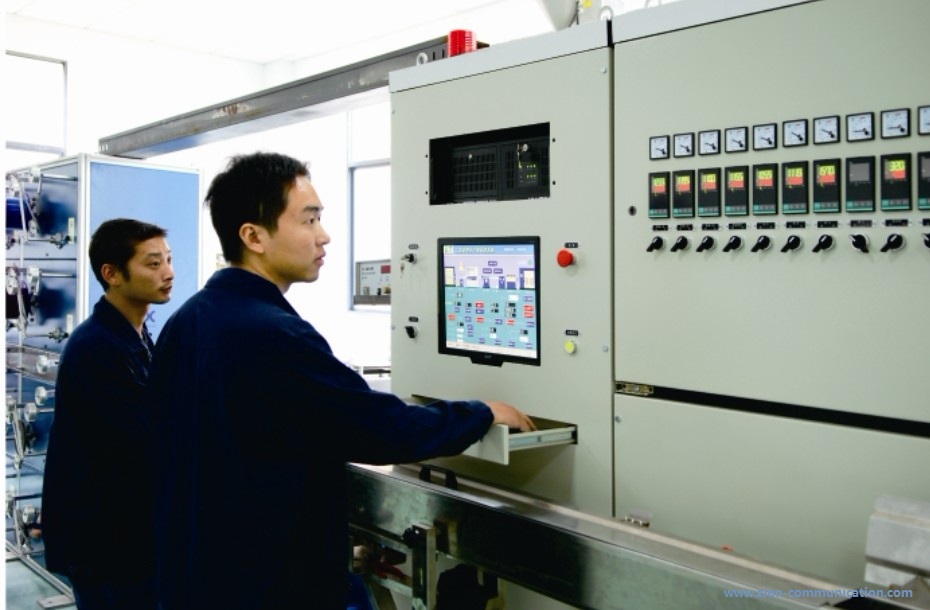

Production Process Flow Chart
