GJFJH - Single Core Tight Wrapped Indoor Optical cable

Single Core Tight Wrapped Indoor Optical Cable ( GJFJH 1×n )

■ Introduction:

· One 900μm buffered fiber is surrounded by aramid yarn strength members and a flame-retardant jacket.

· The cable uses G652D fiber.

G652D Fiber Information

· Mode Field Diameter (1310nm): 9.2μm ± 0.4μm

· Attenuation at 1310nm: ≤0.35dB/km

· Mode Field Diameter (1550nm): 10.4μm ± 0.8μm

· Attenuation at 1550nm: ≤0.21dB/km

· Cladding Diameter: 125μm ± 1.0μm

· Bending Loss at 1550nm (100 turns, 30mm radius): ≤0.05dB

· Coating Diameter: 245μm ± 7μm

· Dispersion at 1550nm: ≤18ps/(nm·km)

· Cut-off Wavelength of Cabled Fiber: ≤1260μm

· Dispersion Slope at Zero Dispersion Wavelength: ≤0.092ps/(nm²·km)

■ Technical Parameters:

· Number of Fibers: 1

· Tight Buffer Material & Color: LSZH | Yellow

· Strength Member: Aramid yarns

· Tight Buffer Diameter: 0.9 ± 0.05mm

· Jacket: 3mm (0.5)

· Short Term Tension: 150 N

· Short Term Crush: 500N/100mm

■ Test Method and Mechanical Characteristics:

· Tensile Strength: Conforms to IEC 794-1-E1

· Temperature Requirements:

· Operation: -20°C to +85°C

· Installation: -10°C to +70°C

· Storage/Transportation: -40°C to +85°C

· Crush: Conforms to IEC 794-1-E3

· Impact: Conforms to IEC 794-1-E4

· Repeated Bending: Conforms to IEC 794-1-E6

· Torsion: Conforms to IEC 794-1-E7

· Temperature Cycling Test: Conforms to IEC 794-1-F1

· Flexing: Conforms to IEC 794-1-E8

· Cable Bend: Conforms to IEC 794-1-E11

· Bending Radius:

· Unloaded: 10 times the outer diameter

· Loaded: 20 times the outer diameter

· Water Penetration: Conforms to IEC 794-1-F5B

■ Cable Types:

· XT3000: Single Mode

· XT3001: Multi Mode

■ Product Series

■ Product Classification and Summaries

Single-Core Tight-Buffered Cables

• GJJV-Indoor 0.9mm Tight-Buffer Fiber Cable: The cable consists of a single G.652D/G.657A1 (0.9mm) fiber, a tight buffer, an LSZH/Fire-Retardant PVC sheath, and is lightweight for indoor installation or pigtails.



Duplex Tight-Buffered Cables

• GJFJH-Indoor Duplex Tight-Buffer Fibers with Aramid Yarns: The cable has two 900μm tight- Buffered fibers of aramid yarn strength, LSZH sheath, and a round design for duplex patch cords or a short connection.



• GJFJBV-Indoor Flat Duplex Tight-Buffer Fibers with Aramid Yarns: A pair of tight-buffered fibers with aramid yarn strength, LSZH sheath, and a flat design for the horizontal indoor wiring or patch cords.





Multi-Core Cables (Bundle and Branch)

• GJPFJV-Indoor Multi-Core Tight-Buffer Bundle with Aramid Yarns: Several (4-24) close-packed fibers with aramid yarn strength, LSZH sheath, for internal distribution and trunk lines.



• GJBFJV-I-Indoor Multi-Core Branch with CSM: Tight-buffing multi-core fibers-Central strength member (CSM, usually FRP), LSZH sheath, that are suitable for vertical wiring and branching.



• GJBFJV-II-Indoor Multi-Core Branch Fiber Optic Cable: Multi-core (while) t-bore fibers, aramid yarn strength without CSM, LSZH sheath, flexible for indoor branch lines.



• GJBFJVH-Indoor Large Fiber Count Mixed Branch with CSM: Number of fibers up to 144 cores (hence the level of); CSM (FRP); LSZH sheath, for big-scale indoor distribution and mixed branching.





Breakout Cables

• GJPFH-Indoor Micro-Tube Breakout with CSM: Multi-core fibers in micro-tubes with FRP strength, LSZH sheath, which are suitable for indoor applications, where flexibility is needed.



• GJPFXJH-Indoor Breakout Tight-Buffer Fibers with FRP Strength: Tight-buffers fibers with FRP (Pull and bear) strength members and LSZH sheath, usable for high-density indoor breakout cables.



• GJPFWQH-Indoor Micro-Tube Breakout with FRP Strength: Micro-tubes with tight-buffers fibers, FRP strength, LSZH sheath, compact for breakout transitions indoor





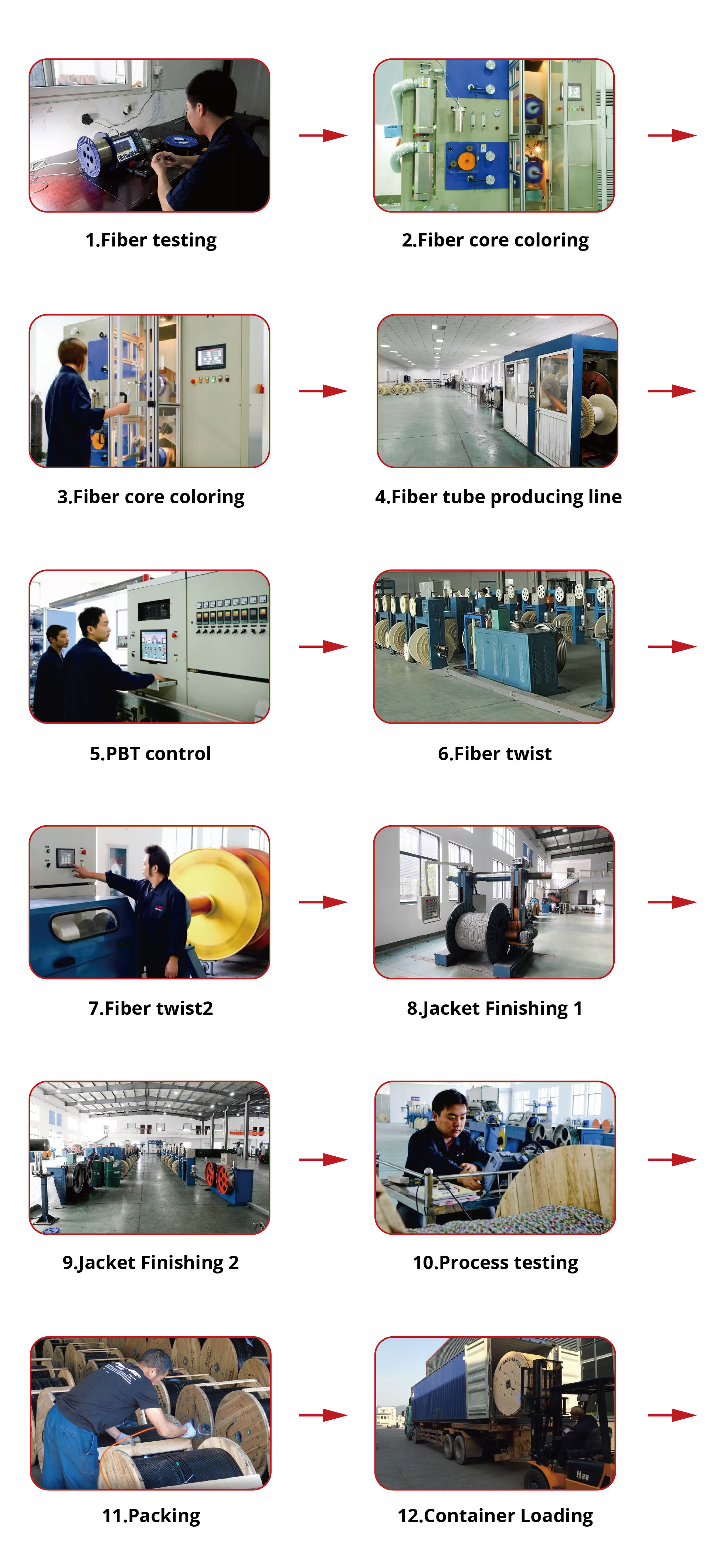

■ Order Information:

· Marking: HELLOSIGNAL GJFJH XXX (or per customer's request)

· Inner Package: 1000m/Spool (or per customer's request)

· Outer Package: Color Box, Pallet (or per customer's request)

· Delivery Time: Normally 25 days after receiving the deposit

· Brand: HELLOSIGNAL® or OEM
