HELLOSIGNAL Z-FLEX-SB2464 PVC flexible control cable for drag chain with screen

  • Z-FLEX-SB2464 PVC flexible control cable for drag chain with screen
  • hellosignal
  • 7145200

Z-FLEX-SB2464 PVC flexible control
cable for drag chain with screen

Application

This cable apply to drag chain and general line control of
low voltage control system.It has ideal outside diameter
and apply to smaller bending radius for drag chain.
It apply to line control system with less interference.

Cable Construction

Conductor:high bending strength ultra-fine stranded copper

                conductor;accroding to IEC60228 Class5

Insulation: PVC mixture insulation,color according to DIN 47100

Jacket:high abrasion resistant PVC jacket

Product Feature

This product meets the requirements of UL758 style 2464

Fire resistance meets VW-1&FT1&IEC60332-1

oil and abrasion resistant

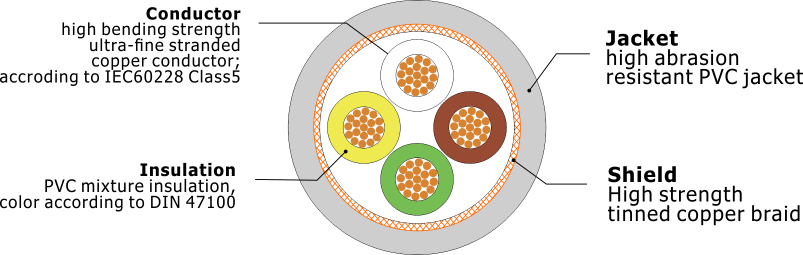

Cross Section

Z-FLEX-SB2464 PVC flexible control

Technical data

Temperature range

Bend: -5 to 80

Static:-40 to 80

Rated voltage

UL/CSA    300V

 IEC/VDE   ≤0.5mm²;300/300V

                  ≥0.5mm²;300/500V

Insulation resistance

20≥10M ohm/km

Min bending radius

Fixed:O.D was less than 12mm 5D(D=cable diameter)

O.D was more than 12mm 7.5D(D=cable diameter)

MovingO.D was less than 12mm 7.5D(D=cable diameter)

O.D was more than 12mm 10D(D=cable diameter)

Product List

Item No.

Spec.(core*Nominal cross-section) mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7145300

2*0.25

4.7

14

33

7145301

3*0.25

4.9

17

39

7145302

4*0.25

5.2

20.5

45

7145303

6*0.25

6

27.9

59

7145304

8*0.25

6.7

35.4

72

7145305

10*0.25

7.2

41.8

83

7145306

12*0.25

7.4

47.2

93

7145307

14*0.25

7.7

53

103

7145308

18*0.25

8.5

65

123

7145309

20*0.25

8.9

71.1

135

7145310

24*0.25

10

83.6

163

7145311

30*0.25

10.7

109.3

201

7145312

40*0.25

11.8

138

250

7145313

2*0.34

4.9

16.4

37

7145314

3*0.34

5.1

20.3

45

7145315

4*0.34

5.5

24.7

52

7145316

6*0.34

6.3

34

68

7145317

8*0.34

7.1

43.4

84

7145318

10*0.34

7.6

51.6

97

7145319

12*0.34

7.3

37.7

110

7145320

14*0.34

7.7

44

121

7145321

18*0.34

8.5

56.5

146

7145322

20*0.34

8.9

62.8

161

7145323

24*0.34

10.1

75.3

204

7145324

30*0.34

10.7

94.2

238

7145325

40*0.34

11.9

125.6

298

Product List

Item No.

Spec.(core*Nominal cross-section) mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7145326

2*0.50

5

9.5

46

7145327

3*0.50

5.2

14.3

57

7145328

4*0.50

5.6

19

67

7145329

6*0.50

6.6

28.6

89

7145330

8*0.50

7.6

38.1

110

7145331

10*0.50

8.2

47.6

130

7145332

12*0.50

8.5

57.1

147

7145333

14*0.50

8.9

66.6

164

7145334

18*0.50

9.9

85.7

210

7145335

20*0.50

10.4

95.2

230

7145336

24*0.50

11.8

114.2

276

7145337

30*0.50

12.4

142.8

326

7145338

40*0.50

13.9

190.4

412

7145339

2*0.75

5.4

14.3

56

7145340

3*0.75

5.7

21.4

70

7145341

4*0.75

6.2

28.6

83

7145342

6*0.75

7.3

42.8

112

7145343

10*0.75

9.1

71.4

166

7145344

12*0.75

9.4

85.7

189

7145345

20*0.75

11.8

142.8

307

7145346

24*0.75

13.1

171.3

359

7145347

30*0.75

13.9

214.1

427

7145348

2*1.0

5.9

18.8

67

7145349

3*1.0

6.3

28.2

85

7145350

4*1.0

6.8

37.6

101

7145351

6*1.0

8

56.4

138

7145352

10*1.0

10.4

94

224

7145353

12*1.0

10.8

112.8

256

7145354

20*1.0

13.2

188

385

7145355

24*1.0

15.1

225.6

465

7145356

30*1.0

15.9

282

553

7145357

2*1.5

6.7

27.5

86

7145358

3*1.5

7.1

41.3

109

7145359

4*1.5

7.7

55.1

136

7145360

6*1.5

9.5

82.6

191

7145361

10*1.5

12

137.7

298

7145362

12*1.5

12.8

165.2

353

7145363

20*1.5

15.7

275.4

535

7145364

24*1.5

17.4

330.5

627

7145365

30*1.5

18.4

413.1

753

Order Informations

Marking

HELLOSIGNAL Z-FLEX-SB2464 PVC flexible control
cable for drag chain with screen XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
