HELLOSIGNAL Z-FLEX20276 PVC flexible singal control cable for drag chain with screen (Multicore)

▉ Application

This cable apply to drag chain and general line control of
low voltage control system.It has ideal outside diameter
and apply to smaller bending radius for drag chain.
It apply to line control system with less interference.

▉ Cable Construction

Conductor:high bending strength ultra-fine stranded copper conductor

Insulation: PVC mixture insulation

Shield: high strength tinned copper braid

Jacket:flexible oil and heat resistant PVC jacket

▉ Product Feature

This product meets the requirements of UL758 style 20276

Oil,abrasion and bending resistance

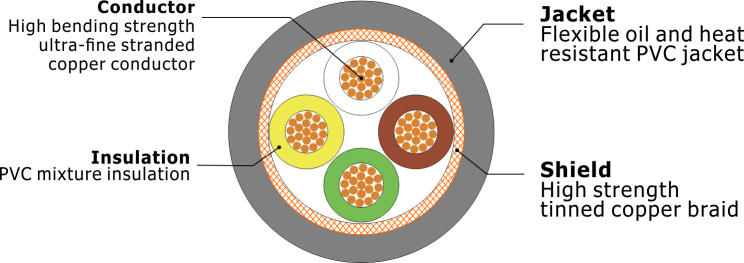

▉ Cross Section

▉ Technical data

Temperature range

Bend: -5℃ to 80℃

Static: -40℃ to 80℃

Rated voltage

UL/CSA    30V

IEC/VDE≤100V

Insulation resistance

20℃≥10M ohm/km

Min bending radius

6D(D=cable diameter)

▉ Product List

Item No.

Spec.(core*Nominal cross-section) mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7145000

2*26AWG

4.3

9.5

25

7145001

3*26AWG

4.5

11.6

29

7145002

4*26AWG

4.7

13.7

33

7145003

10*26AWG

6.1

26.9

56

7145004

20*26AWG

7.3

45.3

88

7145005

30*26AWG

8.7

64.3

124

7145006

2*24AWG

4.7

11.9

30

7145007

3*24AWG

4.8

14.1

34

7145008

4*24AWG

5.1

17.1

39

7145009

10*24AWG

6.9

34.9

71

7145010

20*24AWG

8.3

59.1

113

7145011

30*24AWG

10.1

88.4

166

7145012

2*22AWG

5

15.1

37

7145013

3*22AWG

5.2

18.9

41

7145014

4*22AWG

5.5

23

48

7145015

10*22AWG

7.5

48.3

91

7145016

20*22AWG

9.1

84.7

147

7145017

30*22AWG

11.2

127

218

7145018

2*20AWG

5.4

20.6

45

7145019

3*20AWG

5.6

26.4

51

7145020

4*20AWG

6

32.9

61

7145021

10*20AWG

8.3

71.5

120

7145022

20*20AWG

10.3

133.5

207

7145023

30*20AWG

12.7

199.4

309

▉ Order Informations

Marking

HELLOSIGNAL Z-FLEX20276 PVC flexible singal control cable
for drag chain with screen (Multicore) XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
