HELLOSIGNAL Z-FLEX2464 PVC flexible control cable for drag chain without screen

▉ Application

This cable apply to drag chain and general line control of
low voltage control system.It has ideal outside diameter
and apply to smaller bending radius for drag chain.
It apply to line control system with less interference.

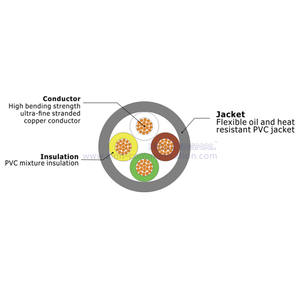

▉ Cable Construction

Conductor:high bending strength ultra-fine stranded copper
                  conductor;accroding to IEC60228 Class5

Insulation: PVC mixture insulation,color according to DIN 47100

Jacket:high abrasion resistant PVC jacket

▉ Product Feature

This product meets the requirements of UL758 style 2464

Fire resistance meets VW-1&FT1&IEC60332-1

oil and abrasion resistant

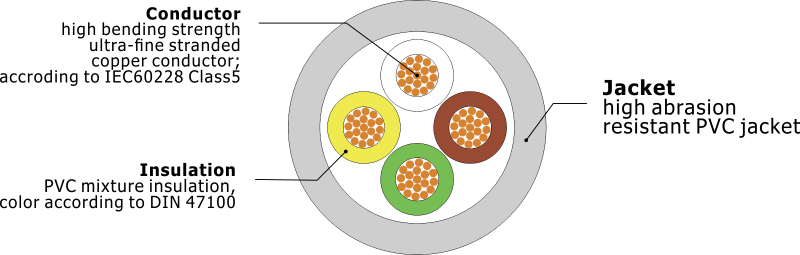

▉ Cross Section

▉ Technical data

Temperature range

Bend: -5℃ to 80℃

Static:-40℃ to 80℃

Rated voltage

UL/CSA    300V

 IEC/VDE   ≤0.5mm²;300/300V

                  ≥0.5mm²;300/500V

Insulation resistance

20℃≥10M ohm/km

Min bending radius

Fixed:O.D was less than 12mm 5D(D=cable diameter)

O.D was more than 12mm 7.5D(D=cable diameter)

MovingO.D was less than 12mm 7.5D(D=cable diameter)

O.D was more than 12mm 10D(D=cable diameter)

▉ Product List

Item No.

Spec.(core*Nominal cross-section) mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7145200

2*0.25

4.2

4.6

23

7145201

3*0.25

4.4

6.9

28

7145202

4*0.25

4.7

9.3

33

7145203

6*0.25

5.5

13.9

44

7145204

8*0.25

6.2

18.5

55

7145205

10*0.25

6.7

23.1

64

7145206

12*0.25

6.9

27.8

73

7145207

14*0.25

7.2

32.4

82

7145208

18*0.25

8

41.6

100

7145209

20*0.25

8.3

46.3

109

7145210

24*0.25

9.5

55.5

134

7145211

30*0.25

10

69.4

160

7145212

40*0.25

11.1

92.5

203

7145213

2*0.34

4.4

6.3

27

7145214

3*0.34

4.6

9.4

34

7145215

4*0.34

5

12.6

39

7145216

6*0.34

5.8

18.8

53

7145217

8*0.34

6.6

25.1

65

7145218

10*0.34

7.1

31.4

77

7145219

12*0.34

7.3

37.7

88

7145220

14*0.34

7.7

44

99

7145221

18*0.34

8.5

56.5

121

7145222

20*0.34

8.9

62.8

133

7145223

24*0.34

10.1

75.3

162

7145224

30*0.34

10.7

94.2

194

7145225

40*0.34

11.9

125.6

248

7145226

2*0.50

5

9.5

34

7145227

3*0.50

5.2

14.3

43

7145228

4*0.50

5.6

19

52

7145229

6*0.50

6.6

28.6

71

▉ Product List

Item No.

Spec.(core*Nominal cross-section) mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7145230

8*0.50

7.6

38.1

88

7145231

10*0.50

8.2

47.6

105

7145232

12*0.50

8.5

57.1

121

7145233

14*0.50

8.9

66.6

137

7145234

18*0.50

9.9

85.7

169

7145235

20*0.50

10.4

95.2

186

7145236

24*0.50

11.8

114.2

227

7145237

30*0.50

12.4

142.8

273

7145238

40*0.50

13.9

190.4

352

7145239

2*0.75

5.4

14.3

42

7145240

3*0.75

5.7

21.4

55

7145241

4*0.75

6.2

28.6

66

7145242

6*0.75

7.3

42.8

91

7145243

10*0.75

9.1

71.4

138

7145244

12*0.75

9.4

85.7

160

7145245

20*0.75

11.8

142.8

258

7145246

24*0.75

13.1

171.3

302

7145247

30*0.75

13.9

214.1

367

7145248

2*1.0

5.9

18.8

51

7145249

3*1.0

6.3

28.2

67

7145250

4*1.0

6.8

37.6

82

7145251

6*1.0

8

56.4

114

7145252

10*1.0

10.4

94

181

7145253

12*1.0

10.8

112.8

211

7145254

20*1.0

13.2

188

328

7145255

24*1.0

15.1

225.6

400

7145256

30*1.0

15.9

282

485

7145257

2*1.5

6.7

27.5

67

7145258

3*1.5

7.1

41.3

88

7145259

4*1.5

7.7

55.1

113

7145260

6*1.5

9.5

82.6

162

7145261

10*1.5

12

137.7

248

7145262

12*1.5

12.8

165.2

300

7145263

20*1.5

15.7

275.4

467

7145264

24*1.5

17.4

330.5

551

7145265

30*1.5

18.4

413.1

672

▉ Order Informations

Marking

HELLOSIGNAL  Z-FLEX2464 PVC flexible control cable
for drag chain without screen XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
