HELLOSIGNAL Z-FLEX20276 PVC flexible singal control cable for drag chain without screen (Multicore)

  • European Standard Fixed Installation Cable H05W-F 300V/500V
  • hellosignal
  • 7145050
Quantity:

Z-FLEX20276 PVC flexible singal
control cable for drag chain
without screen (Multicore)

Application

This cable apply to drag chain and general line control of
low voltage control system.It has ideal outside diameter
and apply to smaller bending radius for drag chain.
It apply to line control system with less interference.

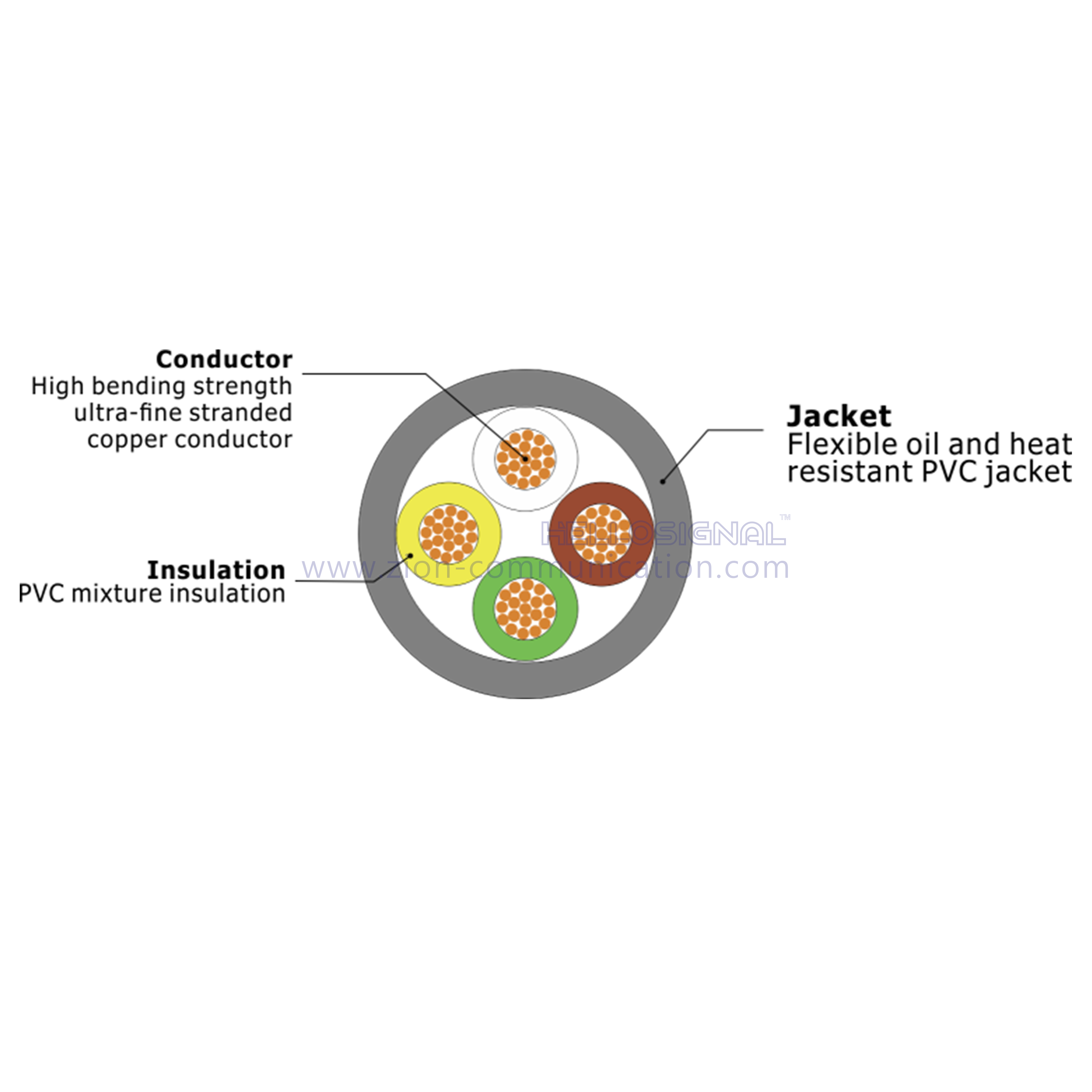

Cable Construction

Conductor:high bending strength ultra-fine stranded copper conductor

Insulation: PVC mixture insulation

Jacket:flexible oil and heat resistant PVC jacket

Product Feature

This product meets the requirements of UL758 style 20276

Oil,abrasion and bending resistance

Cross Section

Z-FLEX20276 PVC flexible singal ..

Technical data

Temperature range

Bend: -5 to 80

Static: -40 to 80

Rated voltage

UL/CSA    30V

IEC/VDE   100V以下

Insulation resistance

20≥10M ohm/km

Min bending radius

6D(D=cable diameter)

Product List

Item No.

Spec.(core*Nominal cross-section) mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7145050

2*26AWG

3.6

3.1

18

7145051

3*26AWG

3.8

4.5

21

7145052

4*26AWG

4

5.9

23

7145053

10*26AWG

5.4

14.5

41

7145054

20*26AWG

6.6

28.8

69

7145055

30*26AWG

8

43.1

100

7145056

2*24AWG

4

4.1

22

7145057

3*24AWG

4.1

6.1

23

7145058

4*24AWG

4.4

8

28

7145059

10*24AWG

6.2

19.7

53

7145060

20*24AWG

7.6

39.3

91

7145061

30*24AWG

9.3

58.8

133

7145062

2*22AWG

4.3

6.4

26

7145063

3*22AWG

4.5

9.5

29

7145064

4*22AWG

4.8

12.6

35

7145065

10*22AWG

6.8

31.2

72

7145066

20*22AWG

8.4

62.1

122

7145067

30*22AWG

10.4

93.1

182

7145068

2*20AWG

4.7

10.5

32

7145069

3*20AWG

4.9

15.6

38

7145070

4*20AWG

5.3

20.8

46

7145071

10*20AWG

8

51.6

98

7145072

20*20AWG

9.9

103.1

174

7145073

30*20AWG

12.2

154.5

261

Order Informations

Marking

HELLOSIGNAL Z-FLEX20276 PVC flexible singal control cable
for drag chain without screen (Multicore) XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
