HELLOSIGNAL Z-FLEX20276 PVC flexible singal control cable for drag chain without screen(Twisted pair)

  • Z-FLEX20276 PVC flexible singal control cable for drag chain without screen(Twisted pair)
  • hellosignal
  • 7145150

Z-FLEX20276 PVC flexible singal control

cable for drag chain
without screen(Twisted pair)

Application

This cable apply to drag chain and general line control of
low voltage control system.It has ideal outside diameter
and apply to smaller bending radius for drag chain.
It apply to line control system with less interference.

Cable Construction

Conductor:high bending strength ultra-fine stranded copper conductor

Insulation: PVC mixture insulation

Jacket:flexible oil and heat resistant PVC jacket

Product Feature

This product meets the requirements of UL758 style 20276

Oil,abrasion and bending resistance

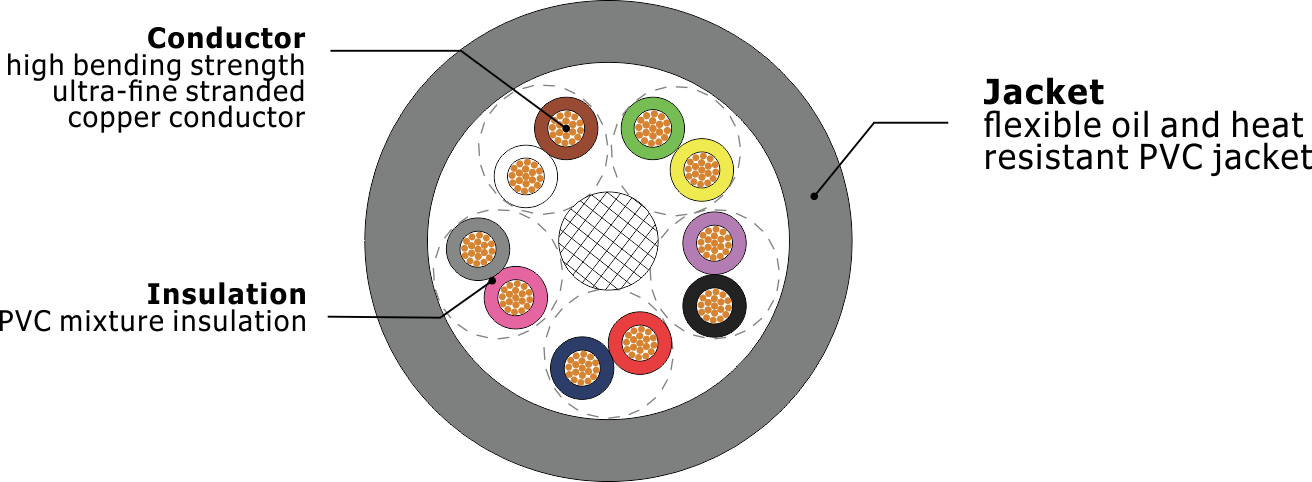

Cross Section

 Z-FLEX20276 PVC flexible singal control cable for drag chain

Technical data

Temperature range

Bend: -5 to 80

Static: -40 to 80

Rated voltage

UL/CSA    30V

IEC/VDE   100V以下

Insulation resistance

20≥10M ohm/km

Min bending radius

6D(D=cable diameter)

Product List

Item No.

Spec.(core*Nominal cross-section) mm²

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7145150

2*2*26AWG

3.5

6

25

7145151

2*3*26AWG

5

8.8

29

7145152

2*4*26AWG

5.4

11.7

35

7145153

2*10*26AWG

7.3

29

71

7145154

2*20*26AWG

9.8

57.7

126

7145155

2*25*26AWG

11

72.1

164

7145156

2*2*24AWG

5

8.1

32

7145157

2*3*24AWG

5.7

12

40

7145158

2*4*24AWG

6.1

15.9

45

7145159

2*10*24AWG

8.4

39.5

95

7145160

2*20*24AWG

11.3

78.9

169

7145161

2*25*24AWG

12.9

98.5

218

7145162

2*2*22AWG

5.5

12.7

42

7145163

2*3*22AWG

6.2

18.9

50

7145164

2*4*22AWG

6.8

25.1

63

7145165

2*10*22AWG

9.3

62.4

129

7145166

2*20*22AWG

12.7

124.7

232

7145167

2*25*22AWG

15.5

155.8

327

7145168

2*2*20AWG

6.1

20.9

55

7145169

2*3*20AWG

7

31.3

71

7145170

2*4*20AWG

7.6

41.6

86

7145171

2*10*20AWG

10.6

103.8

183

7145172

2*20*20AWG

15.6

207.4

368

7145173

2*25*20AWG

17.6

259.2

460

Order Informations

Marking

HELLOSIGNAL Z-FLEX20276 PVC flexible singal control cable
for drag chain without screen(Twisted pair) XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
