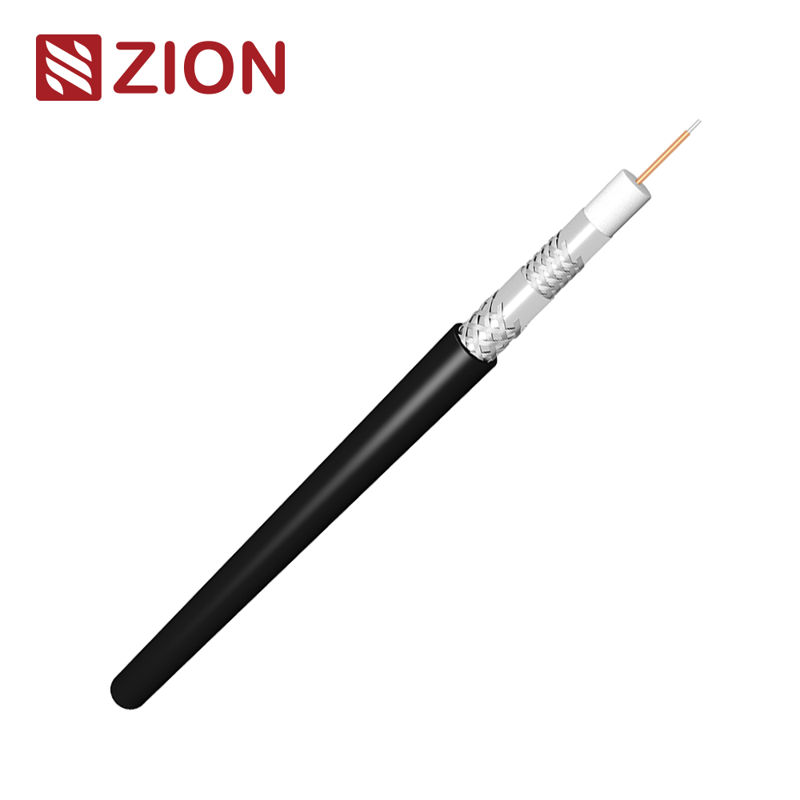

NO.7100031 RG6 Q Jelly PE

Construction Parameters:

Inner Conductor

0.040"/1.02mm/18AWG CCS

Dielectric

0.180"/4.57mm Foamed PE

Shield 1

0.187"/4.75mm Bonded Aluminum Polyproylene

Shield 2

Aluminum braid wire 60% coverage

Shield 3

Laminated Aluminum Tape(Non-Bonded)

Shield 4

Aluminum braid wire 40% coverage

Jacket

0.297"±0.006"/7.54±0.15mm Jelly PE

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  87 Ω/km

26.6Ω/1000ft

Capacitance

52 ±3 pF/m           15.9 ±0.9 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃ / (-40 ℃ to 80℃)

Cable diamensions

0.297"±0.006"/7.54±0.15mm PE

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.58

1.90

55

1.60

5.25

83

1.95

6.40

187

2.85

9.35

211

3.05

10.00

250

3.30

10.82

300

3.55

11.64

350

3.85

12.63

400

4.15

13.61

450

4.40

14.43

500

4.66

15.29

550

4.90

16.08

600

5.10

16.73

750

5.65

18.54

865

6.10

20.01

1000

6.55

21.49

Order Informations:

Marking

HELLOSIGNAL RG6 Q Jelly PE

CATV COAXIAL CABLE 7100031 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
