NO.7101132 7/8" H Radiating Leaky Cable

CABLE TYPE: RFXT 7/8”-50H(BHF)；HLRCTY(Z)-50-22H

Construction

Inner Conductor

copper tube

Ø 9.0 mm

Dielectric

Cellular polyethylene

Ø 23.2 mm

Outer Conductor

Copper foil

Ø 23.5 mm

Jacket

Black PE or Black LSZH

Ø 27.5 mm

Marking

Brand, cable type, cable ID, meter mark

Electrical Characteristics at +20℃

Characteristic impedance

50 ± 2 Ω

Velocity

0.88

Capacitance

76 pF/m

Insulation Resistantce

>5000 MΩ.km

Insulation Voltage

10000 V

Jacket Spark Test Voltage

8000 V

VSWR

Frequency (MHz)

 VSWR (Max)

790~960

1.3

1700~1900

1920~2025

1.4

2110~2200

2300~2500

2560~2620

MECHANICAL CHARACTERISTICS

Weigh

500kg/km

Maximum pulling force

1300N

Minimum bending radius

Single bending

250 mm

Repeated bending

300 mm

Operating temperature range

-40~ +80℃

Min. installation temperature

-20℃  (PE);
-5℃   (LSZH)

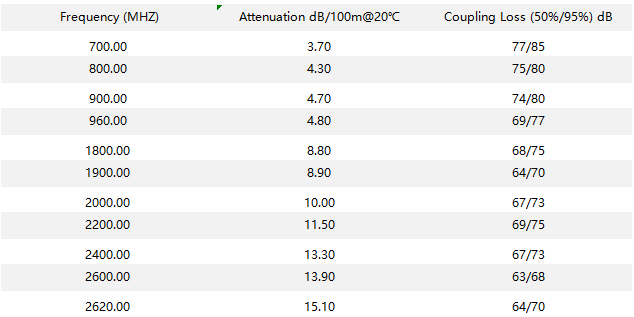

Attenuation and Coupling Loss

Frequency
(MHZ)

Attenuation
dB/100m
@20℃

Coupling Loss
(50%/95%)
 dB

700

3.7

77/85

800

4.3

75/80

900

4.7

74/80

960

4.8

69/77

1800

8.8

68/75

1900

8.9

64/70

2000

10.0

67/73

2200

11.5

69/75

2400

13.3

67/73

2600

13.9

63/68

2620

15.1

64/70

Note: Attenuation tolerance 5%; Coupling Loss tolerance ±5dB

Order Informations:

Marking

HELLOSIGNAL 7/8”Radiating Leaky Cable（H Band） ××× M

Package

Inquired Length on Wooden Drum and Pallet.

Brand

HELLOSIGNAL® OR OEM
