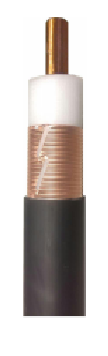

NO.7101136 1-5/8" H Radiating Leaky Cable

CABLE TYPE: RFXT 1 5/8”-50H(BHF)；HLRHTCY(Z)-50-42H

Construction

Inner Conductor

Corrugated copper tube

Ø 17.3±0.3 mm

Dielectric

Cellular polyethylene

Ø 43.0 mm

Outer Conductor

Copper foil

Ø 44.5 mm (Max)

Jacket

Black PE or Black LSZH

Ø 49.0 mm (Max)

Marking

Brand, cable type, cable ID, meter mark

Electrical Characteristics at +20℃

Characteristic impedance

50 ± 2 Ω

Velocity

0.88

Capacitance

76 pF/m

Insulation Resistantce

>5000 MΩ.km

Insulation Voltage

15000 V

Jacket Spark Test Voltage

10000 V

VSWR

Frequency (MHz)

 VSWR (Max)

790~960

1.30

1700~1900

1920~2025

1.40

2110~2200

2300~2500

2560~2620

MECHANICAL CHARACTERISTICS

Weigh

1000kg/km

Maximum pulling force

2500N

Minimum bending radius

Single bending

500 mm

Repeated bending

700 mm

Operating temperature range

-40~ +80℃

Min. installation temperature

-20℃  (PE);
-5℃   (LSZH)

Attenuation and Coupling Loss

Frequency
(MHZ)

Attenuation
dB/100m
@20℃

Coupling Loss
(50%/95%)
 dB

700

2.3

73/78

800

2.4

65/75

900

2.6

65/74

960

2.7

65/69

1800

4.3

62/67

1900

4.6

62/68

2000

4.9

63/66

2200

5.5

62/66

2400

6.3

60/65

2600

7.3

60/63

2620

8.1

61/65

Note: Coupling Loss tolerance ±5dB

Order Informations:

Marking

HELLOSIGNAL 1 5/8”Radiating Leaky Cable（H Band） ××× M

Package

Inquired Length on Wooden Drum and Pallet.

Brand

HELLOSIGNAL® OR OEM
