NO.7101134 1-1/4" H Radiating Leaky Cable

CABLE TYPE: RFXT 1 1/4”-50H(BHF)；HLRCTCY(Z)-50-32H

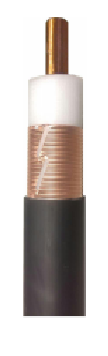

Construction

Inner Conductor

copper tube

Ø 13.1 mm

Dielectric

Cellular polyethylene

Ø 33.0 mm

Outer Conductor

Copper foil

Ø 34.0 mm

Jacket

Black PE or Black LSZH

Ø 37.5 mm

Marking

Brand, cable type, cable ID, meter mark

Electrical Characteristics at +20℃

Characteristic impedance

50 ± 2 Ω

Velocity

0.88

Capacitance

76 pF/m

Insulation Resistantce

>5000 MΩ.km

Insulation Voltage

10000 V

Jacket Spark Test Voltage

10000 V

VSWR

Frequency (MHz)

 VSWR (Max)

790~960

1.30

1700~1900

1920~2025

1.40

2110~2200

2300~2500

2560~2620

MECHANICAL CHARACTERISTICS

Weigh

780kg/km

Maximum pulling force

2000N

Minimum bending radius

Single bending

400 mm

Repeated bending

500 mm

Operating temperature range

-40~ +80℃

Min. installation temperature

-20℃  (PE);
-5℃   (LSZH)

Attenuation and Coupling Loss

Frequency
(MHZ)

Attenuation
dB/100m
@20℃

Coupling Loss
(50%/95%)
 dB

700

2.3

76/82

800

2.7

71/78

900

3.1

69/73

960

3.2

65/68

1800

5.0

66/72

1900

5.6

62/68

2000

5.8

67/72

2200

6.2

66/72

2400

7.8

64/71

2600

8.0

69/76

2620

8.3

68/76

Note: Attenuation tolerance 5%; Coupling Loss tolerance ±5dB

Order Informations:

Marking

HELLOSIGNAL 1 1/4”Radiating Leaky Cable（H Band）××× M

Package

Inquired Length on Wooden Drum and Pallet.

Brand

HELLOSIGNAL® OR OEM
