NO.7102005 RG6/U 2C 18AWG Common

  • RG6 2C

  • hellosignal

  • 7102005

  • Coaxial Cable

  • 75 ohm

  • UL, ETL, CE, RoHS

  • 100m, 305m,500m,1000m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 30KM

  • Normally 15 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

zion LOGORG6/U+2C18AWG Common

75 Ohm CCTV coaxial Cable

NO.7102005

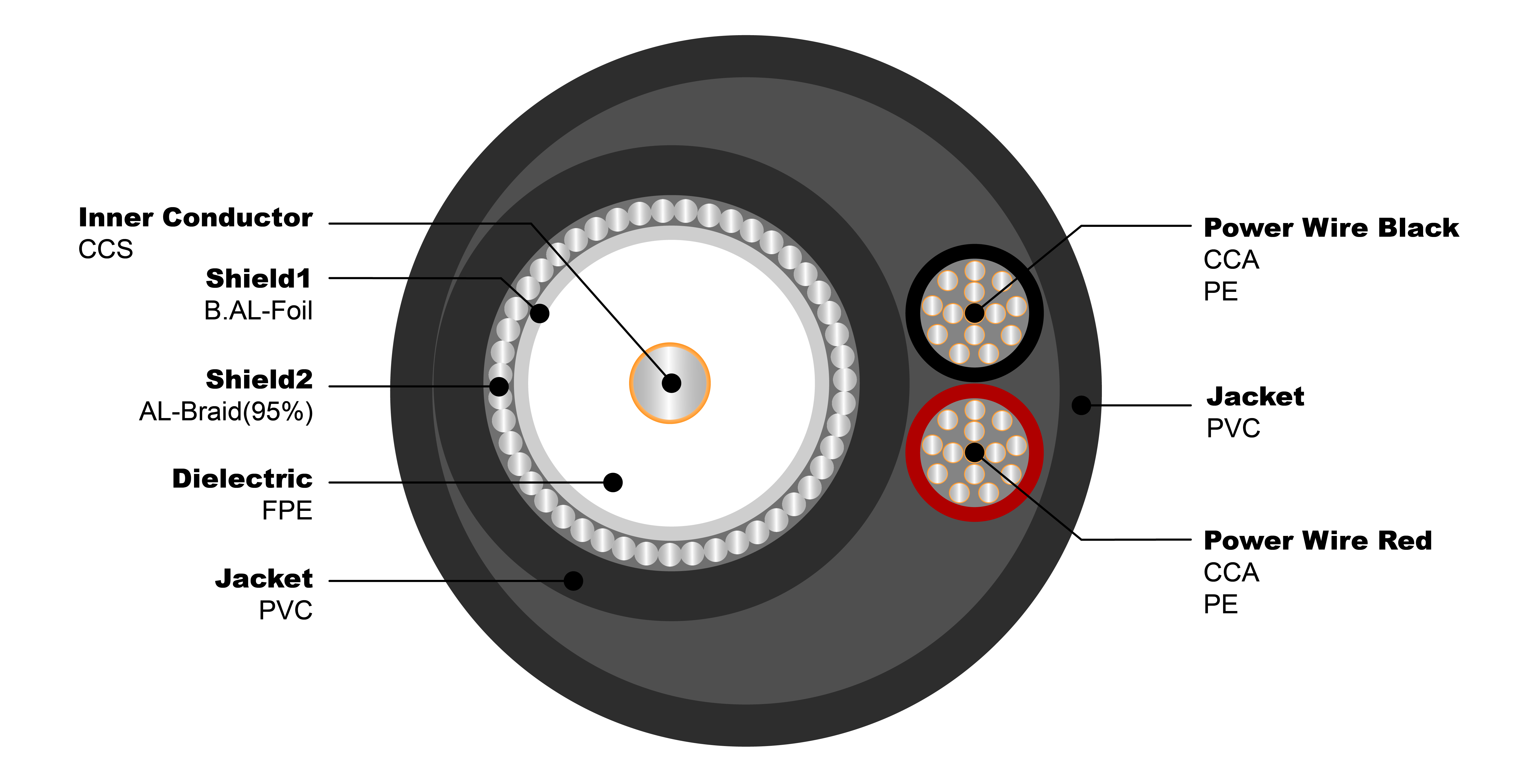

Construction Parameters:

Inner Conductor

1.02mm/0.04"/18AWG CCS

Dielectric

4.45mm/0.175"  Foamed PE

Shield 1

Bonded Aluminum Foil Shield

Shield 2

AL braid wire 95% coverage

Jacket

6.65mm PVC

Power Wire Conductor

2x18AWG/(16*0.254mm) CCA

Power wire Diameter of insulation

1.9mmPE/PVC(Red,Black)

Jacket

10.15mmPVC

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

The Max. at 20 shall be

<  87Ω/km (26.6 Ω/kft)

Capacitance

52 ±3 pF/m                  17±0.3 pF/ft


Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4



Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20  to 60

Cable diamensions

10.15mm



Cross Section


Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.58

1.90

55

1.60

5.25

83

1.95

6.40

187

2.85

9.35

211

3.05

10.00

250

3.30

10.82

300

3.55

11.64

350

3.85

12.63

400

4.15

13.61

450

4.40

14.43

500

4.66

15.29

550

4.90

16.08

600

5.10

16.73

750

5.65

18.54

865

6.10

20.01

1000

6.55

21.49


Order Informations:

Marking

HELLOSIGNAL RG6/U+2C18AWG Common
CCTV COAXIAL CABLE 7102005 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
