RG6 2C
hellosignal
7102006
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
75 Ohm CCTV coaxial Cable NO.7102006 | ||||
Construction Parameters: | ||||
Inner Conductor | 1.02mm/0.04"/18AWG Copper | |||
Dielectric | 4.45mm/0.175" Foamed PE | |||
Shield 1 | Bonded Aluminum Foil Shield | |||
Shield 2 | AL braid wire 95% coverage | |||
Jacket | 6.65mm PVC-CM | |||
Power Wire Conductor | 2x18AWG/(16*0.25mm)BC | |||
Power wire Diameter of insulation | 1.9mmPVC-CM(Red,Black) | |||
Jacket | 10.15mmPVC-CM | |||
Application | For Use in Longer CCTV Run Lengths | |||
Electrical Characteristics: | ||||
Inner Conductor Resistance | The Max. at 20℃ shall be < 21.2 Ω/km (6.96 Ω/kft) | |||
Capacitance | 52 ±3 pF/m 17±0.3 pF/ft | |||
Impedance | 75 ± 3 Ω | |||
Return loss | between 5 and 1000MHz: > 22dB | |||
Velocity of Propagation | 0.85 | |||
Sparker Test (VAC) | 4 | |||
Mechanical and Envrionmental Properties | ||||
Cable bend radius | 10 times the cable diameter | |||
Operating Temp Range | -20 ℃ to 60℃ | |||
Cable diamensions | 10.15mm | |||

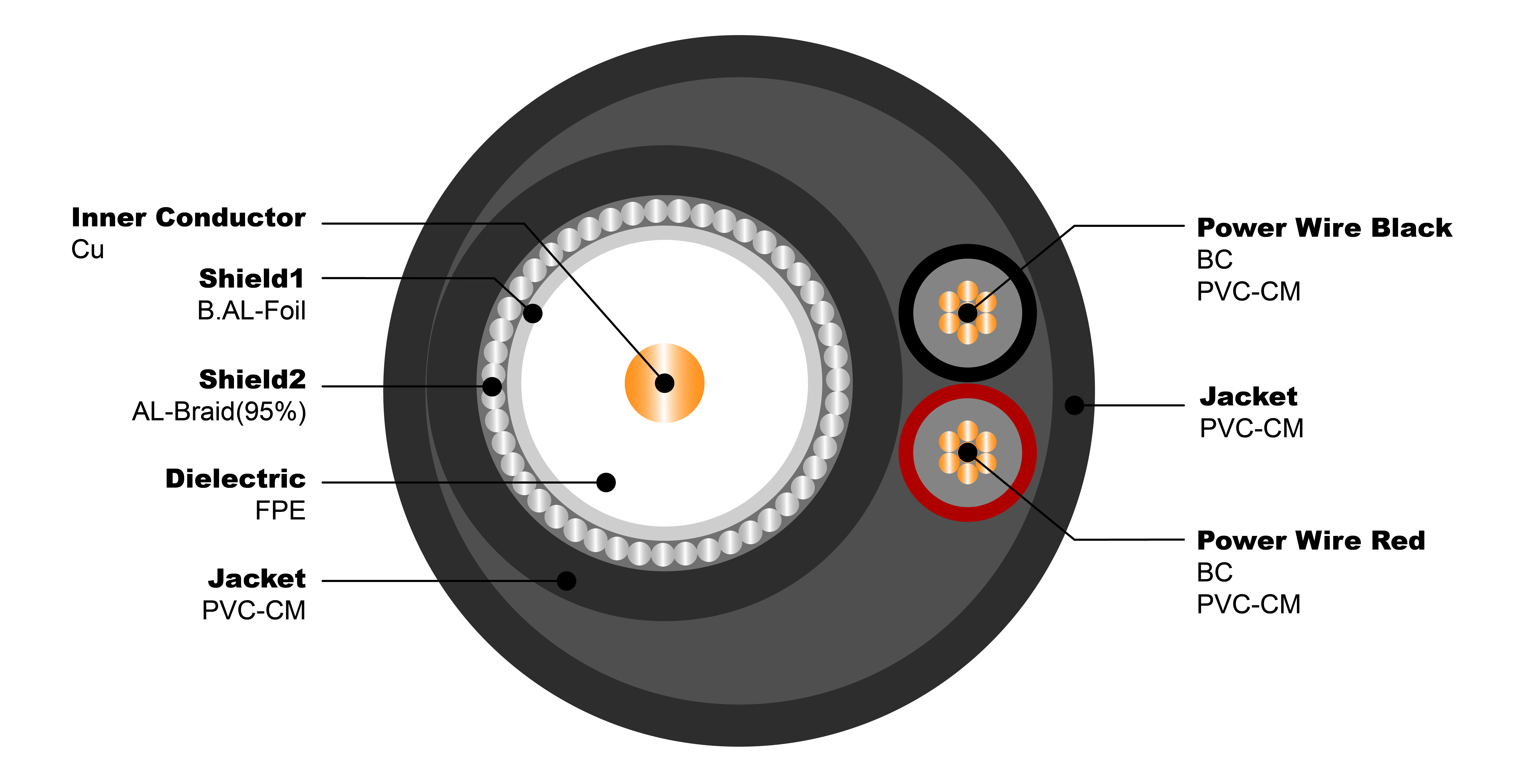

Cross Section | ||||
| ||||
Attenuation(20℃): | ||||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
5 | 0.58 | 1.90 | ||
55 | 1.60 | 5.25 | ||
83 | 1.95 | 6.40 | ||
187 | 2.85 | 9.35 | ||
211 | 3.05 | 10.00 | ||
250 | 3.30 | 10.82 | ||
300 | 3.55 | 11.64 | ||
350 | 3.85 | 12.63 | ||
400 | 4.15 | 13.61 | ||
450 | 4.40 | 14.43 | ||
500 | 4.66 | 15.29 | ||
550 | 4.90 | 16.08 | ||
600 | 5.10 | 16.73 | ||
750 | 5.65 | 18.54 | ||
865 | 6.10 | 20.01 | ||
1000 | 6.55 | 21.49 | ||
Order Informations: | ||||
Marking | HELLOSIGNAL RG6/U+2C18AWG CM Common | |||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNAL® OR OEM | |||
75 Ohm CCTV coaxial Cable NO.7102006 | ||||
Construction Parameters: | ||||
Inner Conductor | 1.02mm/0.04"/18AWG Copper | |||
Dielectric | 4.45mm/0.175" Foamed PE | |||
Shield 1 | Bonded Aluminum Foil Shield | |||
Shield 2 | AL braid wire 95% coverage | |||
Jacket | 6.65mm PVC-CM | |||
Power Wire Conductor | 2x18AWG/(16*0.25mm)BC | |||
Power wire Diameter of insulation | 1.9mmPVC-CM(Red,Black) | |||
Jacket | 10.15mmPVC-CM | |||
Application | For Use in Longer CCTV Run Lengths | |||
Electrical Characteristics: | ||||
Inner Conductor Resistance | The Max. at 20℃ shall be < 21.2 Ω/km (6.96 Ω/kft) | |||
Capacitance | 52 ±3 pF/m 17±0.3 pF/ft | |||
Impedance | 75 ± 3 Ω | |||
Return loss | between 5 and 1000MHz: > 22dB | |||
Velocity of Propagation | 0.85 | |||
Sparker Test (VAC) | 4 | |||
Mechanical and Envrionmental Properties | ||||
Cable bend radius | 10 times the cable diameter | |||
Operating Temp Range | -20 ℃ to 60℃ | |||
Cable diamensions | 10.15mm | |||
Cross Section | ||||
| ||||
Attenuation(20℃): | ||||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | ||
5 | 0.58 | 1.90 | ||
55 | 1.60 | 5.25 | ||
83 | 1.95 | 6.40 | ||
187 | 2.85 | 9.35 | ||
211 | 3.05 | 10.00 | ||
250 | 3.30 | 10.82 | ||
300 | 3.55 | 11.64 | ||
350 | 3.85 | 12.63 | ||
400 | 4.15 | 13.61 | ||
450 | 4.40 | 14.43 | ||
500 | 4.66 | 15.29 | ||
550 | 4.90 | 16.08 | ||
600 | 5.10 | 16.73 | ||
750 | 5.65 | 18.54 | ||
865 | 6.10 | 20.01 | ||
1000 | 6.55 | 21.49 | ||
Order Informations: | ||||
Marking | HELLOSIGNAL RG6/U+2C18AWG CM Common | |||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNAL® OR OEM | |||
RG6/U+2C18AWG CM Common
