NO.7102003 RG6/U 2C 18AWG CMR Figure 8

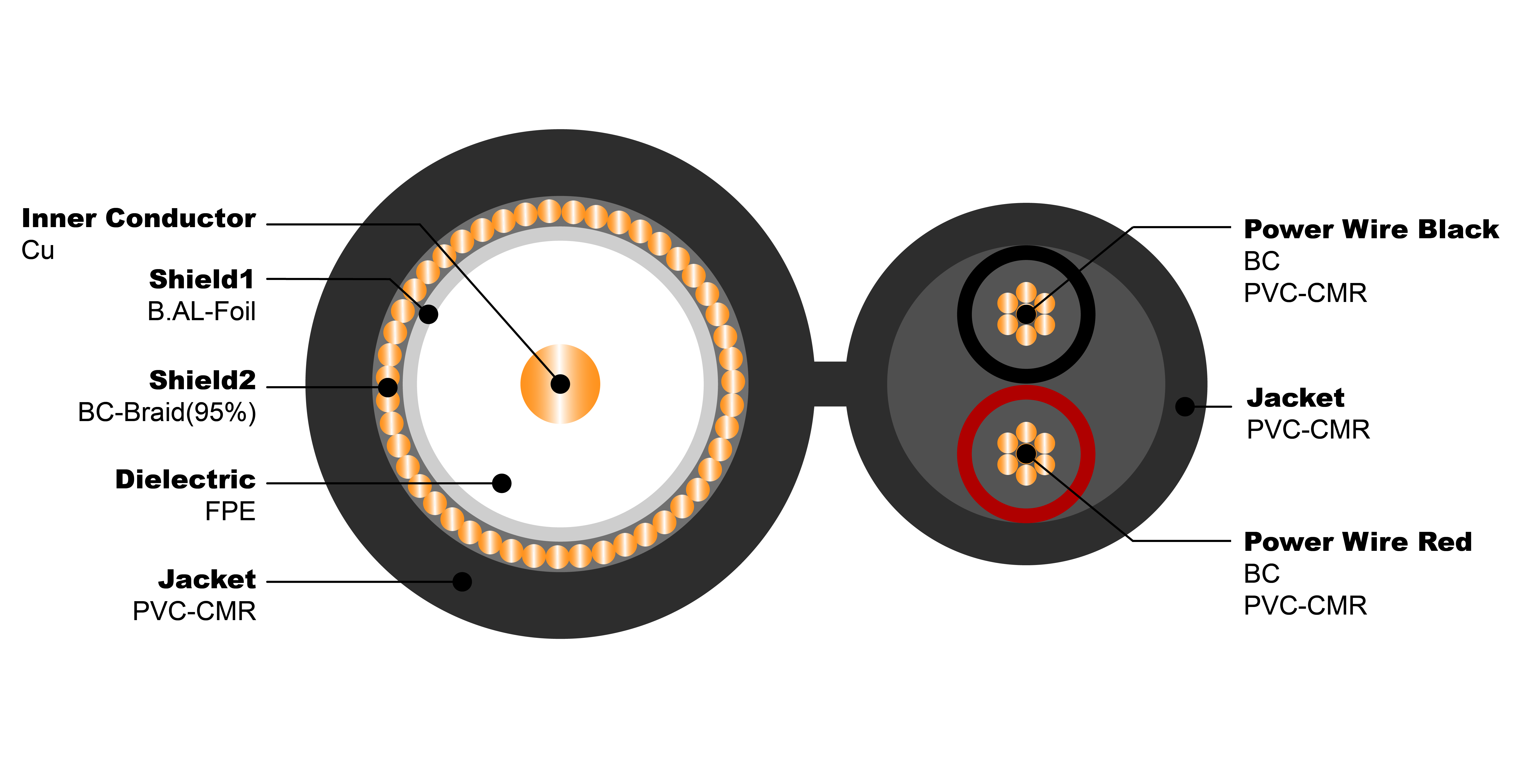

Construction Parameters:

Inner Conductor

1.02mm/0.04"/18AWG Copper

Dielectric

4.45mm/0.175"  Foamed PE

Shield 1

Bonded Aluminum Foil Shield

Shield 2

BC braid wire 95% coverage

Jacket

6.65mm PVC-CMR

Power Wire Conductor

2x18AWG/( 7*0.38 mm ) BC

Power wire Diameter of insulation

1.9mmPVC-CMR (Red,Black)

Jacket

5.05mmPVC-CMR

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

The Max. at 20℃ shall be

<  21.2 Ω/km (6.96 Ω/kft)

Capacitance

52 ±3 pF/m                  17±0.3 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 75℃

Cable diamensions

6.65×5.05mm

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.58

1.90

55

1.60

5.25

83

1.95

6.40

187

2.85

9.35

211

3.05

10.00

250

3.30

10.82

300

3.55

11.64

350

3.85

12.63

400

4.15

13.61

450

4.40

14.43

500

4.66

15.29

550

4.90

16.08

600

5.10

16.73

750

5.65

18.54

865

6.10

20.01

1000

6.55

21.49

Order Informations:

Marking

HELLOSIGNAL RG6/U+2C18AWG CMR Figure 8
CCTV COAXIAL CABLE 7102003 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
