Wall Mount Rack Cabinet
ZCSQ
Copper System
Normally 25 working days
NINGBO, SHANGHAI
SQ Wall Box | |||||||||
Technical Data | |||||||||
Materials: |
| ||||||||
· SPCC Cold Rolled Steel; | · others: 1.0mm | ||||||||
· Thickness: 19" rails: 1.2/1.5mm | |||||||||
Colour: | |||||||||
· ZCSQ ■■■■ ■■0■■: RAL7035 | |||||||||
· ZCSQ ■■■■ ■■1■■: RAL9004 | |||||||||
Loading Capacity: | |||||||||
· Static loading: 50KG. | |||||||||
COMPLIANCE （Reference Standard） | |||||||||
· Comply with ANSI/EIA RS-310-D | |||||||||
· IEC60297-2 | |||||||||
· DIN41494;PART1; DIN41494;PART7. | |||||||||
May Installs The Fitting: | |||||||||
|
|
|
| ||||||
· Circular threading hole (Ø50MM) | · Cantilever shelf | · Blanking panel | · Cooling fan | ||||||

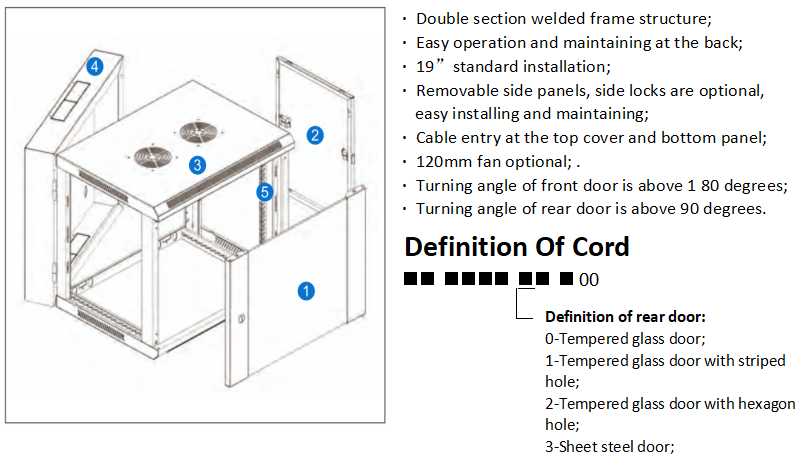

Feature | |||||||||
 | |||||||||
Main Part | |||||||||
S/N | Specification | Qty | Material | Surface Finish | Remark | ||||
1 | Frame | 1 | SPCC t1.0 | Powder coated | ····· | ||||
2 | Side panel | 2 | SPCC t1.0 | Powder coated | ····· | ||||
3 | Front door | 1 | 5MM toughed glass | ····· | ····· | ||||
4 | 19" rails | 4 | SPCC t1.2/1.5 | Powder coated | <15U Thinkness : 1.2mm | ||||
A | M6 screw&nuts | 10 | Steel | Color zinc | 20pcs for over 12U | ||||
B | Trox tooling | 1 | Steel | Black | ····· | ||||
Order Information: | |||||||||
Model No. | RU | Width | Depth(D) | Height(H)(mm) | Packing dimension(mm) | ||||
ZCSQ.5406.SQSS | 6 | 540 | 450 | 315 | 560*470*330 | ||||
ZCSQ.5606.SQSS | 600 | 560*620*330 | |||||||
ZCSQ.5409.SQSS | 9 | 540 | 450 | 450 | 560*470*470 | ||||
ZCSQ.5609.SQSS | 600 | 560*620*470 | |||||||
ZCSQ.5412.SQSS | 12 | 540 | 450 | 580 | 560*470*600 | ||||
ZCSQ.5612.SQSS | 600 | 560*620*600 | |||||||
ZCSQ.5415.SQSS | 15 | 540 | 450 | 715 | 560*470*730 | ||||
ZCSQ.5615.SQSS | 600 | 560*620*730 | |||||||
ZCSQ.5420.SQSS | 20 | 540 | 450 | 935 | 560*470*950 | ||||
ZCSQ.5425.SQSS | 25 | 600 | 1160 | 560*470*1180 | |||||
