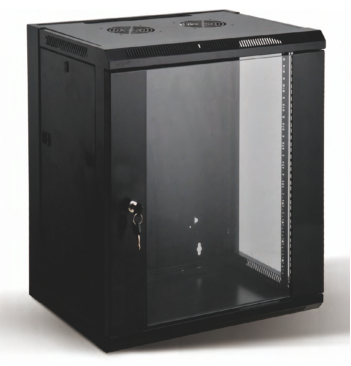

SE Wall Mount Rack Cabinet

 Technical Data

  Materials:

 · SPCC Cold Rolled Steel;

 · others: 1.2mm.

 · Thickness: Mounting profile: 1.2/1 .5mm;

 Colour:

  · ZCTE.■■■■ ■■0■■: RAL7035

  · ZCTE.■■■■ ■■1■■: RAL9004

 Loading Capacity:

  · Static loading: 60KG.

 COMPLIANCE （Reference Standard）

· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.

 Feature

· Flat packing and patent frame, packing time is less than 5

  minutes, around 1/3~ 1/4 assembled original volume

  when flat pack.

· Cable entry on both of top cover and bottom panel.

· Steel front door, opening direction of door can be changed,

  turning angle of front door is over 180 degrees.

· Different optional style of doors

· Wall mounted panel, convenience for installation, locked

  from inside with screw, avoiding to be stolen or

  accidentally dropped.

· Flat side panel, easy installation.

· Installation depth of mounting profile can be available

  changed.

· 19"standard installation.

 May Installs The Fitting

· Threading hole with brush

· Circular threading hole (Ø50MM)

· Cantilever shelf

· Cable management

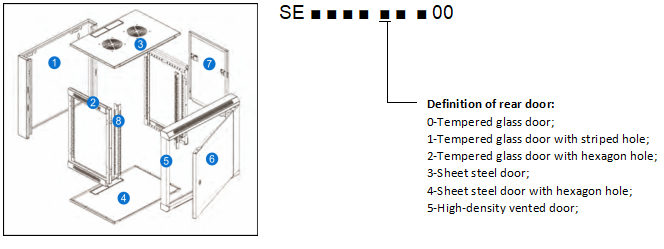

 Definition Of Cord

 Main Part

S/N

Specification

Qty

Material

Surface Finish

Remark

1

Back frame

1

SPCC t1.0

Powder coated

·····

2

Side frame

2

SPCC t1.0

Powder coated

·····

3

Top cover

1

SPCC t2.0

Powder coated

·····

4

Bottom

1

SPCC t1.0

Powder coated

·····

5

Front frame

1

SPCC t1.0

Powder coated

See next page

6

Front door

1

5MM toughed glass
 door/SPCC t1.2

Powder coated

Available on request

7

Side panel

2

·····

Powder coated

·····

8

19"rails

2

SPCC t1.0

Powder coated

<15U Thinkness : 1.2mm
>= 15U Thinkness:1.5mm

A

M6 screw & nuts

10

Steel

Color zinc

20pcs for over 12U

B

Trox tooling

1

Steel

Black

·····

 Specification:

Part Number.

RU

 Width
(mm)

Depth(D)
(mm)

Height(H)(mm)

Volume
(CBM)

20GP
(PCS)

40GP
(PCS)

CKD
packing part

ZCSE.5406.SESC

6

570

450

370

0.04317

672

1297

1

ZCSE.5606.SESC

600

0.05353

542

1046

2

ZCSE.5409.SESC

9

570

450

500

0.05117

567

1094

1

ZCSE.5609.SESC

600

0.05757

504

973

1

ZCSE.5412.SESC

12

570

450

635

0.06397

453

875

1

ZCSE.5612.SESC

600

0.06397

453

875

1

ZCSE.5415.SESC

15

570

450

770

0.0768

378

729

1

ZCSE.5615.SESC

600

0.0768

378

729

1

ZCSE.5418.SESC

18

570

450

900

0.0896

324

625

1

ZCSE.5618.SESC

600

0.0896

324

625

1

ZCSE.5422.SESC

22

570

450

1080

0.1067

272

525

1

ZCSE.5622.SESC

600

0.1067

272

525

1

ZCSE.5427.SESC

27

570

450

1305

0.1280

227

438

1

ZCSE.5627.SESC

600

0.1280

227

438

1

Suggestion: For overload reason, we don't suggest SE wall mount cabinet to be fully loaded on 40HQ container.

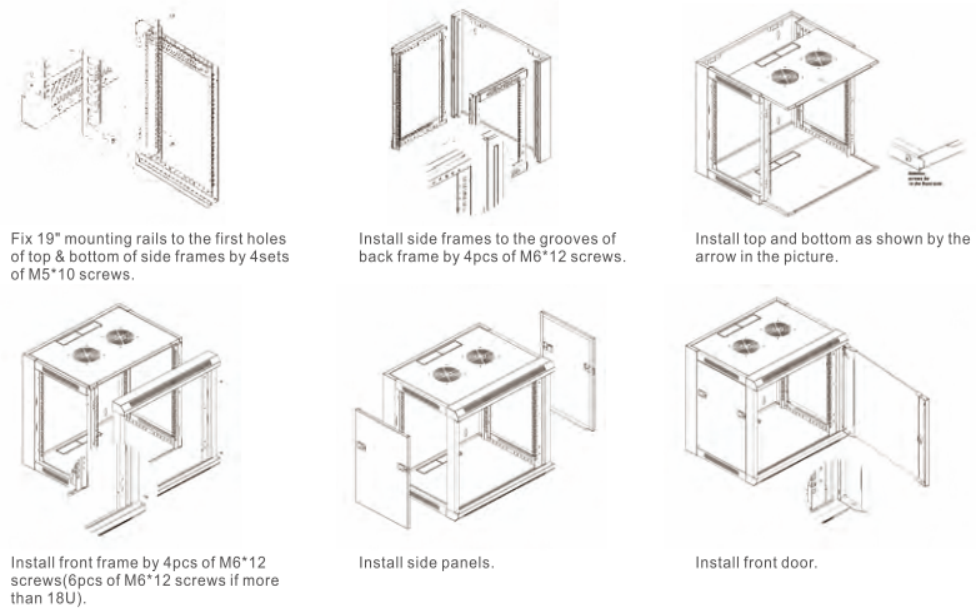

 Assembling Draft
