The Basics of RJ45 and 8P8C Connectors

Author: Site Editor     Publish Time: 13-02-2020      Origin: Site

RJ45 vs 8P8C Connectors: Differences, Pinouts, and Selection

RJ45 is the familiar industry name for the eight-contact modular connector used in Ethernet cabling. 8P8C describes its physical contact arrangement, while T568A and T568B define how the four cable pairs are assigned to those contacts.

In everyday networking, the terms RJ45 connector and 8P8C modular connector usually point to the same Ethernet plug-and-jack format. The names are not exact synonyms, however. “8P8C” identifies eight positions and eight electrical contacts, whereas “RJ45” originated in the registered-jack system and is now widely used as practical industry shorthand for Ethernet modular connectors.

For an installation to work reliably, terminology is only the starting point. The plug must match the cable category, conductor type, conductor size, overall cable diameter, shielding method, and chosen T568A or T568B wiring scheme.

■What Do RJ45 and 8P8C Mean?

8P8C means “eight positions, eight contacts.” It describes the modular interface used by common copper Ethernet patch cords and outlets. The plug has eight contact positions, and all eight are populated.

RJ45 means “Registered Jack 45.” The historical registered-jack specification referred to a keyed telephone interface and a particular wiring arrangement. The unkeyed 8P8C connector adopted for Ethernet looks similar, so “RJ45” became the dominant commercial name. Today, product catalogs, equipment manuals, installers, and buyers commonly use RJ45 for Ethernet 8P8C plugs and jacks.

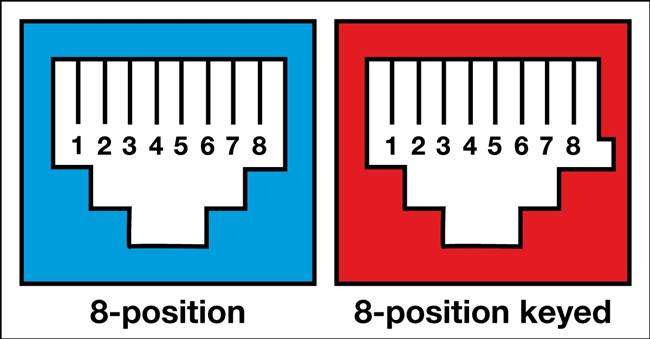

Unkeyed 8P8C interface compared with a keyed eight-position registered jack

The historical keyed registered-jack outline differs from the unkeyed 8P8C format commonly used for Ethernet.

■RJ45, 8P8C, and Ethernet: The Practical Difference

Term What it tells you
8P8C The connector has eight positions and eight contacts. This describes the interface layout, not the cable category or guaranteed link performance.
RJ45 The common market name for the Ethernet modular plug or jack. Historical registered-jack usage was more specific.
T568A / T568B The pair-to-pin wiring schemes used for balanced twisted-pair cabling. They do not identify the connector category by themselves.

A connector can be physically 8P8C and still be unsuitable for a particular cable. Category rating, contact design, conductor compatibility, shielding, and termination quality all affect the completed channel. When ordering, use the familiar term RJ45 if it improves communication, but confirm the actual plug and cable specifications.

■T568A and T568B Wiring Pinouts

T568A and T568B use the same blue pair on pins 4 and 5 and the same brown pair on pins 7 and 8. The difference is that the green and orange pairs exchange positions on pins 1, 2, 3, and 6. Either scheme can support a correctly designed balanced cabling channel; the important rule is to follow the project specification and remain consistent.

Pin T568A T568B
1 White/Green White/Orange
2 Green Orange
3 White/Orange White/Green
4 Blue Blue
5 White/Blue White/Blue
6 Orange Green
7 White/Brown White/Brown
8 Brown Brown

Using the same scheme at both ends produces a straight-through cable. Using T568A at one end and T568B at the other produces a crossover cable. Many modern Ethernet interfaces can automatically correct transmit and receive pair orientation, but structured cabling should still be terminated and documented consistently.

Important: A basic wire-map pass confirms conductor order and continuity, but it does not prove that an installed link meets a category performance limit. Certification requires suitable test equipment and the correct permanent-link or channel test configuration.

■How to Choose the Right RJ45 Modular Plug

Choose the plug from the cable construction outward. A physically fitting plug is not automatically the correct plug. Confirm the following details before ordering or terminating:

  • Cable category: Match the plug rating to the cable and intended channel design, such as Category 5e, Category 6, or Category 6A.

  • Conductor construction: Verify whether the contacts are designed for solid, stranded, or both conductor types.

  • Conductor and insulation size: Check supported conductor gauge, insulation diameter, and overall cable diameter.

  • Shielding: Use a shielded plug only as part of a properly designed shielded cabling system with suitable cable, outlets, bonding, and equipment interfaces.

  • Termination style: Standard, pass-through, and field-termination plugs require different tools and preparation methods.

  • Application conditions: Confirm bend, pull, vibration, environmental, and power-delivery requirements with the product documentation.

ZION provides a range of Ethernet modular plugs, including a Cat 6 UTP 8P8C modular plug. Use the product page as a starting point, then confirm compatibility with the exact cable construction and installation method.

■Termination and Inspection Checklist

  1. Confirm the plug is approved for the cable category, conductor type, conductor size, insulation diameter, and jacket diameter.

  2. Select T568A or T568B according to the project specification and existing installation.

  3. Orient the plug correctly before arranging conductors; pin 1 changes sides when the plug is viewed from the opposite face.

  4. Keep each pair twisted as close as practical to the termination point and follow the connector manufacturer's preparation limits.

  5. Seat every conductor fully and make sure the jacket is captured by the strain-relief area where the plug design requires it.

  6. Crimp with the correct tool and inspect the contacts, conductor ends, strain relief, and locking tab.

  7. Test the completed cable with a wire-map tester, then use appropriate certification testing when category compliance must be demonstrated.

■Common RJ45 Connector Problems

Broken locking tab: The plug may no longer stay securely seated. A snagless boot can protect the tab, but a damaged plug should normally be replaced.

Wrong conductor order: A reversed pair or mixed T568A/T568B termination changes the wire map. Check pin orientation and both cable ends.

Split pair: Continuity can appear correct even when conductors from different twisted pairs are combined. The cable may fail under network traffic because the intended pair geometry has been lost.

Plug and cable mismatch: Contacts intended for stranded conductors may not terminate solid conductors correctly, and oversized insulation or cable jackets may prevent proper seating and strain relief.

Excessive pair untwist: Removing too much twist near the plug can degrade transmission performance. Follow the plug manufacturer's instructions and preserve pair geometry.

■Frequently Asked Questions

Is RJ45 the same as 8P8C?

In modern Ethernet purchasing and installation, RJ45 usually means an 8P8C modular connector. Technically, 8P8C describes the physical contact arrangement, while the historical RJ45 registered-jack designation referred to a keyed interface and a specific wiring application.

Should I use T568A or T568B?

Use the scheme required by the project specification or already used in the installation. Both are recognized wiring schemes. Consistency, correct pair placement, and documentation matter more than choosing one without project context.

Can any RJ45 plug be used with any Ethernet cable?

No. Confirm cable category, solid or stranded conductor construction, conductor gauge, insulation diameter, cable diameter, shielding, and the plug manufacturer's supported termination method.

Does a passed continuity test prove Category 6 performance?

No. A continuity or wire-map test can identify opens, shorts, reversals, and some pairing errors, but category performance must be verified with appropriate certification testing and a compliant channel design.
