Why PoP Standardization Matters
Carrier, ISP, IXP and interconnection networks operate multiple PoPs with different rack constraints, cable-entry conditions and interface conventions. A repeatable kit provides a controlled baseline while keeping route-specific decisions open.
Reference Topology

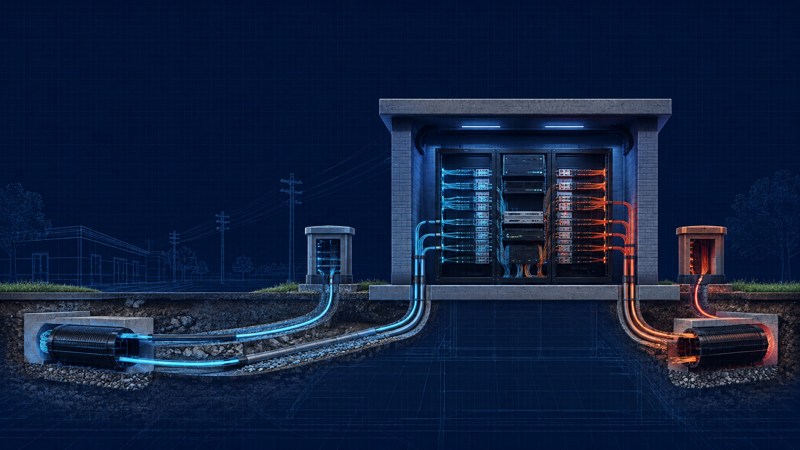

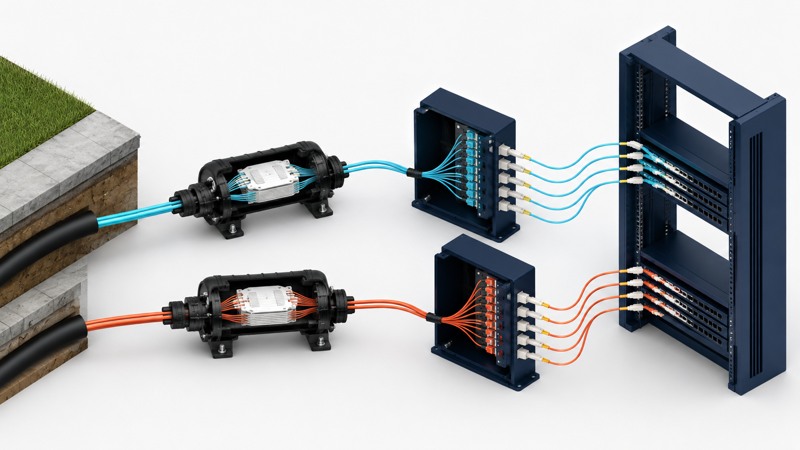

The reference path is OSP Route A to splice closure, ODF or cross-connect, OS2 patch field and carrier equipment. Route B should mirror the architecture through an independent entry, termination range and documented route identity.
Configurable Kit Levels
| Kit Level | Suggested Passive Capacity | Typical Application | Expansion Logic |
|---|---|---|---|
| Compact PoP | 24F OSP and termination. | Small edge PoP or enterprise carrier handoff. | Reserve tray and panel capacity. |
| Standard PoP | 48F or 96F OSP, closure and rack ODF. | Metro PoP, ISP node or multi-carrier handoff. | Separate service and spare fibers. |
| Diverse PoP | Mirrored Route A/B cable, closure, termination and patching. | Resilience-focused interconnection. | Independent IDs, packaging, ports and reports. |
| High-Capacity Cross-Connect | 144F/288F cabinet or structured distribution direction. | Campus or regional aggregation. | Modular growth and documented port ownership. |
Recommended Product BOM
| BOM Module | Product URL | Selection Variables | Verification Required |
|---|---|---|---|
| Duct route | Duct Fiber Optic Cable | 12-288F, G.652.D/G.657, armour, water blocking, OD and drum length. | Duct ID, pulling tension, moisture and route length. |
| Buried route | Direct-Buried Fiber Optic Cable | Armour, sheath, crush, tensile and fiber count. | Soil, burial method, mechanical and water evidence. |
| Microduct route | Air-Blown Micro Cable | Cable OD, fiber count, blowing length and microduct compatibility. | Microduct ID, route bends and blowing equipment. |
| Splice protection | 24/48F Vertical Splice Closure ZC-FV101M | Port count, cable OD, splice capacity and mounting. | Topology, entry seals, re-entry and environment. |
| ODF / cross-connect | Fiber Optic System & Cross-Connect Cabinets | Rack/wall/cabinet, 24-288F direction, LC/SC and UPC/APC. | Rack space, access, security and location. |
| Patch field | OS2 Fiber Patch Cables | LC-LC/LC-SC, UPC/APC, simplex/duplex, length and color. | Equipment interface and loss budget. |

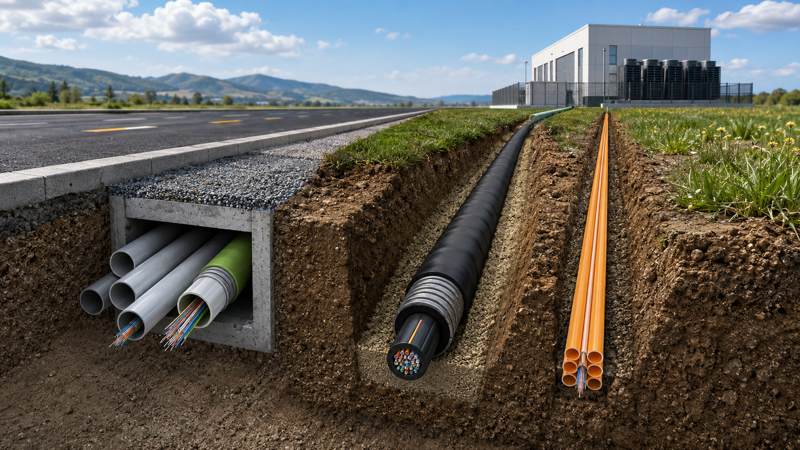

Cable Selection by Route
Duct routes require duct ID, occupancy, bend count, pulling distance and water exposure. Direct-buried routes require documented burial suitability. Air-blown microduct routes require cable OD, microduct ID and blowing distance compatibility.
Closure, ODF and Cross-Connect Planning
Closure selection should confirm topology, cable port range, splice count, tray capacity, sleeve compatibility, strength-member anchoring, sealing, re-entry and mounting method. ODF planning should confirm form factor, spare capacity, interface, polish, access and label format.

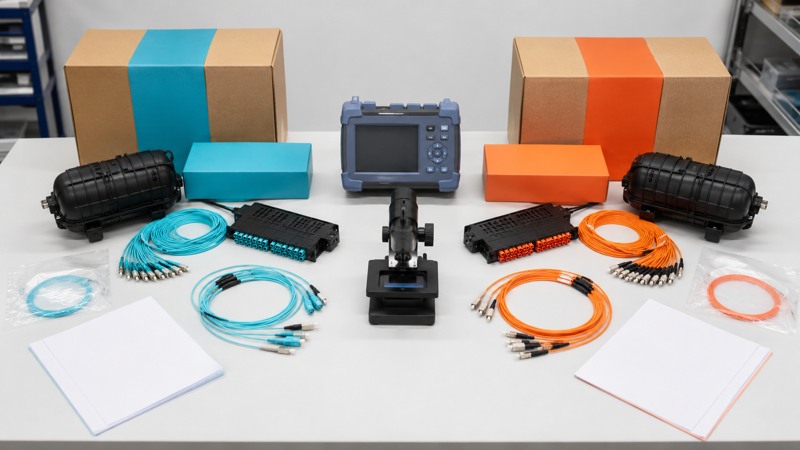

Route A / Route B Material Control
| Control Point | Route A | Route B |
|---|---|---|
| Cable and drum ID | Unique A-series ID. | Unique B-series ID. |
| Packaging | Independent cartons or pallet list. | Independent cartons or pallet list. |
| Closure / entry | Defined A location. | Defined B location. |
| ODF ports | Dedicated range. | Dedicated range. |
| Test report | Separate result set. | Separate result set. |
FAQ
What fiber count should a carrier PoP use?
Calculate day-one services, diverse links, dark-fiber reserve, maintenance reserve and planned expansion. Then confirm that the closure, ODF and cable ports support the same capacity.
Can one closure serve Route A and Route B?
It may be physically possible, but it can introduce a shared failure point. The resilience design authority should decide whether route separation requires independent closures and entries.
Should a PoP use LC/UPC or LC/APC?
Use the interface required by the active equipment and network standard. UPC and APC must not be mixed.
What spares should be included?
Typical spares may include approved patch cords, adapters, pigtails, splice trays, entry-seal parts and cleaning or test consumables.
Standardize Your Next Carrier PoP
Send route type, fiber count, cable length, closure topology, ODF interface, A/B separation rule and acceptance requirement. ZION can organize matched passive products into a reviewable PoP BOM.
