Why Use a Kit Instead of Individual Components
Subscriber installation teams work with different route lengths, building types and attachment points. A kit-based approach makes cable, connector, clamp and box compatibility repeatable.

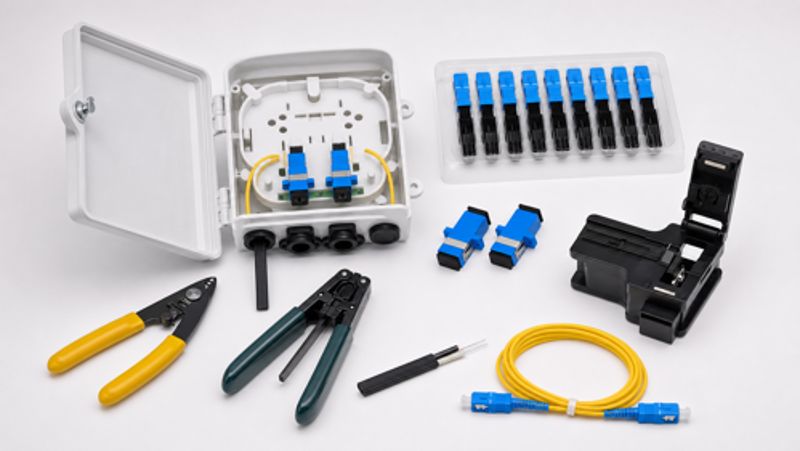

Three Standard Kit Families
G.657.A2 indoor flat or round drop cable, subscriber socket, SC/APC fast connector or factory-terminated drop patch cord, and indoor routing accessories.

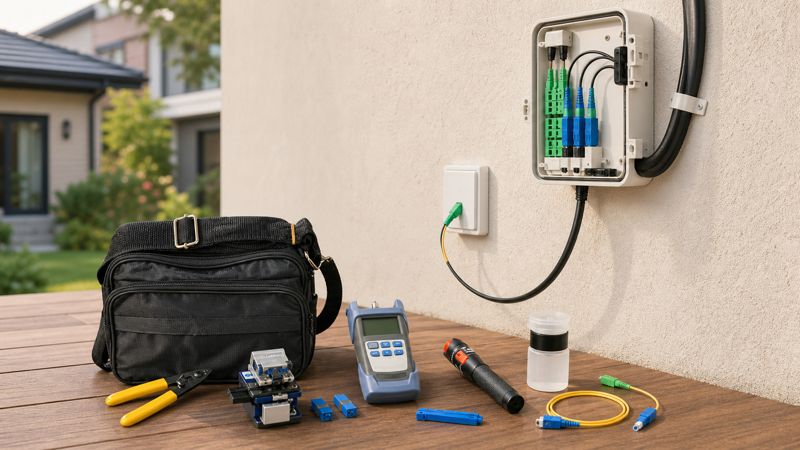

Self-supporting drop cable, matched clamp, hook or bracket, outdoor terminal box, and connector or pre-terminated patch direction.
Short approved cable lengths, fast connectors, small protection box, patch cords, VFL/OPM accessories, cleaning items and replenishment control.
Product families organized by cable route, connector polish, carton-level SKU logic and reorder structure.
Configurable Packaging Levels
| Pack | Suggested Scope | Packaging Logic | Typical Buyer |
|---|---|---|---|
| Single Subscriber | Cable, box/socket, connector, patching and fittings. | One installation per sealed pack. | Installer or operator rollout. |
| 10-Subscriber Team Pack | Ten installation sets plus approved shared tools and spares. | Separate consumables from reusable tools. | Contractor team. |
| 25-Subscriber Maintenance Pack | Repair lengths, connectors, small boxes, patch cords and test accessories. | Vehicle inventory with replenishment list. | Maintenance provider. |
| Distributor Stock Pack | Product families organized by cable route and connector polish. | Carton-level SKU and reorder structure. | Telecom distributor. |
Recommended Product BOM
| BOM Module | Product URL | Key Options | Matching Rule |
|---|---|---|---|
| Drop cable family | FTTH Drop Cable Series | Flat/round/self-supporting, 1-4F, G.657.A1/A2, FRP/steel, LSZH/PE. | Select by route, span, bend, fire boundary and termination method. |
| Indoor drop | GJXFH-2 FTTH Drop Cable | Flat drop construction and project-specific length. | Confirm fiber count, strength member, sheath and route. |
| Aerial drop | GJYXCH 2.0x5.2 mm Self-Supporting Drop Cable | Messenger, G.657 direction, length and outdoor route. | Match span, attachment and clamp dimensions. |
| Outdoor distribution | 8F IP65 Distribution Box ZC-FD226 | 8-core direction, cable ports and adapter configuration. | Match feeder/drop cable OD, splice/split method and mounting. |
| Field connector | SC/APC Fast Assembly Connector | SC/APC, cable/fiber preparation and reuse conditions. | Connector polish must match adapter and ONT interface. |
| Aerial support | Stainless Steel Flat Drop Cable Clamp and FTTH Hook ZCHK-04 | Cable shape, dimensions, messenger, span and mounting surface. | Verify cable compatibility and mechanical load. |
Drop Cable Selection Rules
G.657.A1/A2 bend-insensitive fiber is commonly considered for subscriber routes with tighter bends than outside-plant backbone cable. Strength member, cable shape and jacket should be selected by route, fire boundary, outdoor exposure and attachment method.
Aerial Hardware Matching
The clamp and hook are part of a mechanical system. Confirm cable diameter, shape, messenger construction, span, expected tension, wind or ice condition, corrosion environment and mounting substrate.
Testing and Field Restoration Logic
Suggested records include subscriber ID, distribution-box port, cable type and length, connector polish, optical power or insertion-loss result, VFL continuity check, route inspection, photos and completion date.
FAQ
What should a basic FTTH installation kit include?
At minimum, it normally requires a matched drop cable, termination point, connector or patch cord and route-specific fixing accessories. Testing and labeling requirements should also be defined.
Should the kit use a fast connector or fusion splice?
Use the operator-approved termination method. Fast connectors can reduce the need for fusion equipment, while fusion-spliced pigtails may offer a different maintenance and performance model.
Can one clamp fit every flat drop cable?
No. Cable dimensions, messenger, material and mechanical load must match the clamp design.
What is the difference between an installation kit and a restoration kit?
An installation kit is packaged per new subscriber or crew. A restoration kit emphasizes compatible repair lengths, connectors, small boxes, patching, test accessories and replenishment control.
Build a Repeatable FTTH Drop Package
Send route type, cable length, connector polish, box capacity, aerial-hardware requirement and subscriber quantity. ZION can organize available products into a per-subscriber or team-pack BOM.
Request Project Support
