7*0.102mmSPCCS+0.86mmPTFE+48×0.10mmSPC+1.80mmFEP
hellosignal
7101211
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
RG 178（NO.7101211） | ||
Construction Parameters: | ||
Inner Conductor | 7/0.102±0.01mm Silver Plated Copper Clad Steel | |
Dielectric | 0.86 ±0.05mm PTFE （White) | |
Shield 1 | 16×3×0.10mm Silver Plated Copper | |
Density of braiding: 96% ± 3% | ||
Jacket | 1.80±0.10mm FEP （Natural Brown) | |
Standard | MIL-C-17 | |
Electrical Characteristics: | ||
Capacitance | 100±5 pF/m |
|
Impedance | 50 ±2 Ω | |
Velocity of Propagation | 70% | |
Max Operating Voltage | 750 VMS | |
Max Operating Frequency | 3000 MHz | |
Mechanical and Envrionmental Properties： | ||
Cable bend radius | 10 mm | |
Operating Temp Range | -55 ℃ to 200℃ | |
Installation Temp Range | -5 ℃ to 20℃ | |

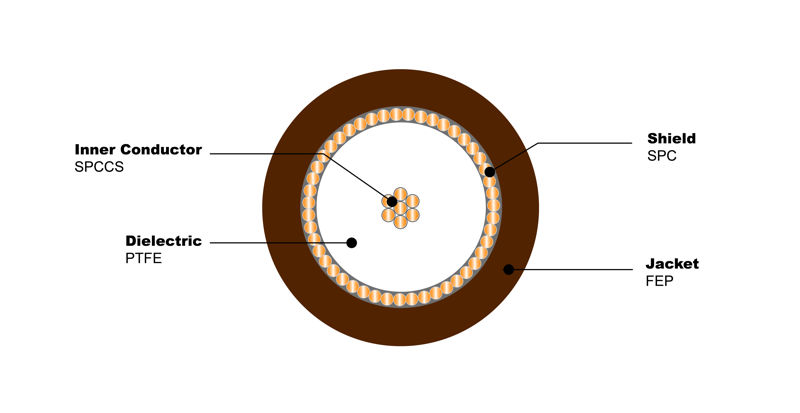

Cross Section： | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation (dB/100m) | |
100 | 45.30 | |
400 | 91.20 | |
1000 | 145.70 | |
3000 | 257.20 | |
Order Informations: | ||
Marking | HELLOSIGNAL 178 | |
Package | 100M,300M,500M | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNALTM OR OEM | |
