7*0.10mmSPCCS+2.59mmPTFE+112×0.10mmSPC+3.56mmFEP
hellosignal
NO.7101226
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
RG180（NO.7101226） | ||
Construction Parameters: | ||
Inner Conductor | 7/0.10±0.01mm Silver Plated Copper Clad Steel | |
Dielectric | 2.59mm PTFE （White) | |
Shield 1 | 16×7×0.10mm Silver Plated Copper | |
Density of braiding: 91% ± 3% | ||
Jacket | 3.56±0.10mm FEP （Natural Brown) | |
Standard | MIL-C-17 | |
Electrical Characteristics: | ||
Capacitance | 51±5 pF/m |
|
Impedance | 75 ±3 Ω | |
Velocity of Propagation | 70% | |
Max Operating Voltage | 1500 VMS | |
Max Operating Frequency | 400 MHz | |
Mechanical and Envrionmental Properties： | ||
Cable bend radius | 10 mm | |
Operating Temp Range | -55 ℃ to 200℃ | |
Cable diamensions | 2.54±0.10mm | |

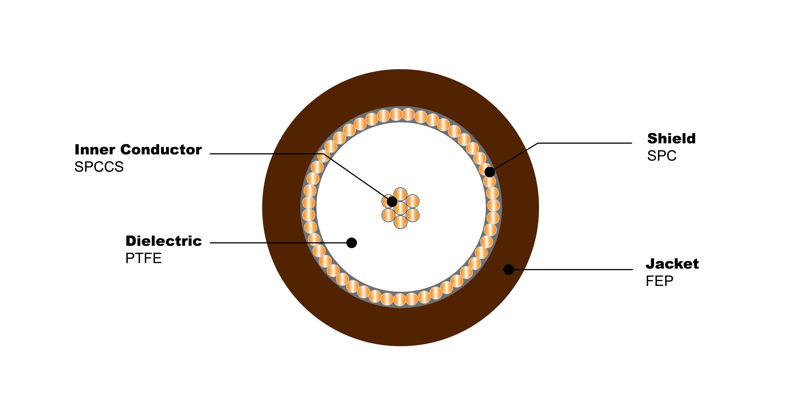

Cross Section： | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation (dB/100m) | |
100 | 20.70 | |
400 | 42.00 | |
1000 | 67.60 | |
Order Informations: | ||
Marking | HELLOSIGNAL RG180 | |
Package | 100M,300M,500M | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNALTM OR OEM | |
