RG 304（NO.7101219）

■ Construction Parameters:

Inner Conductor: 1/1.50 ± 0.01 mm Silver Plated Copper Clad Steel

Dielectric: 4.70 ± 0.05 mm PTFE (White)

Shield 1: 24 × 5 × 0.15 mm Silver Plated Copper

Density of Braiding: 95% ± 3%

Shield 2: 24 × 6 × 0.15 mm Silver Plated Copper

Density of Braiding: 95% ± 3%

Jacket: 7.11 ± 0.10 mm FEP (Natural Brown)

Standard: MIL-C-17

■ Electrical Characteristics:

Capacitance: 96 ± 5 pF/m (RG 304 NO.7101219)

Impedance: 50 ± 2 Ω

Velocity of Propagation: 70%

Max Operating Voltage: 3000 VMS

Max Operating Frequency: 12000 MHz

■ Mechanical and Environmental Properties:

Cable Bend Radius: 36 mm

Operating Temperature Range: -55 ℃ to 200 ℃

Installation Temperature Range: -5 ℃ to 20 ℃

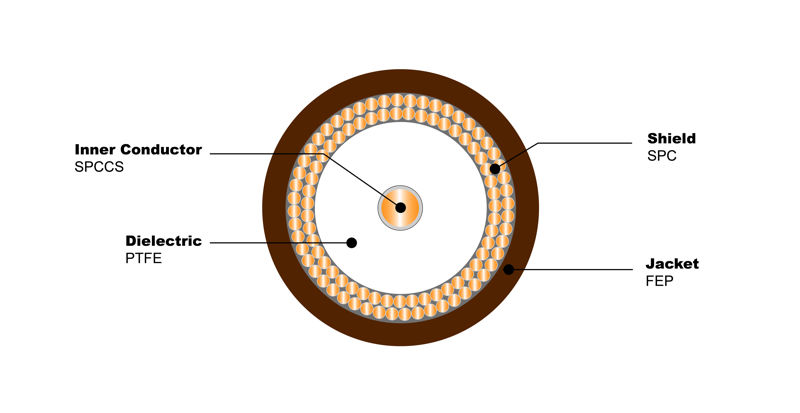

■ Cross Section:

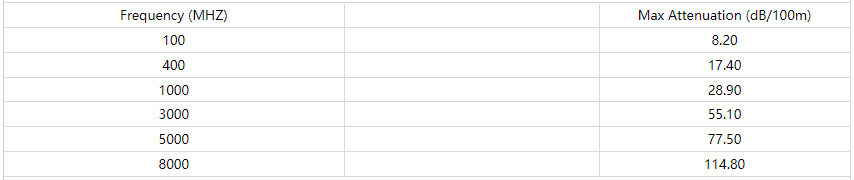

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL 304 50 Ohm COAXIAL CABLE 7101219 ×××M/FT (or per customer's request)

Inner Package: 100M, 300M, 500M (or per customer's request)

Outer Package: Carton, Color Box, Pallet (or per customer's request)

Delivery Time: Normally 25 days after receiving the deposit

Brand: HELLOSIGNAL™ or OEM
