19*0.203mmSPC+2.95mmPTFE+112×0.12mmSPC+112×0.12mm SPC+4.95mmFEP
hellosignal
7101221
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

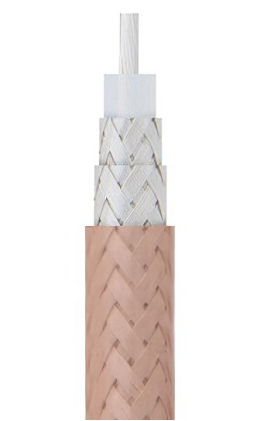

RG 400（NO.7101221） | ||
Construction Parameters: | ||
Inner Conductor | 19/0.203±0.01mm Silver Plated Copper Clad Steel | |
Dielectric | 2.95 ±0.05mm PTFE （White) | |
Shield 1 | 16×7×0.12mm Silver Plated Copper | |
Density of braiding: 95% ± 3% | ||
Shield 2 | 16×7×0.12mm Silver Plated Copper | |
Density of braiding: 92% ± 3% | ||
Jacket | 4.95±0.10mm FEP （Natural Brown) | |
Standard | MIL-C-17 | |
Electrical Characteristics: | ||
Capacitance | 105±5 pF/m |
|
Impedance | 50 ±2 Ω | |
Velocity of Propagation | 70% | |
Max Operating Voltage | 1400 VMS | |
Max Operating Frequency | 12000 MHz | |
Mechanical and Envrionmental Properties： | ||
Cable bend radius | 25 mm | |
Operating Temp Range | -55 ℃ to 200℃ | |
Installation Temp Range | -5 ℃ to 20℃ | |

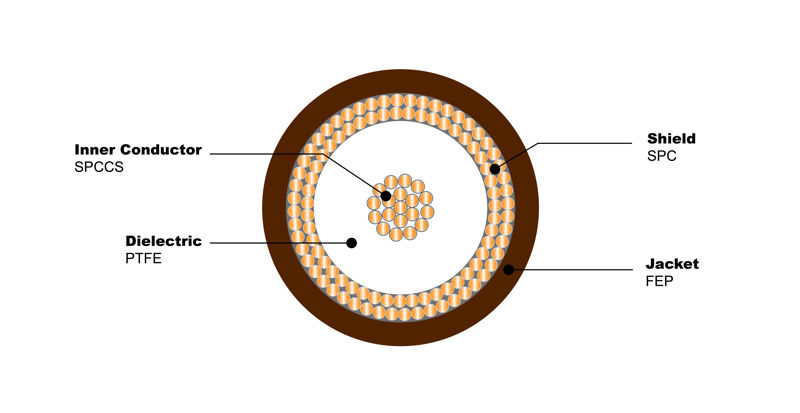

Cross Section： | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation (dB/100m) | |
100 | 14.40 | |
400 | 29.50 | |
1000 | 48.20 | |
3000 | 88.30 | |
5000 | 118.40 | |
11000 | 189.90 | |
Order Informations: | ||
Marking | HELLOSIGNAL RG400 | |
Package | 100M,300M,500M | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNALTM OR OEM | |
