7×0.8mm SPC+7.24mmPTFE+ 144×0.15mm SPC+168×0.15mm SPC+9.9mmFEP
hellosignal
NO.7101225
Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
RG 393（NO.7101225） | ||
Construction Parameters: | ||
Inner Conductor | 7/0.8±0.01mm Silver Plated Copper | |
Dielectric | 7.24 ±0.05mm PTFE （White) | |
Shield 1 | 144×0.15mm Silver Plated Copper | |
Density of braiding: 95% | ||
Shield 2 | 168×0.15mm Silver Plated Copper | |
Density of braiding: 98% | ||
Jacket | 9.90±0.10mm FEP （Natural Brown) | |
Standard | MIL-C-17 | |
Electrical Characteristics: | ||
Capacitance | 97±5 pF/m |
|
Impedance | 50 ±2 Ω | |
Velocity of Propagation | 70% | |
Max Operating Voltage | 1875 VMS | |
Max Operating Frequency | 11000 MHz | |
Mechanical and Envrionmental Properties： | ||
Cable bend radius | 100 mm | |
Operating Temp Range | -55 ℃ to 200℃ | |
Installation Temp Range | -5 ℃ to 20℃ | |

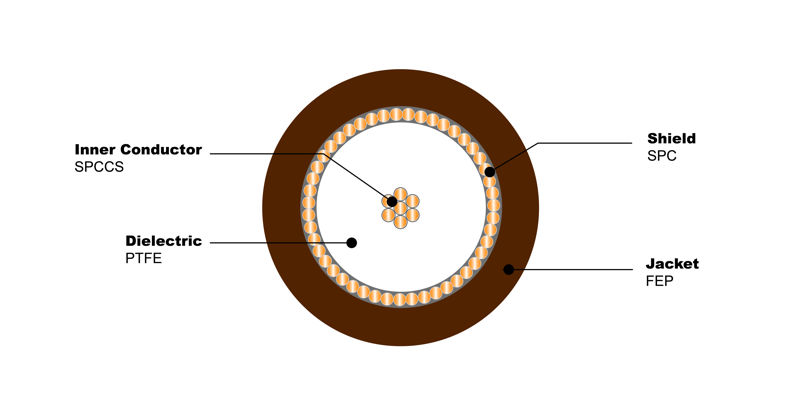

Cross Section： | ||
| ||
Attenuation(20℃): | ||
Frequency (MHZ) | Max Attenuation (dB/100m) | |
100 | 7.00 | |
400 | 14.00 | |
900 | 22.00 | |
1000 | 24.00 | |
1800 | 32.00 | |
2400 | 40.00 | |
3000 | 47.00 | |
5000 | 64.00 | |
11000 | 109.00 | |
Order Informations: | ||
Marking | HELLOSIGNAL 393 | |
Package | 100M,300M,500M | |
Delivery time | Normally 25 days after received the deposit. | |
Brand | HELLOSIGNALTM OR OEM | |
