NO.7112208 U/UTP CAT6 4PR 23AWG PVC CCA Conductor

Construction

Conductor:

23 AWG Solid CCA (Copper Clad Aluminum)

Pairs:

4 Pairs

Insulation:

1.02 mm HDPE

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Filler:

Cross Filler

Rip Cord:

Cotton

Out Jacket:

6.4±0.2 mm  PVC

Electrical Characteristics

Impedance

1 - 250MHz 100±15 Ohms

Insulation Resistance

＞5000MΩ*KM

Dielectric strength

DC  2500V  2S

Max.Conductor DC

10.8 Ohms/100m

Resistance 20℃

Res. unbalance (%)

Max. 2.5

Pair to Ground

330 pF/100m

Capacitance Unbalance

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Installation temp.

 -30 - 50℃

Operation temp.

 -20 - 75℃

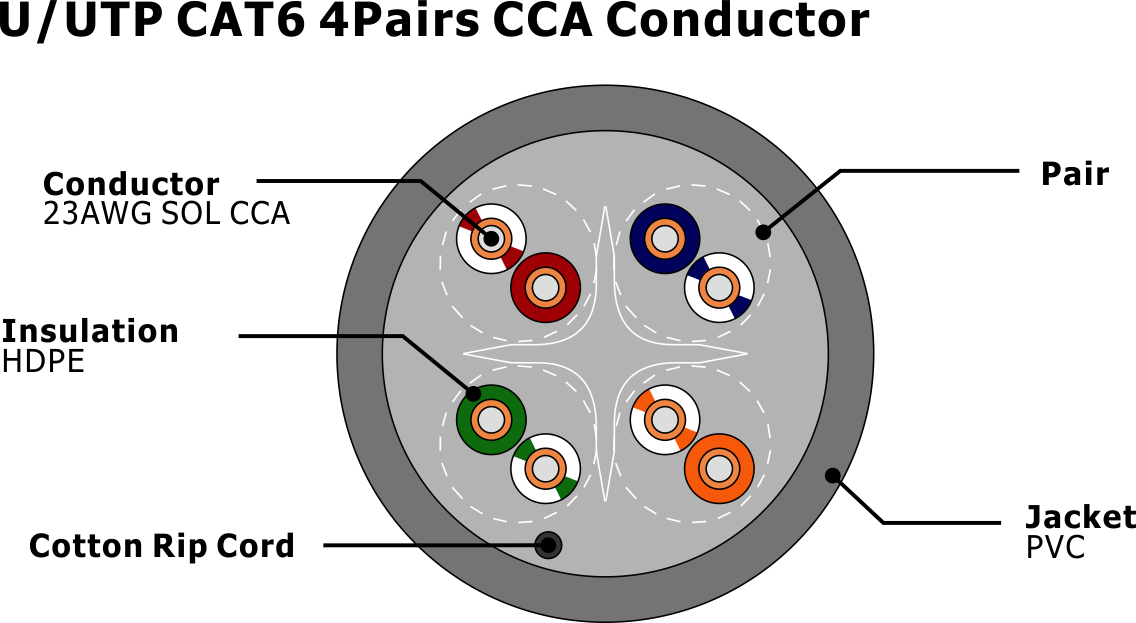

Cross Section

 Application

•  Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 6 and

   ISO 11801 2nd Edition Class E channel standards.

•  Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5

   Category 6 component standards.

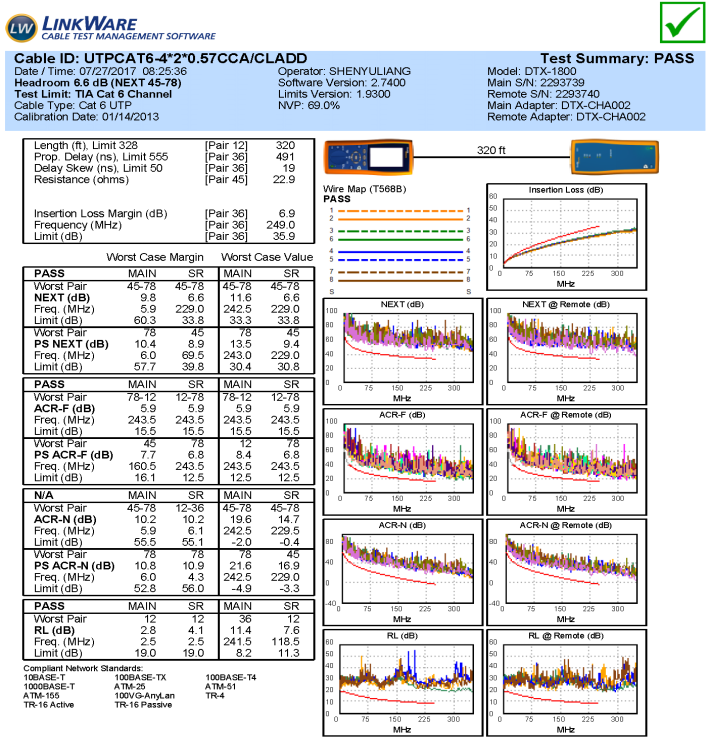

•  Third party tested to comply with ANSI/TIA-568-C.2.

•  Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

•  Descending length cable markings enable easy identification of remaining cable

   which reduces installation time and cable scrap.

•  Color Availability: Additional cable colors available.

Order Informations

Marking

HELLOSIGNAL NO.7112202 U/UTP CAT6 4PR 23AWG PVC
XXX (or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
