NO.7112202-545 U/UTP CAT 6 PVC E-Global Market

Construction

Conductor:

0.545±0.005mm Solid Bare Copper

Pairs:

4 Pairs

Insulation:

0.96±0.05 mm HDPE

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

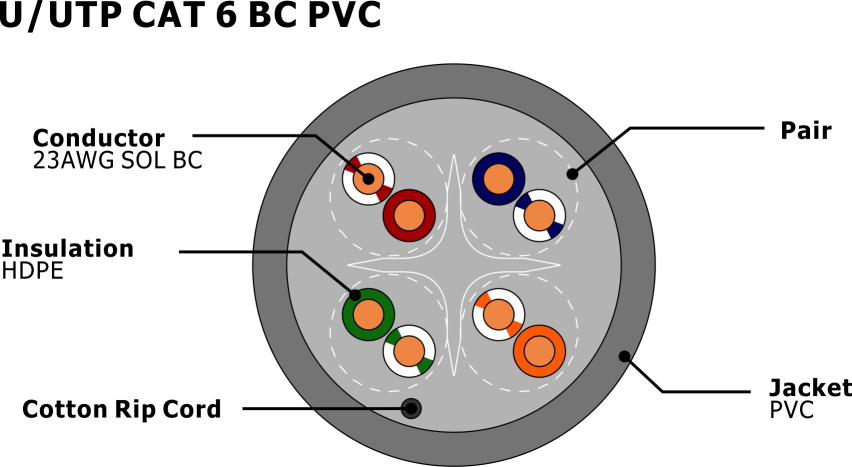

Cross Section

Modified Polyethylene

Rip Cord:

Cotton or Fibre

Out Jacket:

5.4±0.3 mm  PVC

※ Pass Network Analyzers and Fluke test.

Cross Section

COMPLIANCE （Reference Standard and Certificates)

· ISO/IEC 11801-1 Ed.1.0

· ANSI/TIA-568-C.2 、 ANSI/TIA-568.2-D

· UL444、UL1581、UL1666、IEC60332-1、EN50399

Application Support

· 1000BASE-T 、 1000BASE-TX、100BASE-T 、 100BASE-TX、100VG-AnyLAN、ATM

· 1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo、 POE Type1,2,3,4

Electrical Characteristics

DC Resistance

＜9.5 Ohms/100m @20℃

DC Resistance unbalance

5% @ 20℃

Mutual Capacitance

5.6 nF/100m

Characteristic Impedance

    1 - 100 MHz : 100±15 Ohms

100 - 250 MHz : 100±20 Ohms

Max Frequency

250MHz

Capacitance Unbalance

330 pF/100m

NVP(传输速率）

0.65

Delay Skew

≤ 40ns/100m

PHYSICAL PROPERTIES

Pulling Tension(Max)

≥13.5Mpa

Bend Radius(Min)

8×OD of Jacket

Operating Temperature

-20 to 60 ℃ （-4 to 140℉）

Performance Characteristics

Frequency

RL(Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20

2.1

570

45

75.3

72.3

70

67

4

23

3.8

552

45

66.3

63.3

58

55

10

25

6

545

45

60.3

57.3

50

47

16

25

7.6

543

45

57.2

54.2

45.9

42.9

20

25

8.5

542

45

55.8

52.8

44

41

31.25

23.6

10.7

540

45

52.9

49.9

40.1

37.1

62.5

21.5

15.4

539

45

48.4

45.4

34.1

31.1

100

20.1

19.8

538

45

45.3

42.3

30

27

200

18

29

537

45

40.8

37.8

24

21

250

17.3

32.8

536

45

39.3

36.3

22

19

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

※Note: Limites below 4 MHz are for information only.

Order Informations

Marking

HELLOSIGNAL NO.7112202-545 U/UTP CAT6 4PR 23AWG PVC ...305M(1000FT)  (or Per customer's request)

Inner Package

305m/Spool,305m/Reel (or Per customer's request)

Outer Package

Color Box, Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
