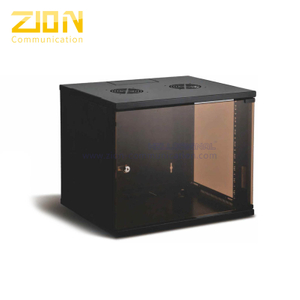

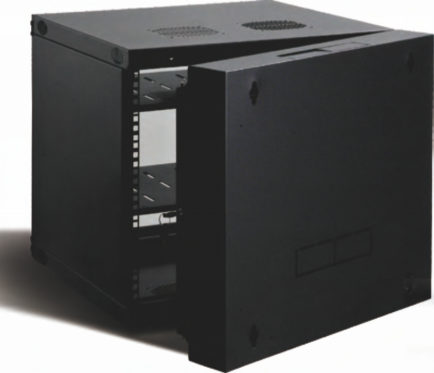

Wall Mount Rack Cabinet
ZCVA
Copper System
Normally 25 working days
NINGBO, SHANGHAI

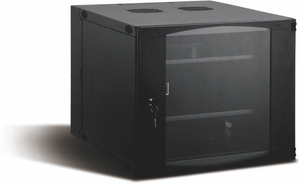

VA Wall Box | |||||||||
Technical Data | |||||||||
Materials: |  | ||||||||
· SPCC Cold Rolled Steel; | |||||||||
· Thickness: Mounting profile: 2.0mm; | |||||||||
· others: 1.0mm. | |||||||||
Colour: | |||||||||
· ZCVA.■■■■0■■: RAL7035 | |||||||||
· ZCVA.■■■■1■■: RAL7021 | |||||||||
Loading Capacity: | |||||||||
· Static loading: 30KG. | |||||||||
Finish: | |||||||||
· Pretreated steel coated with textured, polyester powder paint | |||||||||
COMPLIANCE （Reference Standard） | |||||||||
· Comply with ANSI/EIA RS-310-D | |||||||||
· IEC60297-2 | |||||||||
· DIN41494;PART1; DIN41494;PART7. | |||||||||
Feature | |||||||||
 | · Disassembled and small packaging, easy to deliver and carry. · Special design front and back frames are with good stability. · 16 screws are needed to assemble the whole enclosure. It will take only 10 minutes to assemble the enclosure by one person. · Front door is with corrective structure to avoid door dropping. · Opening direction could be changed easily. · Cable entries are available on top， bottom and back of enclosure, suitable for different places. · The patented cable entries are adjustable and with the design to prevent wires from scratching. · Opening direction of enclosures can be changed quickly. Automatic locking ensures safety and relability. · Maximum Loading capacity: 30kgs. | ||||||||
May Installs The Fitting | |||||||||
 | |||||||||
Definition Of Cord | |||||||||
 | |||||||||

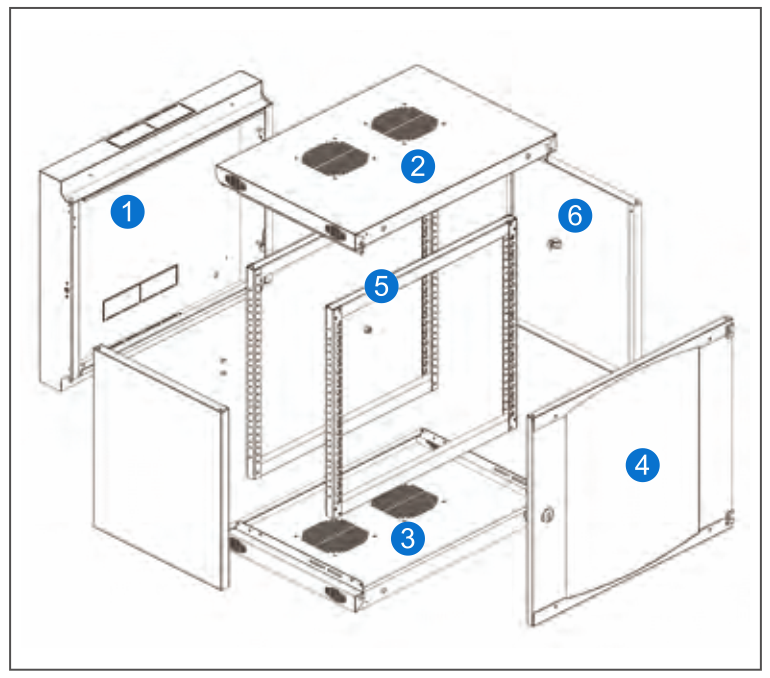

Main Part | |||||||||
S/N | Specification | Qty | Material | Surface Finish | Remark | ||||
1 | Back frame | 1 | SPCC t1.0 | Powder coated | ····· | ||||
2 | Top cover | 1 | SPCC t1.0 | Powder coated | ····· | ||||
3 | Bottom | 1 | SPCC t1.0 | Powder coated | ····· | ||||
4 | Front door | 1 | 4MM toughed glass | Powder coated | Small lock | ||||
5 | 19"rails frame | 2 | SPCC t2.0 | Powder coated | ····· | ||||
6 | Side panel | 2 | SPCC t1.0 | Powder coated | ····· | ||||
Order Information: | |||||||||

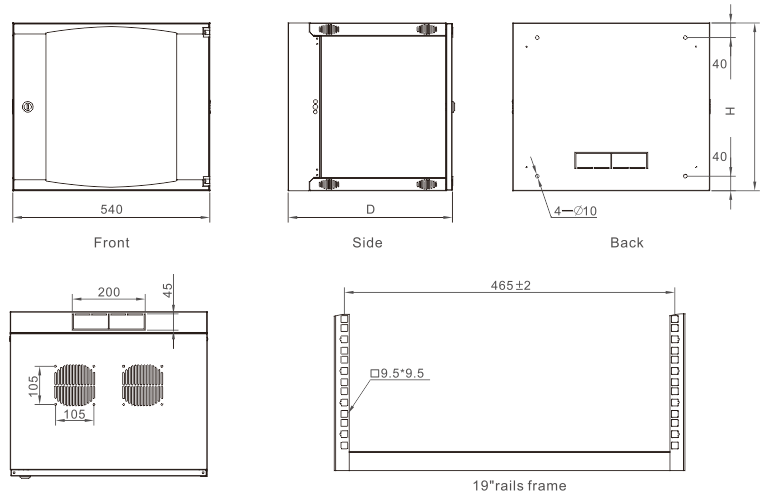

Part Number. | RU | Width | Depth(D) | Height(H)(mm) | Disassembled packing | Assembled packing | |||
ZCVA.5406.VADS | 6 | 540 | 450 | 327 | 570*280*440 | 550*460*350 | |||
ZCVA.5606.VADS | 600 | 570*310*545 | 550*610*350 | ||||||
ZCVA.5409.VADS | 9 | 540 | 450 | 460 | 600*265*490 | 550*460*480 | |||
ZCVA.5609.VADS | 600 | 600*310*530 | 550*610*480 | ||||||
ZCVA.5412.VADS | 12 | 540 | 450 | 593 | 600*265*625 | 550*460*610 | |||
ZCVA.5612.VADS | 600 | 600*290*625 | 550*610*610 | ||||||
ZCVA.5415.VADS | 15 | 540 | 450 | 725 | 600*265*760 | 550*460*750 | |||
ZCVA.5615.VADS | 600 | 600*290*760 | 550*610*750 | ||||||
Main Structure | |||||||||
 | |||||||||
VA Wall Box | |||||||||
Technical Data | |||||||||
Materials: | | ||||||||
· SPCC Cold Rolled Steel; | |||||||||
· Thickness: Mounting profile: 2.0mm; | |||||||||
· others: 1.0mm. | |||||||||
Colour: | |||||||||
· ZCVA.■■■■0■■: RAL7035 | |||||||||
· ZCVA.■■■■1■■: RAL7021 | |||||||||
Loading Capacity: | |||||||||
· Static loading: 30KG. | |||||||||
Finish: | |||||||||
· Pretreated steel coated with textured, polyester powder paint | |||||||||
COMPLIANCE （Reference Standard） | |||||||||
· Comply with ANSI/EIA RS-310-D | |||||||||
· IEC60297-2 | |||||||||
· DIN41494;PART1; DIN41494;PART7. | |||||||||
Feature | |||||||||
| · Disassembled and small packaging, easy to deliver and carry. · Special design front and back frames are with good stability. · 16 screws are needed to assemble the whole enclosure. It will take only 10 minutes to assemble the enclosure by one person. · Front door is with corrective structure to avoid door dropping. · Opening direction could be changed easily. · Cable entries are available on top， bottom and back of enclosure, suitable for different places. · The patented cable entries are adjustable and with the design to prevent wires from scratching. · Opening direction of enclosures can be changed quickly. Automatic locking ensures safety and relability. · Maximum Loading capacity: 30kgs. | ||||||||
May Installs The Fitting | |||||||||
| |||||||||
Definition Of Cord | |||||||||
| |||||||||
Main Part | |||||||||
S/N | Specification | Qty | Material | Surface Finish | Remark | ||||
1 | Back frame | 1 | SPCC t1.0 | Powder coated | ····· | ||||
2 | Top cover | 1 | SPCC t1.0 | Powder coated | ····· | ||||
3 | Bottom | 1 | SPCC t1.0 | Powder coated | ····· | ||||
4 | Front door | 1 | 4MM toughed glass | Powder coated | Small lock | ||||
5 | 19"rails frame | 2 | SPCC t2.0 | Powder coated | ····· | ||||
6 | Side panel | 2 | SPCC t1.0 | Powder coated | ····· | ||||
Order Information: | |||||||||
Part Number. | RU | Width | Depth(D) | Height(H)(mm) | Disassembled packing | Assembled packing | |||
ZCVA.5406.VADS | 6 | 540 | 450 | 327 | 570*280*440 | 550*460*350 | |||
ZCVA.5606.VADS | 600 | 570*310*545 | 550*610*350 | ||||||
ZCVA.5409.VADS | 9 | 540 | 450 | 460 | 600*265*490 | 550*460*480 | |||
ZCVA.5609.VADS | 600 | 600*310*530 | 550*610*480 | ||||||
ZCVA.5412.VADS | 12 | 540 | 450 | 593 | 600*265*625 | 550*460*610 | |||
ZCVA.5612.VADS | 600 | 600*290*625 | 550*610*610 | ||||||
ZCVA.5415.VADS | 15 | 540 | 450 | 725 | 600*265*760 | 550*460*750 | |||
ZCVA.5615.VADS | 600 | 600*290*760 | 550*610*750 | ||||||
Main Structure | |||||||||
| |||||||||
