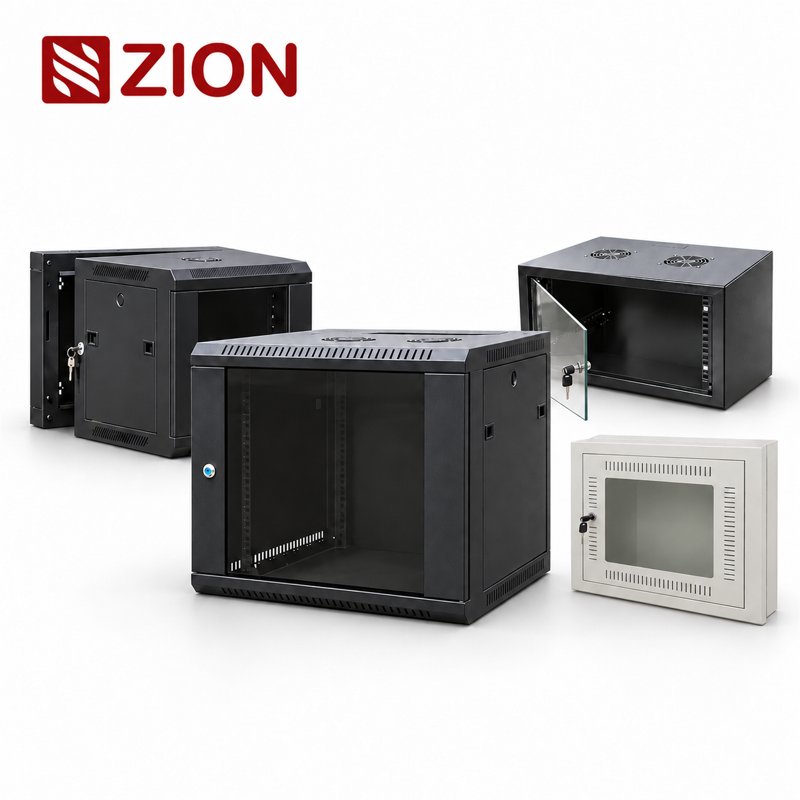

What Is a Wall Mount Network Cabinet?
A wall mount network cabinet is an enclosed rack platform that places communication equipment above the floor while protecting switches, patch panels, fiber panels, routers, CCTV components and rack accessories. It is commonly used in branch offices, retail sites, schools, warehouses and distributed telecom locations.
ZION offers several cabinet families rather than one universal 6U–18U product. Each family has its own structure and model range, so procurement should begin with the required access method and installation conditions.
ZION Wall Mount Cabinet Product Families
The following families are the current products listed in the ZION wall mount rack cabinet range. Open the corresponding detail page to confirm the available U heights, depths, load ratings and accessories.
ZM-A Single Section Wall Cabinet
A welded single-section enclosure for compact indoor network, CCTV and telecom edge installations.
View product family →
ZM-B Single Section Wall Cabinet
A single-section cabinet family with multiple door and accessory options for distributed network equipment.
View product family →
ZM-C Single Section Wall Cabinet
A single-section wall cabinet platform for projects requiring a different frame, door or mounting configuration.
View product family →
ZWS-A Double Section Wall Cabinet
A hinged double-section cabinet that improves rear cable and equipment access during installation and maintenance.
View product family →
ZWS-B Double Section Wall Cabinet
A double-section wall cabinet family for projects that need organized rear-side servicing and cable routing.
View product family →
ZWS-C Double Section Wall Cabinet
A broad double-section family for network nodes where service access and configuration flexibility are priorities.
View product family →
CAB 400 Wall Cabinet
A compact wall cabinet series for shallow equipment and space-sensitive communication installations.
View product family →
ZM Flush Mount Wall Cabinet
A flush-mount cabinet solution for installations that require a cleaner wall profile and integrated appearance.
View product family →How to Select the Right Cabinet Structure
| Structure | Related Families | Best-Fit Requirement | Confirm Before RFQ |
|---|---|---|---|
| Single section | ZM-A, ZM-B, ZM-C | Compact enclosed installation with front and removable-side service access | U height, usable depth, door style, ventilation and shelf requirements |
| Double section | ZWS-A, ZWS-B, ZWS-C | Rear cable or equipment access after wall mounting | Rear swing clearance, wall strength, total load and service workflow |
| Compact cabinet | CAB 400 | Shallow devices and space-sensitive edge installations | Equipment depth, connector allowance and cable bend space |
| Flush mount | ZM Flush Mount | A recessed installation with a cleaner wall profile | Wall opening, installation depth, service access and finishing requirements |
Key Benefits
Places network equipment above the floor in compact technical areas.
Encloses patching, switching and power accessories in an organized cabinet.
Single- and double-section choices support different maintenance workflows.
U height and depth are selected after the cabinet family and equipment list are confirmed.
Top, bottom and rear routing options vary by family and installation method.
Door styles, shelves, fans, locks, PDUs, labels and packaging can be reviewed for projects.
Applications
Wall mount network cabinets are suitable for branch-office network nodes, classroom and campus distribution points, retail systems, CCTV installations, access-control networks, fiber and copper termination, warehouse connectivity and other indoor edge deployments where floor space is limited.
General Specifications
| Item | Available Configuration | Selection Note |
|---|---|---|
| Rack format | 19-inch | Confirm every rack device and accessory in the proposed BOM |
| Cabinet families | ZM-A, ZM-B, ZM-C, ZWS-A, ZWS-B, ZWS-C, CAB 400, ZM Flush Mount | Choose the structure before selecting U height and depth |
| Main material | SPCC cold-rolled steel, subject to model | Confirm thickness and finish on the selected product sheet |
| Capacity and dimensions | Model-dependent U height, width and depth | Do not assume every capacity is available in every family |
| Static load | Model-dependent | Verify total equipment weight and wall mounting conditions |
| Front door | Glass, steel or perforated options subject to family | Balance visibility, airflow and access control |
| Cable entry | Top, bottom or rear routing subject to model | Confirm conduit direction and cable bend allowance |
| Color and accessories | Project options available | Include door, lock, shelf, fan, PDU and packing requirements in the RFQ |
RFQ Checklist
FAQ
Which ZION wall cabinet family should I choose?
Choose a ZM single-section cabinet for straightforward front and side service, a ZWS double-section cabinet when rear access is important, CAB 400 for compact shallow installations, or the ZM Flush Mount model for a recessed wall profile.
Are 6U, 9U, 12U and 18U separate product families?
No. Rack-unit capacity is a model option within selected cabinet families. Available U height, width, depth and load rating must be confirmed against the chosen ZM, ZWS, CAB 400 or flush-mount series.
How should cabinet depth be selected?
Measure the deepest device and include connector projection, cable bend allowance, rail position and maintenance clearance. Nominal external depth is not the same as usable equipment depth.
When is a double-section wall cabinet recommended?
A double-section cabinet is useful when technicians need easier access to rear cabling or the back of installed equipment after the cabinet is mounted. Wall condition and swing clearance must also be checked.
Can the door, color and accessories be customized?
Door style, color, locks, shelves, fan modules, cable-entry parts, PDU and packaging can be reviewed during quotation according to the selected cabinet family and project quantity.
What information is required for a quotation?
Provide the preferred cabinet family, required U height, equipment depth, total installed load, door preference, accessory list, quantity and installation environment.
