Inside ZION's LAN and Network Cable Factory in China  A photo tour of the LAN cable production department, including manufacturing equipment, material handling areas, and examples of twisted-pair cable construction.

■About This LAN Cable Factory Tour

This factory tour provides a visual introduction to an Ethernet and LAN cable production environment in China. The photographs show production machinery, cable reels, work areas, raw-material storage, and finished cable construction references.

A complete network cable specification involves more than a category name. Conductor construction, pair design, shielding, jacket material, installation environment, fire-rating requirements, and applicable project standards should all be confirmed before ordering.

■Network Cable Production Equipment

The production floor contains equipment for handling conductors, insulated elements, twisted pairs, cable assemblies, and outer-jacket processes. The exact production route and machine settings depend on the cable design and the approved manufacturing specification.

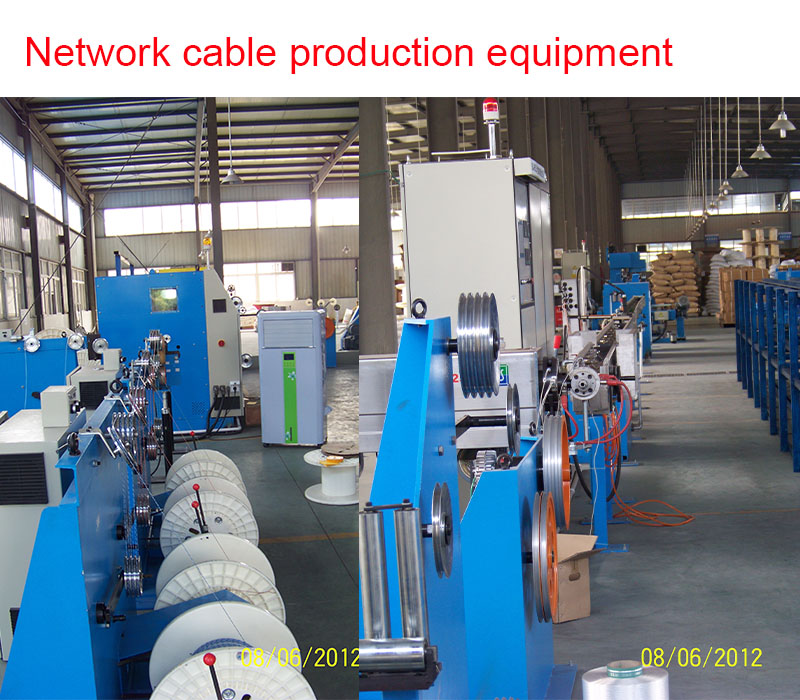

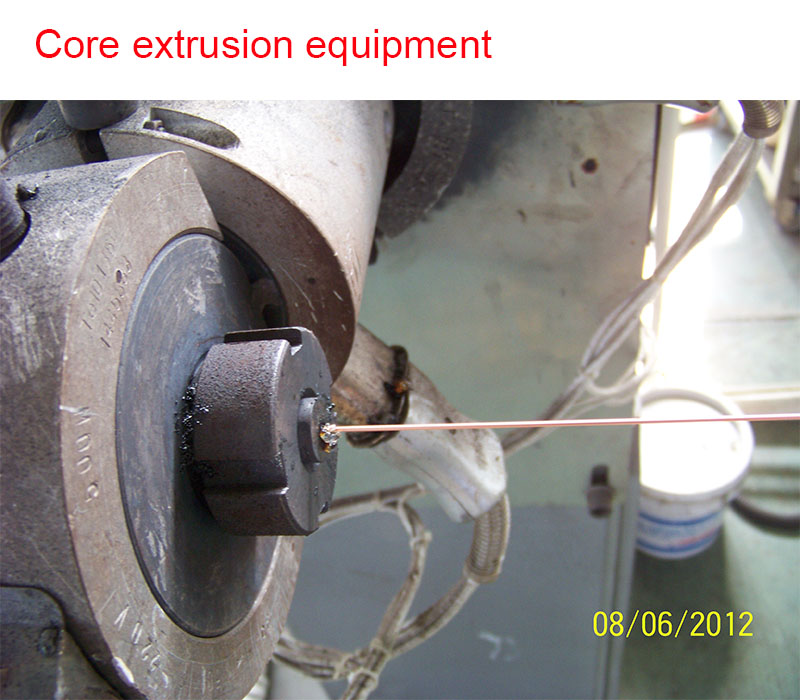

Network cable production equipment on the LAN cable factory floor

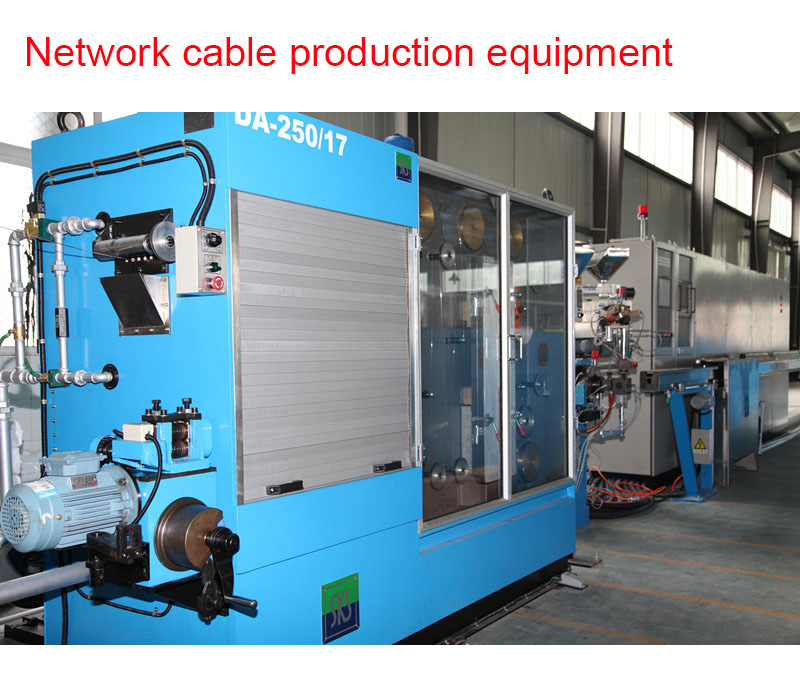

Cable handling machinery and controls in the network cable workshop

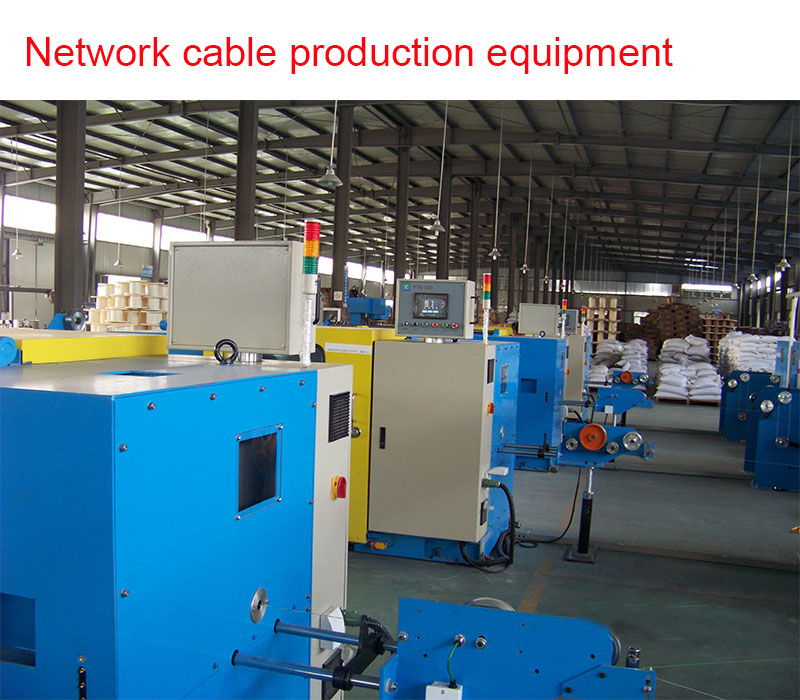

LAN cable manufacturing line with reels and processing equipment

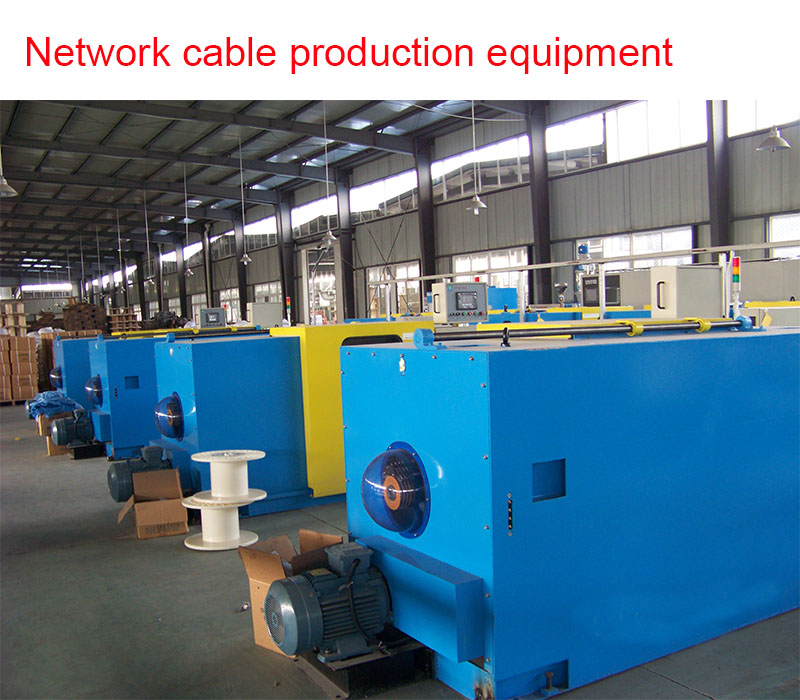

Network cable factory machinery arranged along the production floor

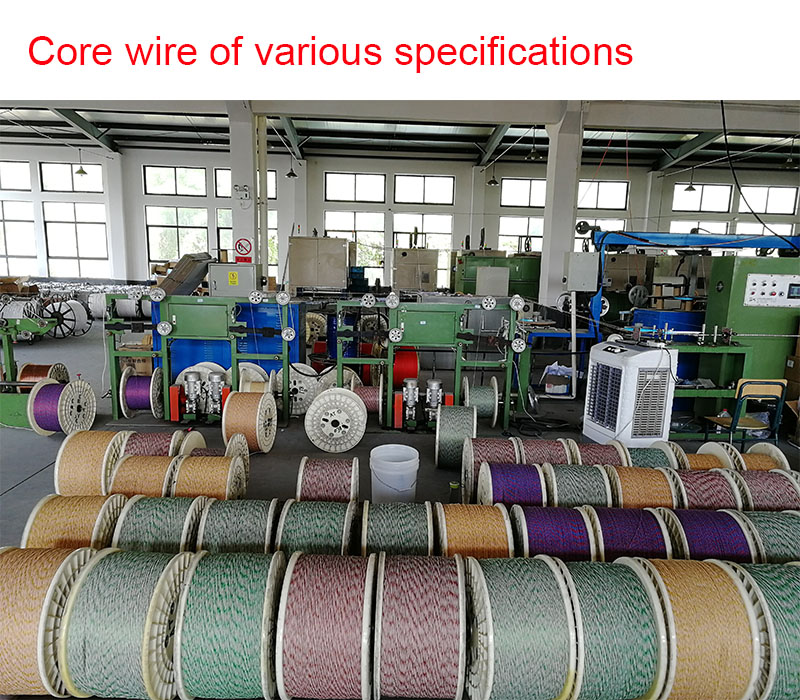

Cable production machinery with conductor reel handling equipment

Control and processing equipment used on the LAN cable production floor

■Production Floor and Material Handling

Cable manufacturing also requires organized movement of reels, packaging materials, and production inputs. These images show the scale of the workshop, equipment spacing, production lanes, and a raw-material stacking area. They document the factory environment without implying a particular capacity or output volume.

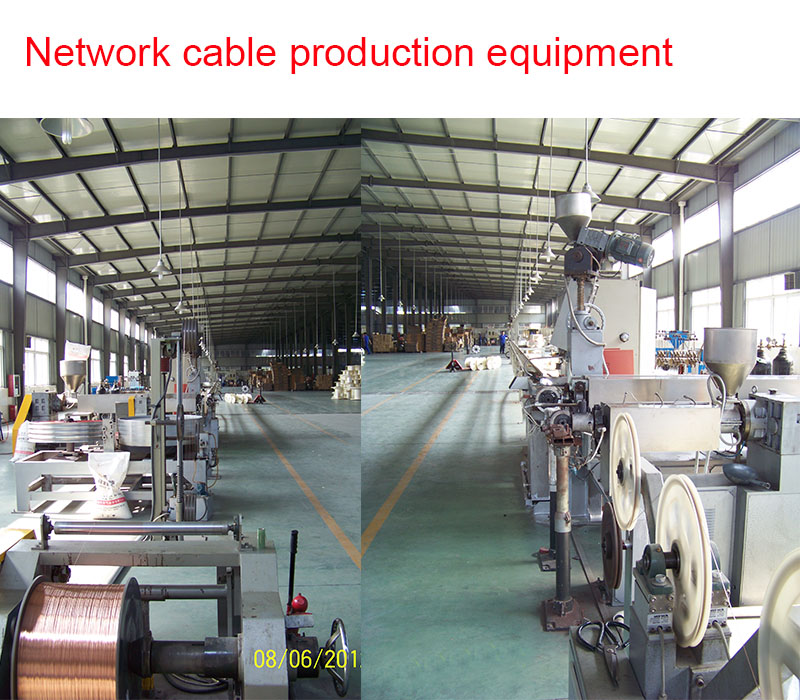

Network cable production lane with reels and factory equipment

LAN cable workshop equipment and cable processing stations

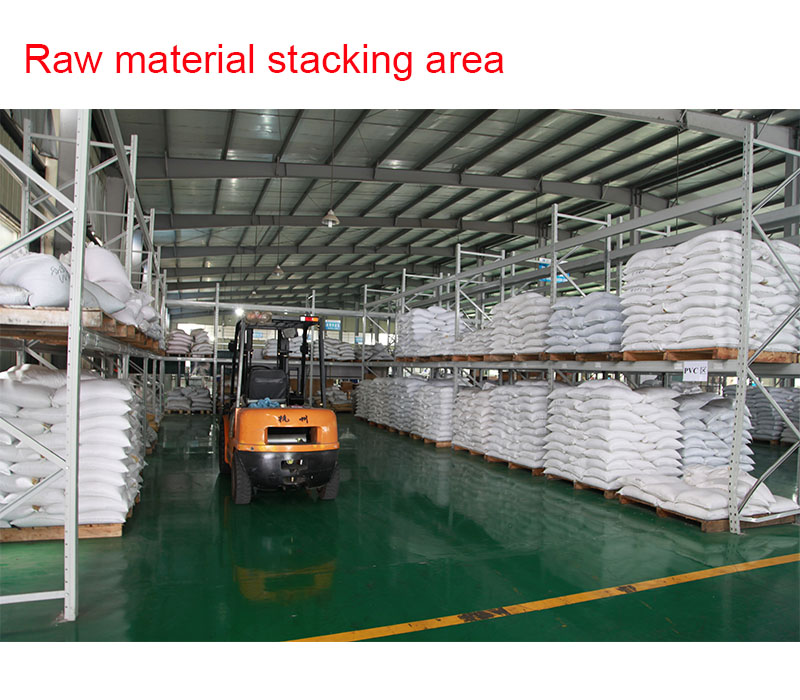

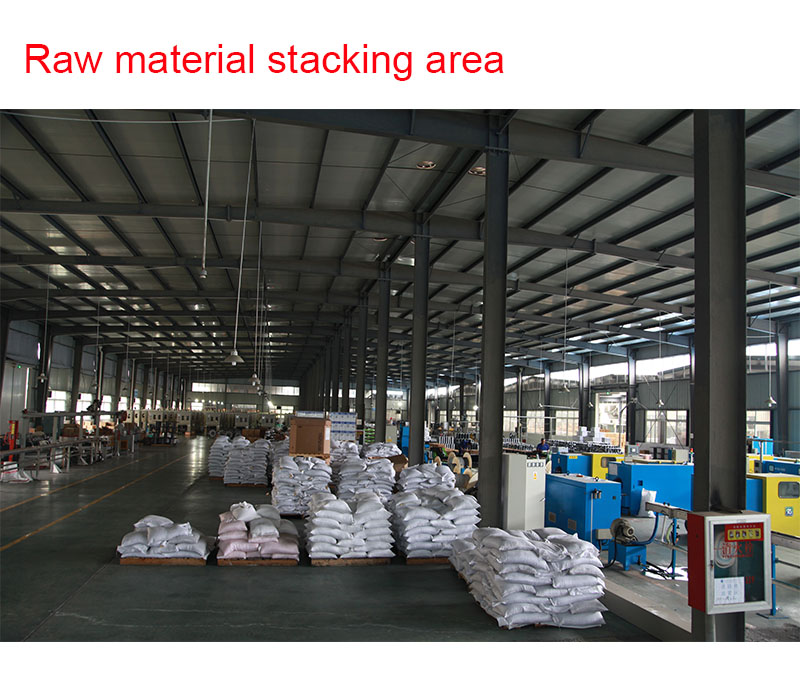

Raw material stacking area inside the network cable factory

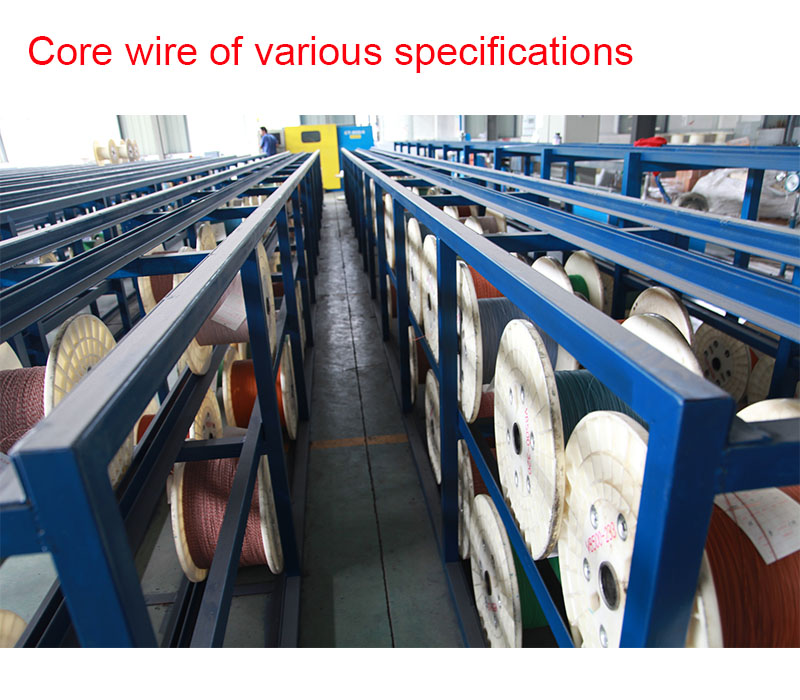

Cable reels and production equipment in the LAN cable workshop

Industrial cable processing machinery viewed along the factory aisle

Network cable production floor with material and reel handling areas

■CAT5e, CAT6, and CAT6A Cable Options

The final cable category should be selected from the actual channel requirements and installation conditions. ZION provides separate ranges for CAT5e Ethernet cable, CAT6 Ethernet cable, and CAT6A Ethernet network cable. Each range includes construction choices that should be matched to the project specification.

The reference sheets below illustrate U/UTP and F/UTP constructions for CAT5e and CAT6 cables. Product-specific dimensions, materials, ratings, and electrical limits should be confirmed against the current datasheet for the exact item being ordered.

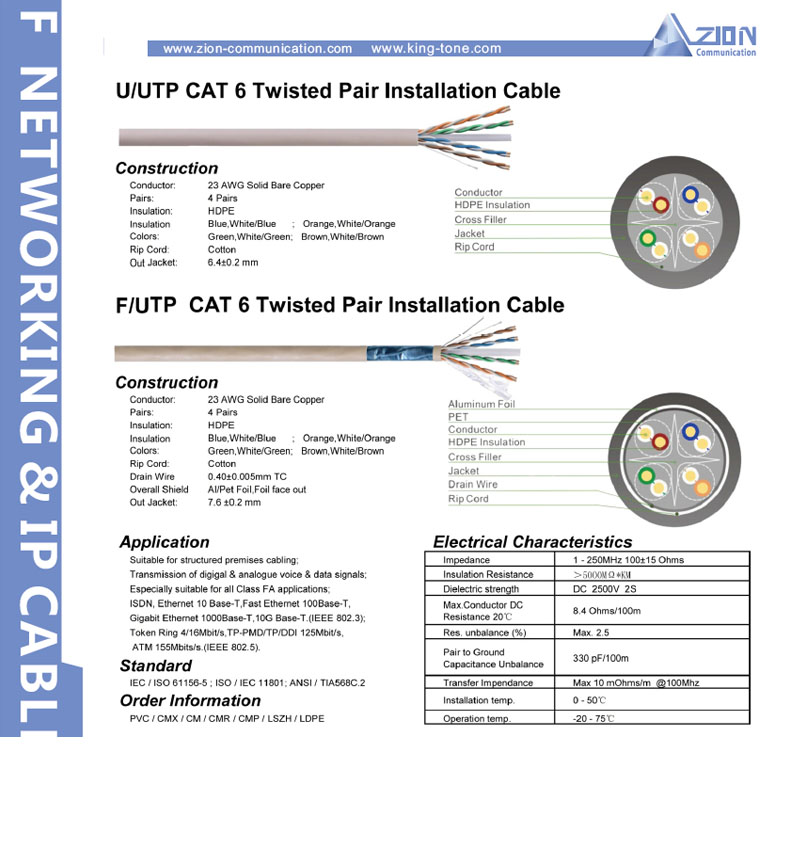

CAT5e U UTP and F UTP twisted-pair cable construction reference sheet

CAT6 U UTP and F UTP twisted-pair cable construction reference sheet

■Information to Confirm Before Ordering

A useful network cable specification should identify:

  • Cable category and the applicable cabling or project standard

  • Solid or stranded conductor construction and required conductor material

  • U/UTP, F/UTP, or another shielding arrangement

  • Indoor, outdoor, direct-burial, plenum, riser, or other installation environment

  • Jacket material, fire rating, cable length, packaging, marking, and quantity

  • Required test reports, certificates, or project documentation for the exact product

■Frequently Asked Questions

What does this LAN cable factory tour show?

It shows network cable production machinery, reel and material handling areas, workshop layout, and CAT5e and CAT6 construction reference sheets.

Is the cable category enough to define the product?

No. The category must be combined with conductor, shielding, jacket, installation, fire-rating, packaging, and project-standard requirements.

Should U/UTP or shielded cable be selected?

The choice depends on the cabling design, electromagnetic environment, grounding and bonding plan, pathway, equipment interfaces, and the applicable project specification.
