When a Cat6A UTP MPTL Is the Right Architecture
MPTL stands for Modular Plug Terminated Link. It is a cabling architecture in which the horizontal cable is terminated with a field-installable modular plug and connected directly to the end device instead of passing through a work-area outlet and separate equipment cord.
Use an MPTL when the fixed cable must plug directly into equipment and an outlet-plus-patch-cord arrangement would add unnecessary bulk or create a service problem. The architecture is particularly relevant to access points above ceilings, cameras in compact housings, digital-signage controllers and building-automation devices.
A conventional outlet remains preferable where equipment moves frequently or where service teams need to replace a patch cord without disturbing the horizontal cable. The practical selection rule is simple: use a jack and patch cord for a maintained work-area interface; use an MPTL for a stable direct-connected endpoint with suitable access for inspection.
Selected MPTL Bill of Materials
The rack side remains a normal modular Cat6A termination. The change occurs at the device end, where the ZC-603SU-C6A replaces the work-area jack and equipment cord.
| Component | Selected model | Published specification | Role in the link |
|---|---|---|---|
| Horizontal cable | ZION 7112302 | Cat6A U/UTP, 23 AWG solid bare copper, conductor 0.565 ± 0.005 mm, PVC, performance data through 500 MHz | Fixed cable to the endpoint |
| Rack-side jack | ZCMKJ180U6A-B1 | Cat6A UTP 180-degree mini-body IDC jack; 22–24 AWG solid wire; 750 RJ45 mating cycles minimum; 250 IDC cycles minimum | Termination inside modular panel |
| Patch panel | ZCPPU6A-1U24-KJ-B1 | 19-inch 1U, 24-port modular UTP panel with rear cable management | Rack-side organization |
| Rack patch cord | 7241010 | Cat6A U/UTP, 500 MHz, copper conductor options in 24, 26 and 28 AWG | Switch-to-panel connection |
| Device-side field plug | ZC-603SU-C6A | Cat6A UTP toolless RJ45 plug; solid and stranded 22/23/24 AWG; 750 RJ45 cycles and 250 IDC cycles minimum | Direct connection to AP, camera or device |
Field Plug and Cable Compatibility
The ZC-603SU-C6A is a Cat6A unshielded toolless RJ45 plug. Its published conductor range is 22, 23 and 24 AWG for both solid and stranded cable. Mechanical data lists at least 750 RJ45 mating cycles and 250 IDC termination cycles. Published electrical values include 20 mΩ contact resistance, insulation resistance of ≤500 MΩ at 100 V DC, and a one-minute withstand rating of DC 1000 V / AC 700 V RMS.
The selected 7112302 cable uses 23 AWG solid conductors, which falls inside that conductor range. Cable outside diameter, individual insulation diameter and jacket grip must also match the current field-plug drawing. These dimensions should be recorded in the approved project BOM because AWG alone does not confirm mechanical fit.
| Compatibility item | Selected value | Project check |
|---|---|---|
| Conductor | 23 AWG solid bare copper | Within the plug's published 22/23/24 AWG range |
| Shielding | U/UTP | Use the unshielded field-plug model |
| Cable OD | Confirm from current production drawing | Must fit the plug entry and strain relief |
| Wiring | T568A or T568B | Use one scheme consistently |
| Environment | Indoor protected installation | Add a suitable enclosure for dust, moisture or outdoor exposure |
PoE and Thermal Checks for Direct-Connected Devices
Wireless access points and cameras frequently use remote power. A Cat6A label does not replace a PoE engineering review. Confirm the device power class, cable conductor resistance, DC resistance unbalance, number of energized cables in the bundle, ambient temperature and connector current rating.
Reduced-gauge patch cords can improve cabinet density, but the permanent run in this configuration remains 23 AWG solid copper. Use short rack cords appropriate to the PoE load and document any length derating required by the project standard. Outdoor cameras additionally require a suitable enclosure, environmental sealing and surge-protection strategy; the indoor RJ45 field plug is not a weatherproof housing.

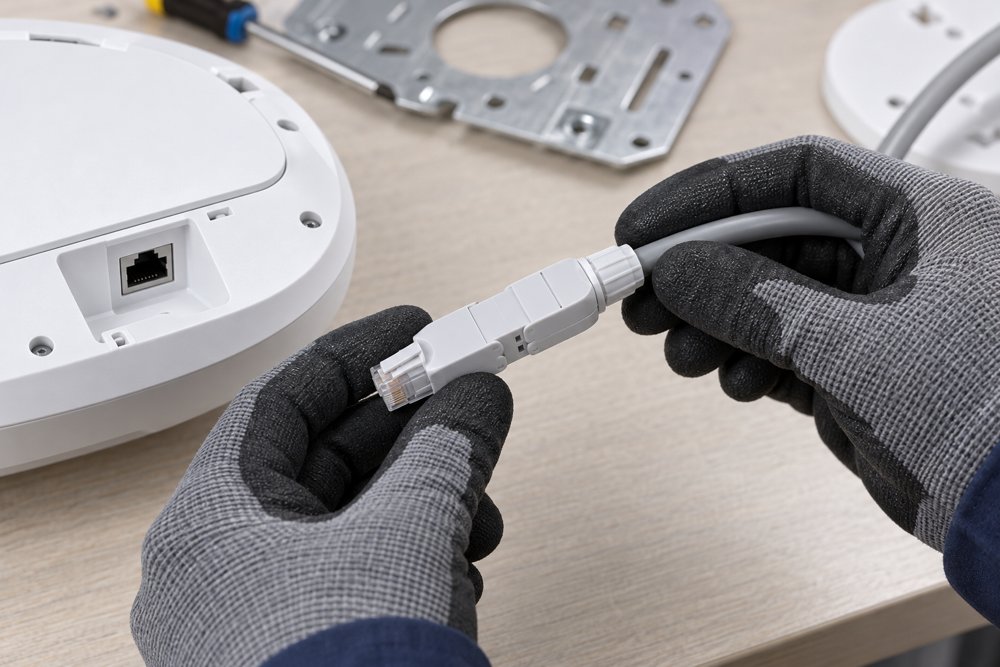

Installation and Acceptance Workflow
- Confirm the selected cable conductor diameter, insulation diameter and overall jacket OD against the field-plug datasheet.
- Choose one T568A or T568B wiring scheme for the complete project and keep pair untwist to the termination minimum.
- Provide strain relief so the device weight or service movement is not transferred to the IDC connection.
- Check the RJ45 plug body and boot against the equipment socket, enclosure depth and bend space.
- Test the completed MPTL with the project-specified Cat6A test configuration and retain the endpoint identifier in the report.
The ZION comparison of field termination plugs and keystone jacks provides additional guidance for deciding between direct connection and an outlet-based link.
Frequently Asked Questions
Is an MPTL the same as using a normal crimp plug on horizontal cable?
No. An MPTL uses a field-termination plug designed for the cable construction and project performance requirement. A generic patch-cord plug may not accept the conductor size or cable OD.
Can the ZC-603SU-C6A terminate 26 AWG cable?
The published conductor range for this model is 22, 23 and 24 AWG. A 26 AWG application requires a field-plug model and test data that explicitly cover that conductor size.
Can this field plug be used outdoors?
Use it only inside an enclosure suitable for the environmental exposure. Outdoor camera links may also require water sealing, UV-resistant cable, grounding and surge protection.
Check a Cat6A MPTL Configuration
Provide the device type, power requirement, cable OD, conductor size, installation environment, link length and required acceptance test so the direct-connect BOM can be reviewed.
