Complete Guide to CAT6 Ethernet Cable: Specifications, Uses & Buying Tips

■ What is CAT6 Ethernet Cable?

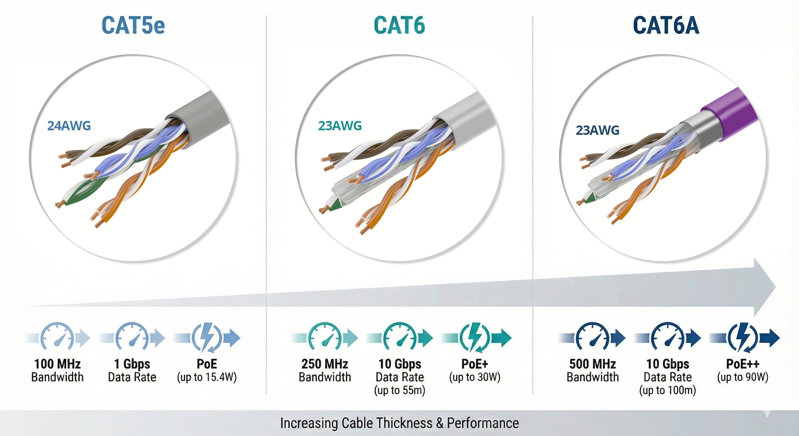

Cat6 (Category 6) is high-performance twisted pair cable that can be used to build Ethernet networks and is specified for other network physical layers. It ensures the data rates of 1 Gbps at 100 meters and up to 10 Gbps at shorter distances (which is less than 55 meters). Thanks to the larger inches of 250 MHz, it brings to the minimum crosstalk and system noise, which makes it the best choice for commercial and residential networking applications, compared to older standards such as Cat5e.

■ What Is CAT6 Cable Used For?

• Gigabit Ethernet Networking CAT6 cables serve as the standard for interpolation of Gigabit Ethernet (1 Gbps), and this intervention is relevant for contemporary networks that demand speedy and unwavering connectivity.

• Office and Data Center Infrastructure Commonly employed in enterprise domains, CAT6 cables associate devices, namely computers, switches, and servers to one another within structured cabling systems.

• Home Networking Ideal for 4K streaming, online gaming, and smart house devices, reliable internet is my number one recommendation.

• VoIP and Video Conferencing It has a high spectrum that supports non-compressed phone and video transfer, hence providing uninterrupted business and home calls.

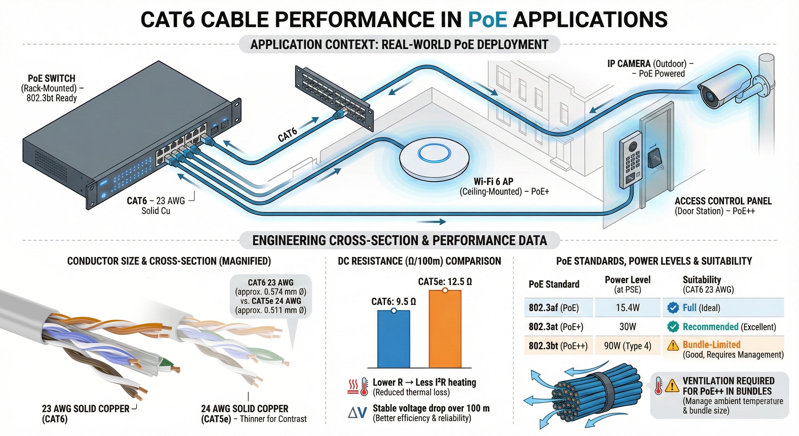

• Power over Ethernet (PoE) Specifically, CAT6 wires support PoE for devices like IP cameras, VoIP phones, and wireless access points—saving on cost, on time, and on connections.

• Multimedia Applications Therefore, transferring HD videos and transmitting audio files are big data streams that CAT6 can support.

■ CAT6 Cable Specifications

• Conductor Material 23 AWG Solid Bare Copper or Copper-Clad Aluminum (CCA)

• Bandwidth Up to 250 MHz

• Speed 1 Gbps (100m), 10 Gbps (up to 55m)

• Shielding Types U/UTP, F/UTP, SF/UTP, F/FTP, S/FTP

• Jacket Materials PVC, PE, LSZH, Plenum, Riser

• Certification Standards UL, ETL, CPR, CE, RoHS, REACH, ISO9001

• Reference Standards ISO/IEC 11801-1, ANSI/TIA-568.2-D, EN50399

• Connector Type RJ45 Modular Plug

■ CAT6 Shielding Types Explained

U/UTP (Unshielded Twisted Pair)

No covering. One of the most prevalent in low interference environment.

F/UTP

Shield around all pairs, works adequately even in moderately EMI rich areas.

SF/UTP

Incorporates foil and braided shield; suitable for high-noise areas.

F/FTP and S/FTP

Shielded pairs, appropriate for extremely high electromagnetic noise areas.

Armored CAT6

Features another protective layer against mechanical damaging and noise.

■ CAT6 Cable Connectors

The RJ45 Modular Plug comes in handy as the universal connector in CAT6 cable assemblies. It is compatible with nearly every network device on the market.

Here is a guide on how concrete it right the RJ45 connector

■ Testing Standards & Equipment

Testing Standards & Equipment To ensure performance, Zion Communication uses:

Fluke Testers (DSX2-8000, DTX-1800)

• Link testing (cabling system as a whole)

• Channel testing (single cable's piece)

Network Analyzers

• Quantify real-time operation in terms of distance (up to 305m)

■ Packaging Options

Inner Packing: PE bags or pull boxes

Outer Packing: Cartons or different export types of packaging

Customization is available options by means of OEM or bulk order requirements.

■ How to Choose the Right CAT6 Cable

Jacket Type:

• Plenum: Flame-retardant, suitable for air ducts.

• Riser: Designed for vertical installations within buildings.

• PVC: Least costly option in normal use.

• PE: Approved for outdoor installations and made flexible.

• LSZH: Low smoke and toxic emissions when subject to fire.

Conductor Material:

• Bare Copper: Displayed the highest performance and superior durability.

• CCA: The most affordable alternative, although less effective.

Shielding:

Select based upon electromagnetic levels of interference in your environment.

Length & Color:

Indicate the cable length according to project needs and choose code for color management.
