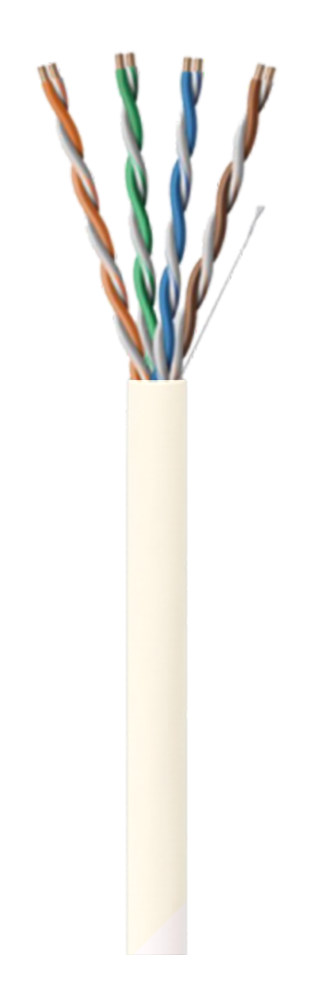

NO.7112205NOS U/UTP CAT 6 Without Spline-UL CMP

Key Information & Construction

SKU:

7112205NOS

UL Certificate Number:

E541136

Standards:

UL 444 & CSA C22.2 No.214
Communications Cables

Conductor Material:

Solid Bare Copper

Conductor Size:

23AWG/ 0.022" / 0.56±0.005mm

Pairs:

4 Pairs

Insulation:

0.0385" / 0.98±0.05 mm FEP

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Rip Cord:

Kevlar

Out Jacket:

Material: Plenum PVC

Wall Thickness: 0.0157". Nom(0.4mm)

OD:0.197"±0.008“ (5.00±0.2mm)

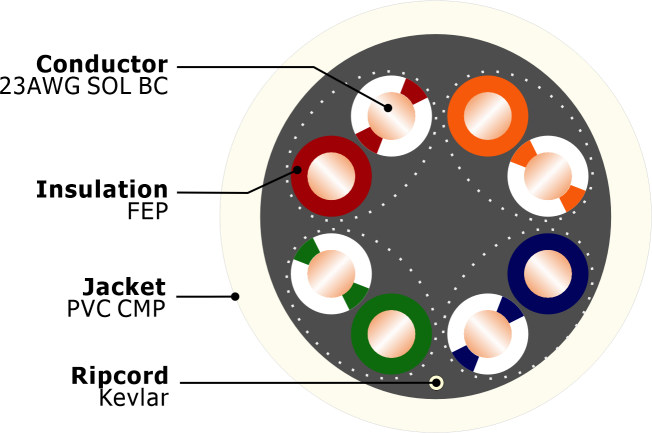

Cross Section

Application Support

· 1000BASE-T 、 1000BASE-TX、100BASE-T 、 100BASE-TX、100VG-AnyLAN、ATM

· 1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo、 POE Type1,2,3,4

Electrical Characteristics

DC Resistance

＜9.38 Ohms/100m @20℃

DC Resistance unbalance

5% @ 20℃

Mutual Capacitance

5.6 nF/100m

Characteristic Impedance

    1 - 100 MHz : 100±15 Ohms

101 - 250 MHz : 100±22 Ohms

Max Frequency

250MHz

Capacitance Unbalance

330 pF/100m

NVP(传输速率）

≥ 65%

Delay Skew

≤ 44ns/100m

Working Voltage

Typically up to 48V

Rated Voltage(V RMS)

300V

PHYSICAL PROPERTIES

Pulling Tension(Max)

25 lbs(110N)

Bend Radius(Min)

4 Times the cable diameter

Operating Temperature

-20 to 75 ℃ （-4 to 167℉）

Performance Characteristics

Frequency

Attenuation

NEXT
(dB)

ACRF
(dB)

PS.NEXT
(dB)

PS.ACRF
(dB)

RL
(dB)

Delay
(ns/100m)

Skew
(ns/100m)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

1.9

65.0

64.2

62.0

61.2

19.1

521.0

44.0

4

3.5

64.1

52.1

61.8

49.1

21.0

504.0

8

5.0

59.4

46.1

57.0

43.1

21.0

500.0

10

5.5

57.8

44.2

55.5

41.2

21.0

498.0

16

7.0

54.6

40.1

52.2

37.1

20.0

496.0

20

7.9

53.1

38.2

50.7

35.2

19.5

495.0

25

8.9

51.5

36.2

49.1

33.2

19.0

495.0

31.25

10.0

50.0

34.3

47.5

31.3

18.5

494.0

62.5

14.4

45.1

28.3

42.7

25.3

16.0

492.0

100

18.6

41.8

24.2

39.3

21.2

14.0

491.0

200

27.4

36.9

18.2

34.3

15.2

11.0

490.0

250

31.1

35.3

16.2

32.7

13.2

10.0

490.0

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HANGZHOU ZION  7112205NOS  U/UTP CAT6  4PR
23AWG SOLID  250MHZ   E541136  (UL)C(UL)
VERIFIED  TO  ANSI/TIA 568C.2  RoHS  COMPLIANT   ***FT

Inner Package

1000FT/Pull Box or Wooden Spool (or Per customer's request)

Outer Package

Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
