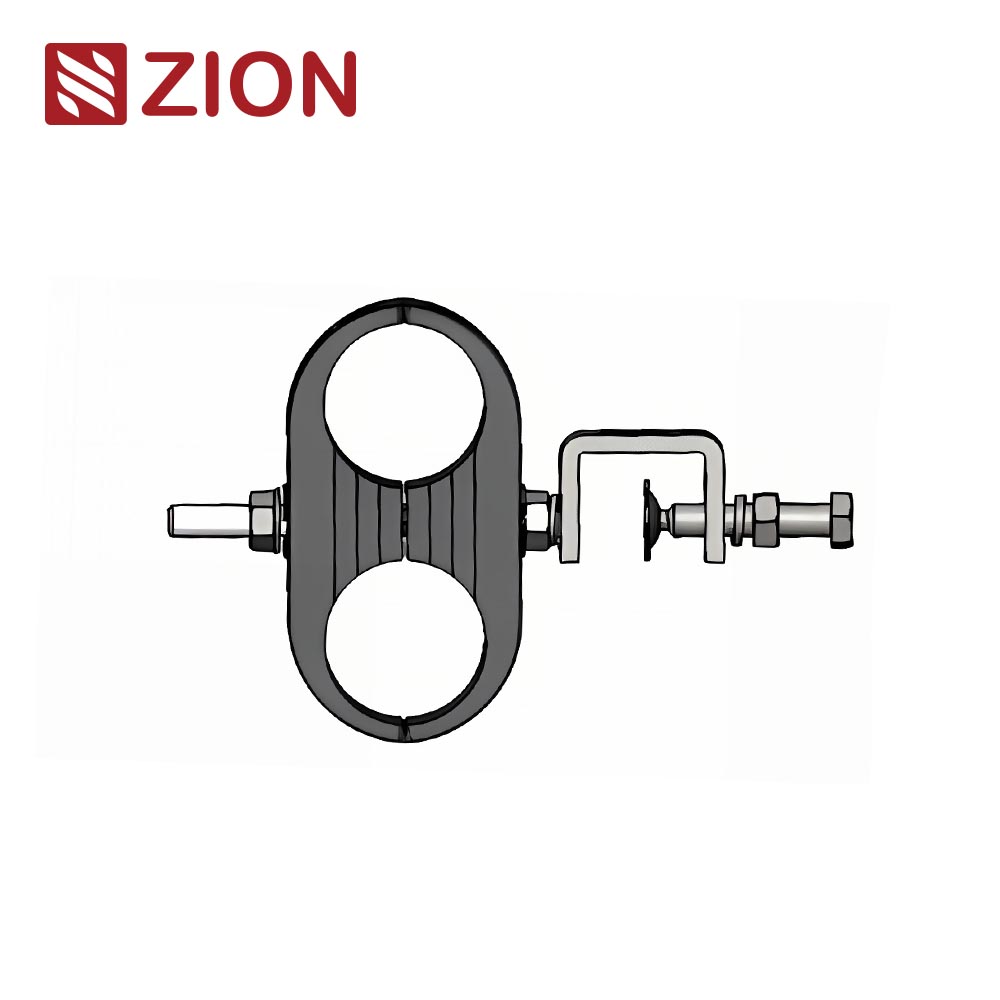

Feeder Cable Clamp, for 1-1/4" Cable, 2way

Name: Feeder Cable Clamp, for 1-1/4" Cable, 2way
Brand: hellosignal
Rating: 5.0 (49 reviews)

Model:
Feeder Cable Clamp
Brand:
hellosignal
Code:
ZFRFCC0241
Categories:
Feeder Cable Clamp
Delivery time:
Normally 25 working days
Port of Loading:
NINGBO, SHANGHAI
Term of payment:
T/T, L/C at sight, D/P at sight

Availability:



Inquire

Specification

Feeder Cable Clamp, for 1-1/4" Cable, 2way

SKU: ZFRFCC0241

Feeder Cable Clamp, for 1-1-4 Cable, 2way

■ Features

Easy and quick installation

Robust design & material for outdoor use

Operation Temperature -40~85 ℃

Suitable for cable type 1-1/4 in

■ General Specifications

ZION'S SKU	ZFRFCC0241
Metal Material	Stainless steel 304
Metal Color	Natural
Block Material	PP
Block Color	Black
Rubber Material	EPDM
Rubber Color	Black
Mounting	M8 hardware

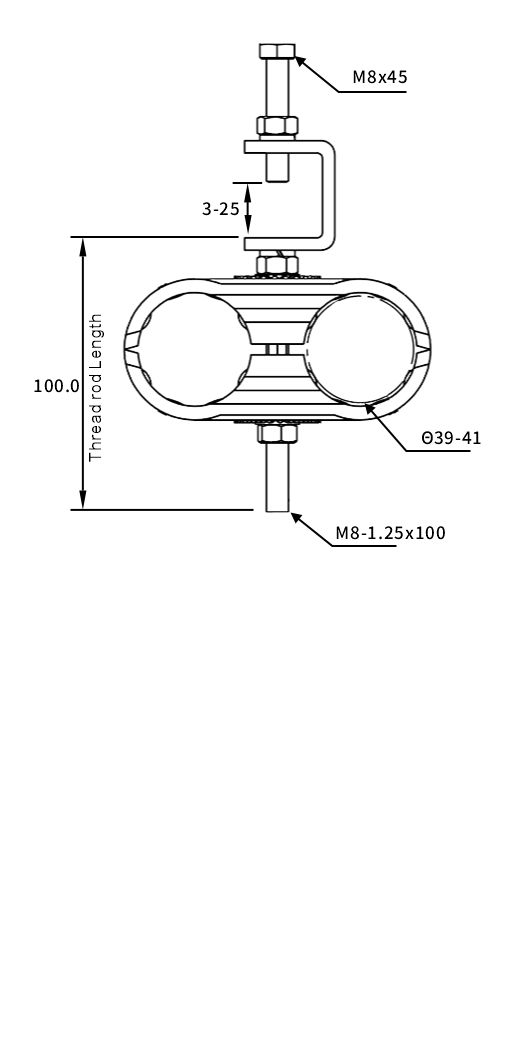

■ Dimensions

Height	44 mm \| 1.73 in
Width	113 mm \| 4.45 in
Length	175 mm \| 6.89 in
Thread rod Length	100.0 mm \| 3.93 in
Compatible Power cable OD	39-41 mm \|1.54 in -1.61 in
Normal Size	1-1/4

■ Environmental Specifications

Operating temperature	-40°C ~ 85°C
UV Resistance	≥720 Hours,base on ISO 4892.3-1994
Environmental Strength Cpability	Double Cable Weight

■ Packing and weights

Height,Packed	205mm \| 8.1 in
Width,Packed	325mm \| 12.8 in
Length,Packed	495mm \| 19.4 in
UOM	1PC
Packaging	Bag
Weight, gross	0.24 kg \| 0.53 lb

■ Certifications and Compliance

ISO 9001:2015	Designed,manufactured and/or distributed under this quality management system
RoHS	Compliant
