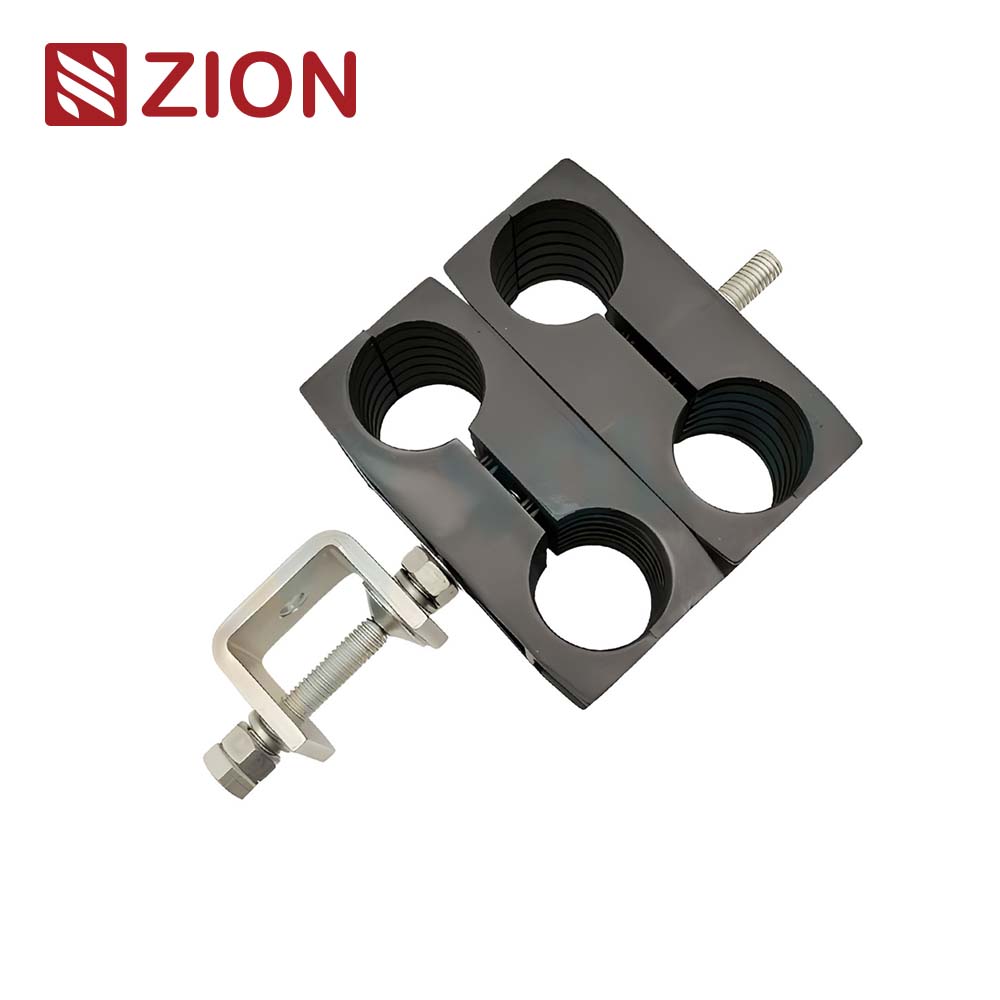

RF Feeder Cable Clamp for 1 1/4" 4Way, SUS304

Features:

Easy and quick installation

Robust design & material for outdoor use

Operation Temperature -40~85 ℃

Suitable for cable type 1 1/4 in

General Specifications:

ZION'S SKU

Z1-RFCC11404

Metal Material

SUS304/SUS201

Metal Color

Natural

Block Material

PP

Block Color

Black

Mounting

M8 hardware

Dimensions:

Height

44 mm | 1.73 in

Width

113 mm | 4.45 in

Length

225 mm | 8.86 in

Thread rod Length

150.0 mm | 5.90 in

Compatible  Cable OD

39-41 mm |1.54 in -1.61 in

Normal Size

1-1/4

Environmental Specifications:

Operating Temperature

-40°C ~ 85°C

Installation Temperature

-25°C ~ 55°C

UV Resistance

≥720 Hours,base on ISO 4892.3-1994

Environmental Strength Cpability

Double Cable Weight

Key Performance Metrics

Application

1 1/4"

Clamping Force

≥10N (Cable Dia. ≤16mm)

≥20N (Cable Dia. ＞16mm)

Plastic Compression Strength

≥500N (Cable Dia ＞16mm)

The Clamping range of C-Shaped Parts

≤27mm

UV Resistance

ASTM G154-06 Cycle 1

RoHS

Compliant

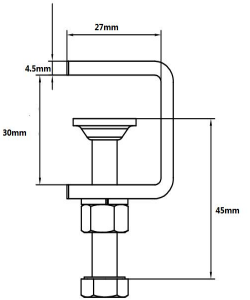

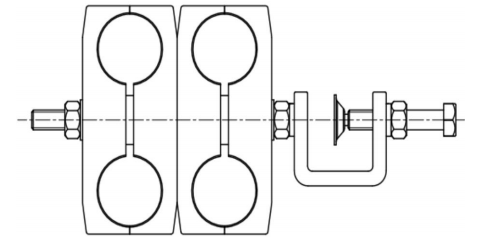

Structure Schematic Diagram & Parts List:

NO.

Name

Material Description

Model

QTY

1

Bolt M8*45mm

SUS304/SUS201

M8

1

2

Nut M8

SUS304/SUS201

M8

3

3

Spring Washer M8

SUS304/SUS201

M8

2

4

C-Frame

SUS304/SUS201

M8

1

5

Bowl Washer

SUS304/SUS201

M5

1

6

Plain Washer M8

SUS304/SUS201

M8

2

7

Plastic Cable Clamp

PP

4×1 1/4“

4

8

Threaded Rod M8×L

SUS304/SUS201

M8

1

Installation Instructions

a. Feeder Card Selection: Prior to installation, ensure the correct feeder card specification is selected, including 1/4 ", 1/2 ", 7/8 ", 5/4 ", 13/8 ", etc.

b. Fixture Tail Adjustment: Loosen the stainless steel M8 nut at the fixture tail until it reaches the end of the screw.

c. Feeder Positioning: After fully separating the plastic clamp, place the feeder inside, then retighten the loosened M8 nut to its original position and ensure it is firmly pressed.

d. Torque Control: During tightening, apply uniform force and do not exceed the safe torque value. (Reference torque: M8 = 8–10 N·m)

e. C-Shaped Support Installation: Loosen the special bolts with bowl pads on the C-shaped support. Once the opening size exceeds the thickness of fixed components (e.g., the angle iron edge of the steel tower), insert the C-shaped clamp and tighten the M8 bolts.

SKU & Main Metal

Z1-RFCC11404-304

RF Feeder Cable Clamp for 1 1/4" 4Way, SUS304

Z1-RFCC11404-201

RF Feeder Cable Clamp for 1 1/4" 4Way, SUS201

Z1-RFCC11404-23

RF Feeder Cable Clamp for 1 1/4" 4Way, Q23
