7100924 S-5C-FB

SKU:

7100924

Standards:

JIS C 3502
RoHS2

Inner Conductor Material

Annealed copper wire

Inner Conductor Size

1.05mm

Insulation Material

Foamed PE

Insulation Size

5.0mm

Shield 1

AL/PET Tape

Shield 2

Tinned Annealed Copper Wire

24×4×0.14mm

Jacket

Material: PVC

OD: 7.7±0.2mm

Application

Receiving Digital Broadcasting

Satellite Broadcasting

CATV (joint reception)

Connecting Monitoring Cameras

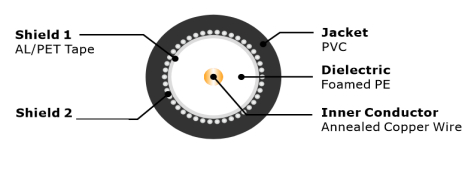

Cross Section:

Electrical Characteristics & Physical Properties:

Conductor resistance

21.1 Ω/km @20℃

Insulation resistance

1000 MΩ・km @20℃

Capacitance

56 nF/km

Characteristic impedance

75 ± 3 Ω

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation (dB/100m)

90 MHz

0.588

220 MHz

0.95

470 MHz

1.45

770 MHz

1.92

1300 MHz

2.61

1550 MHz

2.91

1770 MHz

3.15

2000 MHz

3.4

2150 MHz

3.55

2600Mhz

3.79

Order Informations:

Marking

HANGZHOU ZION 7100924 S-5C-FB COAXIAL CABLE
RoHS COMPLIANT ×××M

Package

100M/250M Roll Box or Wooden Spool (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
