Feeder Cable Clamp
hellosignal
ZFOPCCDM 2×7+2×22
Feeder Cable Clamp
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

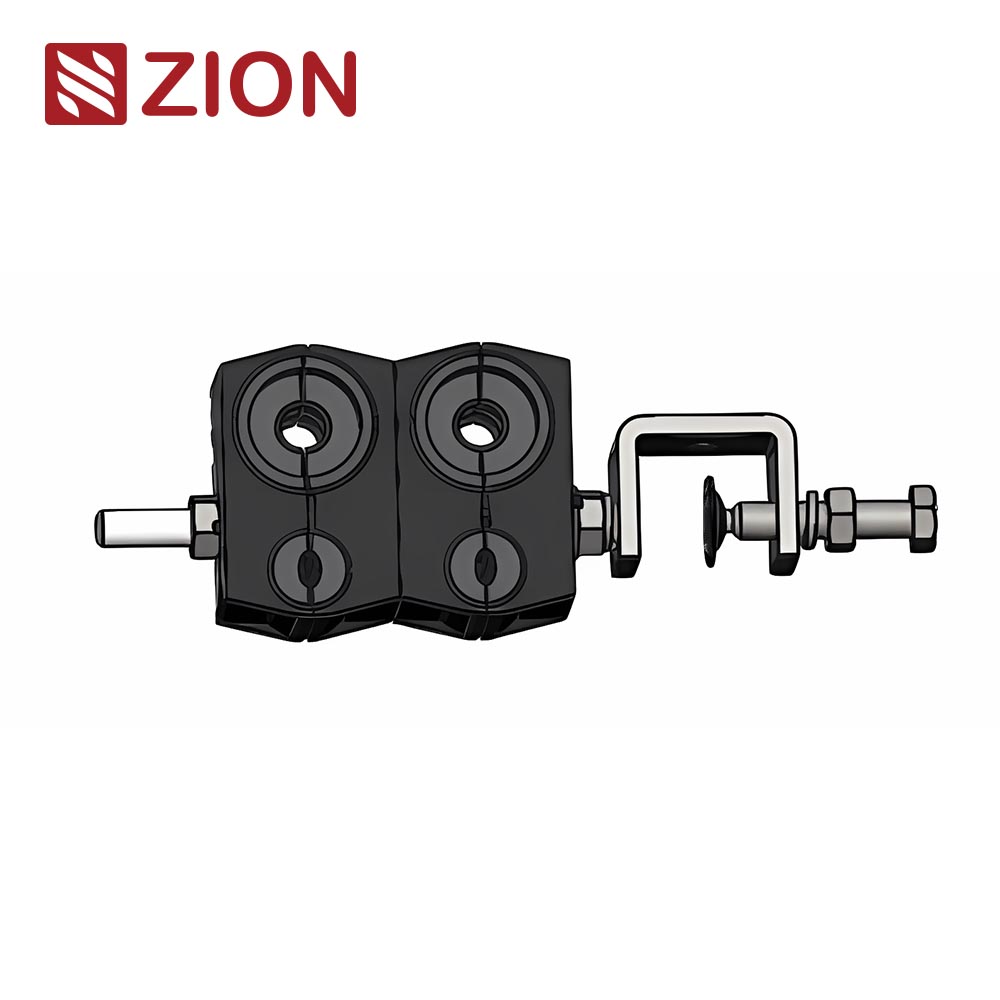

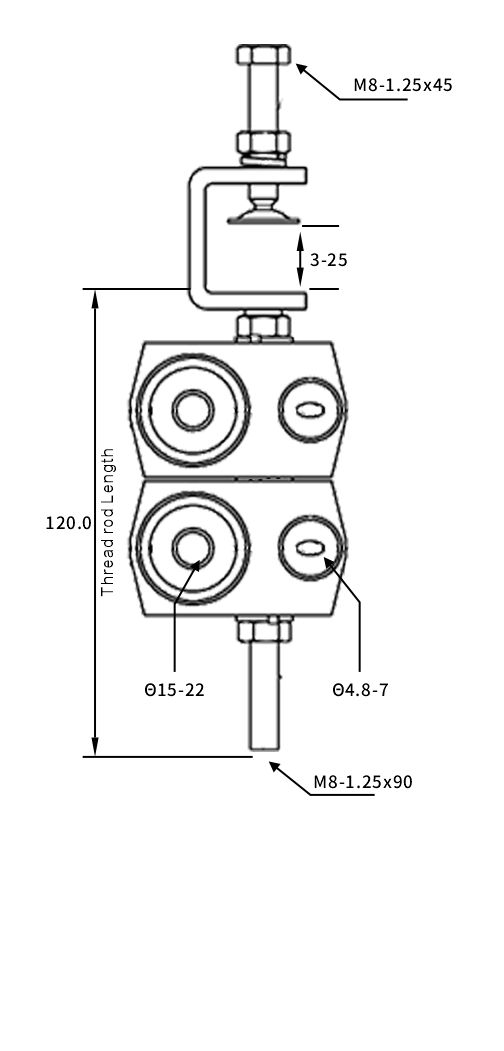

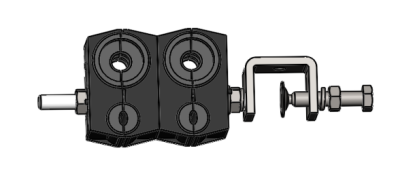

Feeder Cable Clamp, for 2x(4.8-7)+2x(15-22)mm Cable, 4Way
SKU: ZFOPCCDM 2×7+2×22
Easy and quick installation
Robust design & material for outdoor use
Operation Temperature -40~85 ℃
Suitable for cable type (4.8-7)+(15-22)mm
ZION'S SKU | ZFOPCCDM 2×7+2×22 |
Metal Material | Stainless steel 304 |
Metal Color | Natural |
Block Material | PP |
Block Color | Black |
Rubber Material | EPDM |
Rubber Color | Black |
Mounting | M8 hardware |
Height | 36 mm | 1.42 in |
Width | 61 mm | 2.40 in |
Length | 195 mm | 7.68 in |
Thread rod Length | 120.0 mm | 4.72 in |
Compatible Power cable OD | 15-22 mm | 0.59-0.86 in |
Compatible Optic Fiber cable OD | 4.8-7 mm | 0.18-0.28 in |
Operating temperature | -40°C ~ 85°C |
UV Resistance | ≥720 Hours,base on ISO 4892.3-1994 |
Environmental Strength Cpability | Double Cable Weight |
Height,Packed | 205mm | 8.1 in |
Width,Packed | 325mm | 12.8 in |
Length,Packed | 495mm | 19.4 in |
UOM | 1PC |
Packaging | Bag |
Weight, gross | 0.24 kg | 0.53 lb |
ISO 9001:2015 | Designed,manufactured and/or distributed under this quality management system |
RoHS | Compliant |
