GYAXTC8Y Figure-8 Steel wire Self-supporting Uni-tube with Aramid Yarns Fiber Optic Cable

GYAXTC8Y

Figure-8 Steel wire Self-supporting Uni-tube with Aramid Yarns

Fiber Optic Cable for Networks in Rural Areas Vast Countryside

■ Introduction:

Optical fibres are housed in aloose tube that is made of high-modulus plastic and filled with tube filling compound. The tube is surrounded with dry water blocking materials and armored with aramid yarns. A single steel wire or stranded steel wires are applied as the messenger. Finally, a figure-8 PE sheath is extruded.
In the distribution segment of optical networks in rural areas, the cable can be used as drop cables for self-supporting aerial installation to connect branching points with access points for subscribers.

■ Features:

Figure-8 design,easy for self-supporting aerial installation,reducing installation costs
Good mechanical and temperature performances
Small size,light weight and soft, easy for installation
Applicable to short distance self-supporting aerial installation

■ Product Series:

Feeder Segment

· Cable Type: GYTA/GYTS

· Design: Stranded Loose Tube

· Application:

Typically used for backbone feeder lines in long-distance communication systems.

High tensile strength and durability for outdoor environments.

Distribution Segment

· Cable Types and Features:

GYAXZY: Uni-tube Aramid LSZH Sheath

§ Ideal for indoor or outdoor distribution with flame-retardant properties.

GYGXZY: Uni-tube Glass Yarn PE Sheath

§ Designed for distribution with enhanced mechanical protection.

GTJGA: Slotted TBF APL CSM

§ Robust design with Aluminum Polyethylene Laminate (APL) and Central Strength Member (CSM).

GYFXBY: Flat-shape & Self-supporting Uni-tube

§ Easy to install with a flat shape for self-supporting applications.

GYAXTC8Y: Figure-8 Self-supporting Uni-tube Aramid

§ Figure-8 structure with aramid yarn for aerial installations.

GYFC8A-3U: 3-Unit FRP APL Figure-8 Self-supporting

§ Multi-unit structure for higher fiber capacity and aerial deployment.

Drop Segment

· Cable Type: GJXH

· Design: Bow-type drop cable

· Application:

o Used for last-mile fiber optic connections (drop segment) to homes or businesses.

o Lightweight, flexible, and easy to install.

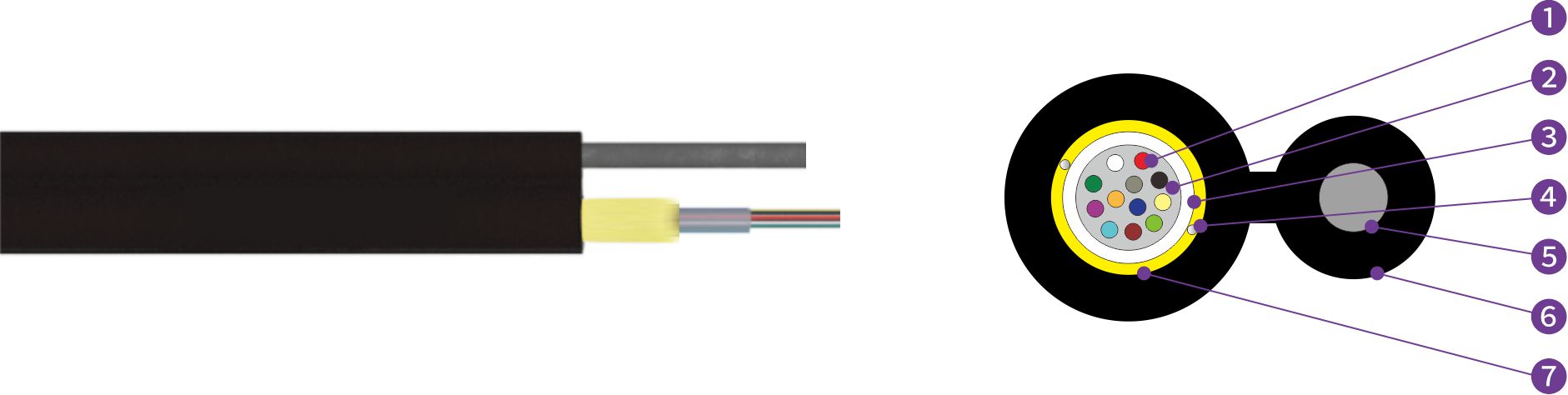

■ Cross Section:

1,Fibre  2,Tube Filling Compound  3,Loose Tube  4,Water Blocking Yarn  5,Steel Wire  6,PE Sheath  7,Aramid Yarn

■ Technical Characteristics:

Type: GYAXTC8Y-02-12Xn

· Diameter (mm): 5.4 × 9.5 (3.0 mm loose tube)

· Weight (kg/km): 45

· Diameter of Messenger Wire (mm): 1.6

· Tensile Strength (Long/Short Term): 600 N / 1500 N

· Crush Resistance (Long/Short Term): 300 N / 1000 N

Type: GYAXTC8Y-12-24Xn

· Diameter (mm): 5.6 × 9.8 (3.0 mm loose tube)

· Weight (kg/km): 45

· Diameter of Messenger Wire (mm): 1.6

· Tensile Strength (Long/Short Term): 600 N / 1500 N

· Crush Resistance (Long/Short Term): 300 N / 1000 N

■ Environmental Characteristics:

Transport/storage temperature: -40℃~70℃

■ Delivery Length:

Standard length:2000m;Other length availabe
