FRP CSM Double Sheath Aerial Installation
N/M
N/M
Aerial Installation
Figure 8 Self-Supporting
ISO9001
3km/Spool
Wooden Spool ，Φ1100*750mm
40km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.
GYFC8Y53

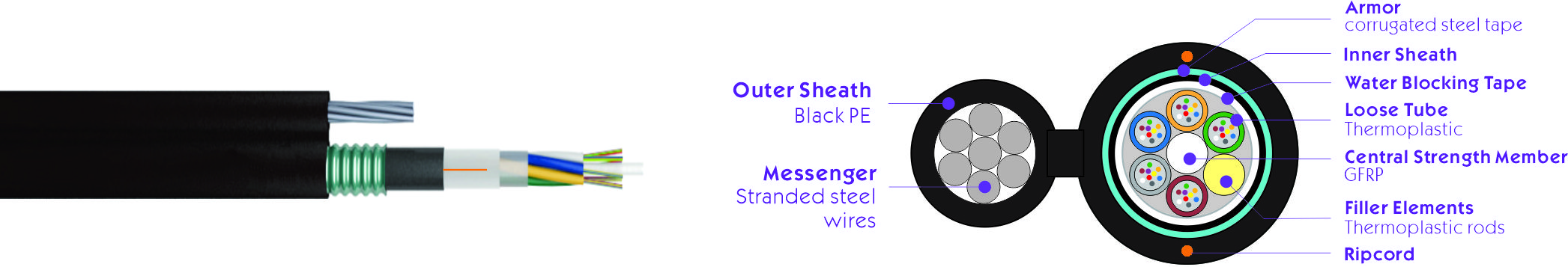

FRP CSM Double Sheath Aerial Installation Optical Fiber Cable
Figure-8 Self-supporting
High tensile resistance High crush resistance
Semi-dry core design, easy for installation and splice
Self-supporting aerial installation
Attenuation:
@1310nm: ≤0.36 dB/km
@1550nm: ≤0.22 dB/km
Bandwidth: Not applicable
Polarization Mode Dispersion (PMD):
Individual fiber: ≤0.20 ps/√km
Design link value (M=20, Q=0.01%): ≤0.1 ps/√km
Attenuation:
@1310nm: ≤0.40 dB/km
@1550nm: ≤0.23 dB/km
Bandwidth: Not applicable
Polarization Mode Dispersion (PMD):
Individual fiber: ≤0.20 ps/√km
Design link value (M=20, Q=0.01%): ≤0.1 ps/√km
Attenuation:
@850nm: ≤3.0 dB/km
@1300nm: ≤1.0 dB/km
Bandwidth:
@850nm: ≥500 MHz·km
@1300nm: ≥1000 MHz·km
Attenuation:
@850nm: ≤3.0 dB/km
@1300nm: ≤1.0 dB/km
Bandwidth:
@850nm: ≥200 MHz·km
@1300nm: ≥600 MHz·km
·Available counts: 24, 48, 72, 96, 144
· No. of Tubes × Fibers per Tube:
o 24 fibers: 4 × 6
o 48 fibers: 4 × 12
o 72 fibers: 6 × 12
o 96 fibers: 8 × 12
o 144 fibers: 12 × 12
· Outer Diameter (mm):
o 24 fibers: 1.9 mm
o All others: 2.4 mm
· Material: FRP (Fiber Reinforced Plastic)
· Diameter (mm):
o 24, 48 fibers: 2.0 mm
o 72, 96, 144 fibers: 2.6 mm
· Coated CSM Diameter (mm):
o 96 fibers: 4.2 mm
o 144 fibers: 4.8 mm
· Material: Water Blocking Tape & Yarn
· Thickness (mm): Nominal: 1.0 mm
· Material: Corrugated Steel Tape
· Structure and Diameter (mm): 7 × 1.6
· Thickness (mm): Nominal: 2.0 mm
· Cable Diameter (mm) Approx.:
o 24 fibers: 13.4 / 24.4 mm
o 48 fibers: 15.0 / 26.0 mm
o 72 fibers: 15.4 / 26.4 mm
o 96 fibers: 16.8 / 27.8 mm
o 144 fibers: 20.2 / 31.2 mm
· Cable Weight (kg/km) Approx.:
o 24 fibers: 270 kg/km
o 48 fibers: 320 kg/km
o 72 fibers: 350 kg/km
o 96 fibers: 390 kg/km
o 144 fibers: 420 kg/km
· Operating Temperature Range (℃): -40 to +70
· Tensile Strength (Short/Long Term): 8000 N / 2700 N
· Crush Resistance (Short/Long Term): 3000 N / 900 N
