PSP Armored Uni-tube Aerial Installation
N/M
N/M
Aerial Installation
Figure 8 Self-Supporting
ISO9001
3km/Spool
Wooden Spool ，Φ1100*750mm
40km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.

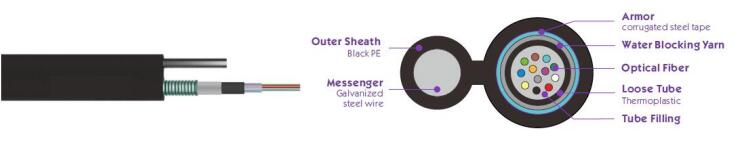

GYXTC8S-Small
PSP Armored Uni-tube Aerial Installation Optical Fiber Cable
Figure-8 Self-supporting
Good mechanical and environmental Performances.
Small size and light weight, easy for installation.
Self-supporting aerial installation.
· @850 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≤3.0 dB/km
o 62.5/125 µm: ≤3.0 dB/km
· @1300 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≤1.0 dB/km
o 62.5/125 µm: ≤1.0 dB/km
· @1310 nm:
o G.652.D: ≤0.36 dB/km
o G.655: ≤0.40 dB/km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
· @1550 nm:
o G.652.D: ≤0.22 dB/km
o G.655: ≤0.23 dB/km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
· @850 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≥500 MHz·km
o 62.5/125 µm: ≥200 MHz·km
· @1300 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≥1000 MHz·km
o 62.5/125 µm: ≥600 MHz·km
· Individual Fiber:
o G.652.D: ≤0.20 ps/√km
o G.655: ≤0.20 ps/√km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
· Design Link Value (M=20, Q=0.01%):
o G.652.D: ≤0.1 ps/√km
o G.655: ≤0.1 ps/√km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
Fiber Count:
o 2, 4, 6, 12, 18, 24
Loose Tube:
o Outer Diameter (mm):
§ 3.0 (for 2, 4, 6, 12 fibers)
§ 3.2 (for 18, 24 fibers)
Steel Wire:
o Material: Galvanized Steel Wire
o Diameter (mm): 1.6
Sheath:
o Thickness (mm): Nominal: 0.8
Cable Dimensions:
o Cable Diameter (mm): Approx. 7.0 × 13.0 mm
o Cable Weight (kg/km): Approx. 82
· Operating Temperature Range (°C): -40 ~ +70
· Tensile Strength (Short/Long Term): 500 N / 600 N
· Crush Resistance (Short/Long Term): 1000 N/100mm / 300 N/100mm
· The color arrangement of fiber and tubes follows the color identification table.
· Custom structures and fiber counts are available upon request.
