Light Armored Self-supporting Figure 8
N/M
N/M
Aerial Installation
Figure 8 Self-Supporting
ISO9001
3km/Spool
Wooden Spool ，Φ1100*750mm
40km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.

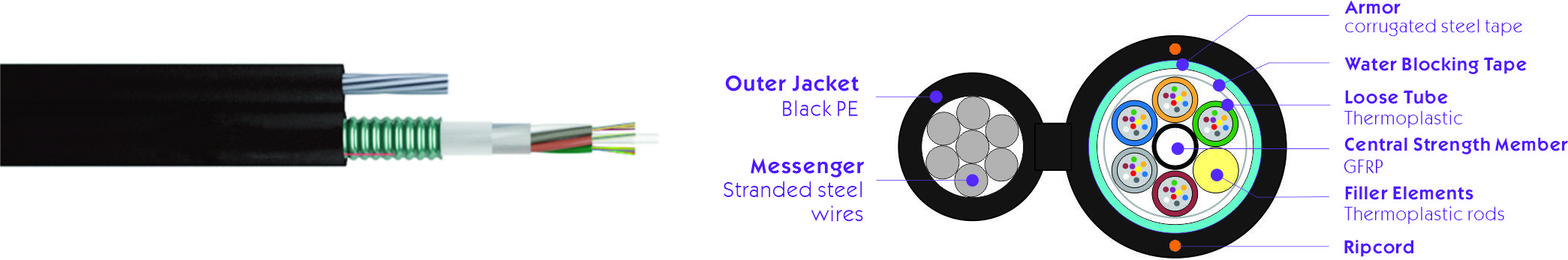

GYFC8S Light Amored Self-supporting Figure 8 Cable
High tensile resistance
High crush resistance
Self-supporting aerial installation
Semi-dry core design, easy for installation and splice
· @850 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≤3.0 dB/km
o 62.5/125 µm: ≤3.0 dB/km
· @1300 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≤1.0 dB/km
o 62.5/125 µm: ≤1.0 dB/km
· @1310 nm:
o G.652.D: ≤0.36 dB/km
o G.655: ≤0.40 dB/km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
· @1550 nm:
o G.652.D: ≤0.22 dB/km
o G.655: ≤0.23 dB/km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
· @850 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≥500 MHz·km
o 62.5/125 µm: ≥200 MHz·km
· @1300 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≥1000 MHz·km
o 62.5/125 µm: ≥600 MHz·km
· Individual Fiber:
o G.652.D: ≤0.20 ps/√km
o G.655: ≤0.20 ps/√km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
· Design Link Value (M=20, Q=0.01%):
o G.652.D: ≤0.1 ps/√km
o G.655: ≤0.1 ps/√km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
Fiber Count:
o 24, 48, 72, 96, 144
Loose Tube:
o Number of Tubes × Fibers per Tube:
§ 4 × 6 (for 24 fibers)
§ 4 × 12 (for 48 fibers)
§ 6 × 12 (for 72 fibers)
§ 8 × 12 (for 96 fibers)
§ 12 × 12 (for 144 fibers)
o Outer Diameter (mm):
§ 1.9 (for 24 fibers)
§ 2.4 (for 48, 72, 96, 144 fibers)
Central Strength Member (CSM):
o Material: FRP
o Diameter (mm):
§ 2.0 (for 24, 48 fibers)
§ 2.6 (for 72, 96, 144 fibers)
o Coated CSM Diameter (mm):
§ 4.2 (for 96 fibers)
§ 7.4 (for 144 fibers)
Water Blocking Material:
o Type: Water Blocking Tape & Yarn
Inner Sheath:
o Thickness (mm): Nominal: 1.0
Armor:
o Material: Corrugated Steel Tape
Messenger Wire:
o Structure and Diameter (mm): 7 × 1.6
Outer Sheath:
o Thickness (mm): Nominal: 1.8
Cable Diameter (mm) Approx.:
o 11.1 × 22.1 mm (for 24 fibers)
o 12.1 × 23.1 mm (for 48 fibers)
o 12.6 × 23.6 mm (for 72 fibers)
o 14.6 × 25.6 mm (for 96 fibers)
o 17.6 × 28.6 mm (for 144 fibers)
Cable Weight (kg/km) Approx.:
o 280 (for 24 fibers)
o 310 (for 48 fibers)
o 330 (for 72 fibers)
o 370 (for 96 fibers)
o 440 (for 144 fibers)
· Operating Temperature Range (°C): -40 ~ +70
· Tensile Strength (Short/Long Term): 8000 N / 2700 N
· Crush Resistance (Short/Long Term): 2000 N/100mm / 600 N/100mm
GYFC8S Light Amored Self-supporting Figure 8 Cable
High tensile resistance
High crush resistance
Self-supporting aerial installation
Semi-dry core design, easy for installation and splice
· @850 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≤3.0 dB/km
o 62.5/125 µm: ≤3.0 dB/km
· @1300 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≤1.0 dB/km
o 62.5/125 µm: ≤1.0 dB/km
· @1310 nm:
o G.652.D: ≤0.36 dB/km
o G.655: ≤0.40 dB/km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
· @1550 nm:
o G.652.D: ≤0.22 dB/km
o G.655: ≤0.23 dB/km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
· @850 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≥500 MHz·km
o 62.5/125 µm: ≥200 MHz·km
· @1300 nm:
o G.652.D: N/A
o G.655: N/A
o 50/125 µm: ≥1000 MHz·km
o 62.5/125 µm: ≥600 MHz·km
· Individual Fiber:
o G.652.D: ≤0.20 ps/√km
o G.655: ≤0.20 ps/√km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
· Design Link Value (M=20, Q=0.01%):
o G.652.D: ≤0.1 ps/√km
o G.655: ≤0.1 ps/√km
o 50/125 µm: N/A
o 62.5/125 µm: N/A
Fiber Count:
o 24, 48, 72, 96, 144
Loose Tube:
o Number of Tubes × Fibers per Tube:
§ 4 × 6 (for 24 fibers)
§ 4 × 12 (for 48 fibers)
§ 6 × 12 (for 72 fibers)
§ 8 × 12 (for 96 fibers)
§ 12 × 12 (for 144 fibers)
o Outer Diameter (mm):
§ 1.9 (for 24 fibers)
§ 2.4 (for 48, 72, 96, 144 fibers)
Central Strength Member (CSM):
o Material: FRP
o Diameter (mm):
§ 2.0 (for 24, 48 fibers)
§ 2.6 (for 72, 96, 144 fibers)
o Coated CSM Diameter (mm):
§ 4.2 (for 96 fibers)
§ 7.4 (for 144 fibers)
Water Blocking Material:
o Type: Water Blocking Tape & Yarn
Inner Sheath:
o Thickness (mm): Nominal: 1.0
Armor:
o Material: Corrugated Steel Tape
Messenger Wire:
o Structure and Diameter (mm): 7 × 1.6
Outer Sheath:
o Thickness (mm): Nominal: 1.8
Cable Diameter (mm) Approx.:
o 11.1 × 22.1 mm (for 24 fibers)
o 12.1 × 23.1 mm (for 48 fibers)
o 12.6 × 23.6 mm (for 72 fibers)
o 14.6 × 25.6 mm (for 96 fibers)
o 17.6 × 28.6 mm (for 144 fibers)
Cable Weight (kg/km) Approx.:
o 280 (for 24 fibers)
o 310 (for 48 fibers)
o 330 (for 72 fibers)
o 370 (for 96 fibers)
o 440 (for 144 fibers)
· Operating Temperature Range (°C): -40 ~ +70
· Tensile Strength (Short/Long Term): 8000 N / 2700 N
· Crush Resistance (Short/Long Term): 2000 N/100mm / 600 N/100mm
