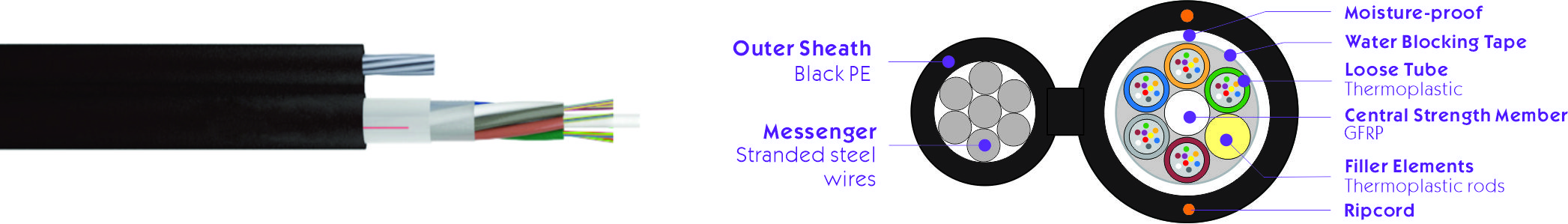

GYFTC8A FRP CSM Aluminum Armored Aerial Installation Figure-8 Self-supporting Optical Cable

GYFTC8A |GYTC8A

FRP CSM Aluminum Armored Aerial Installation Optical Fiber Cable Figure-8 Self-supporting

Application:

High tensile strength

Self-supporting aerial installation

Characteristics:

G.652.D

G.655

50/125um

62.5/125um

Attenuation

@850nm

-

-

≤3.0 dB/km

≤3.0 dB/km

@1300nm

-

-

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

-

-

@1550nm

≤0.22 dB/km

≤0.23 dB/km

-

-

Bandwidth

@850nm

-

-

≥500 MHz · km

≥200 MHz · km

@1300nm

-

-

≥1000 MHz · km

≥600 MHz · km

Polarization
mode
dispersion

lndividual fibre

≤0.20 ps/√km

≤0.20 ps/√km

-

-

Design link value
(M=20,Q=0.01%)

≤0.1 ps/√km

≤0.1 ps/√km

-

-

Technical Data:

Item

Contents

Value

Fiber Count

24

48

72

96

144

288

Loose Tube

No.of tubes*fibres per tube

4*6

4*12

6*12

8*12

12*12

24*12

Outer diameter (mm)

1.9

2.4

2.4

2.4

2.4

2.4

Central Strength
member

Material

FRP|Steel

Diameter (mm)

2.0

2.0

2.6

2.6

2.6

2.6

Coated CSM diameter (mm)

-

-

-

4.2

7.4

4.8

Water Blocking material

Material

Cable filling compound

Moisture-proof

Material

Laminated aluminum tape

Messenger Wire

Structure and diameter (mm)

7*1.6

Sheath

Thickness (mm)

Nominal:1.8

Cable diameter(mm)Approx.

10.2/*21.2mm

10.6/*21.6mm

11.4/*22.4mm

13.6/*24.6mm

16.4/*27.4mm

19.5/*30.5mm

Cable weight(kg/km)Approx.

220±10

250±10

270±10

310±10

360±10

450±10

Operating temperature range(℃)

-40~+70

Tensile Strength Short/ Long Term(N)

8000/2700

Crush resistanoe short/long term (N/100mm)

1000/300

The colour arrangement of fibre and tube is specified in the colour identification table.

Other structure and fibre count are also available according to customer requirements.
