H03VV-F Flexible Cable | |||||||||||||||||||||||||
Application: | Cable Standards: | ||||||||||||||||||||||||
PVC Flex cable is used as an electrical supply to | EN 50525-2-11, EN 60228 | ||||||||||||||||||||||||
Flame Retardant according to IEC/EN 60332-1-2 | |||||||||||||||||||||||||
Product Description: | |||||||||||||||||||||||||
Conductor | Plain annealed flexible stranded copper conductor class5 | ||||||||||||||||||||||||
Insulation | Polyvinyl Chloride (PVC) | ||||||||||||||||||||||||
Sheath | Polyvinyl Chloride (PVC) | ||||||||||||||||||||||||
Characteristics: | |||||||||||||||||||||||||
Voltage Rating Uo/U | H05V-K: 300/500V | ||||||||||||||||||||||||
Temperature Rating | +5°C to +70°C | ||||||||||||||||||||||||
Minimum Bending Radius | Fixed: 6 x overall diameter | ||||||||||||||||||||||||

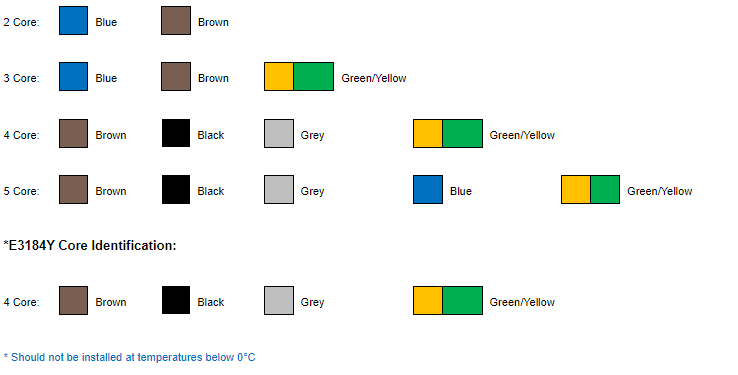

Core Identification: | |||||||||||||||||||||||||
2 Core: | Blue | Brown | |||||||||||||||||||||||
3 Core: | Blue | Brown | Green/Yellow | ||||||||||||||||||||||
4 Core: | Brown | Black | Grey | Green/Yellow | |||||||||||||||||||||
5 Core: | Brown | Black | Grey | Blue | Green/Yellow | ||||||||||||||||||||
*E3184Y Core Identification: | |||||||||||||||||||||||||
4 Core: | Brown | Black | Grey | Green/Yellow | |||||||||||||||||||||
Should not be installed at temperatures below 0°C | |||||||||||||||||||||||||

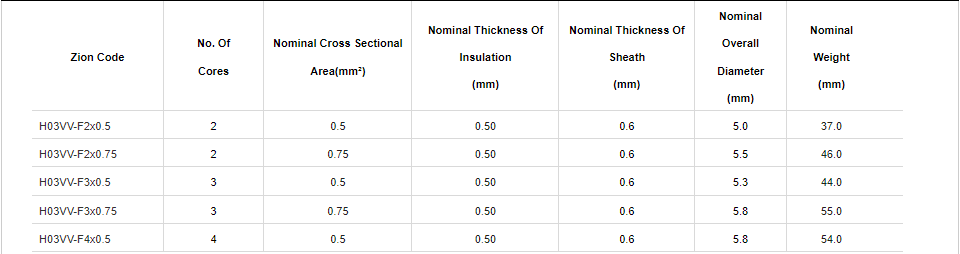

Dimensions: | |||||||||||||||||||||||||
Zion Code | No. Of | Nominal Cross Sectional Area(mm²) | Nominal Thickness Of Insulation | Nominal Thickness Of Sheath | Nominal Overall Diameter | Nominal Weight | |||||||||||||||||||
H03VV-F2x0.5 | 2 | 0.5 | 0.50 | 0.6 | 5.0 | 37.0 | |||||||||||||||||||
H03VV-F2x0.75 | 2 | 0.75 | 0.50 | 0.6 | 5.5 | 46.0 | |||||||||||||||||||
H03VV-F3x0.5 | 3 | 0.5 | 0.50 | 0.6 | 5.3 | 44.0 | |||||||||||||||||||
H03VV-F3x0.75 | 3 | 0.75 | 0.50 | 0.6 | 5.8 | 55.0 | |||||||||||||||||||
H03VV-F4x0.5 | 4 | 0.5 | 0.50 | 0.6 | 5.8 | 54.0 | |||||||||||||||||||
Conductors: | |||||||||||||||||||||||||

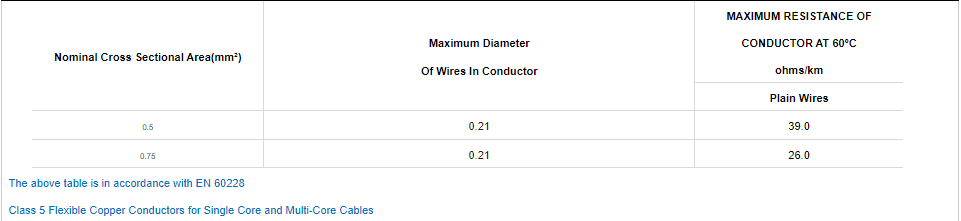

Nominal Cross Sectional Area(mm²) | Maximum Diameter | MAXIMUM RESISTANCE OF CONDUCTOR AT 60ºC | |||||||||||||||||||||||
Plain Wires | |||||||||||||||||||||||||
0.5 | 0.21 | 39.0 | |||||||||||||||||||||||
0.75 | 0.21 | 26.0 | |||||||||||||||||||||||
The above table is in accordance with EN 60228 | |||||||||||||||||||||||||

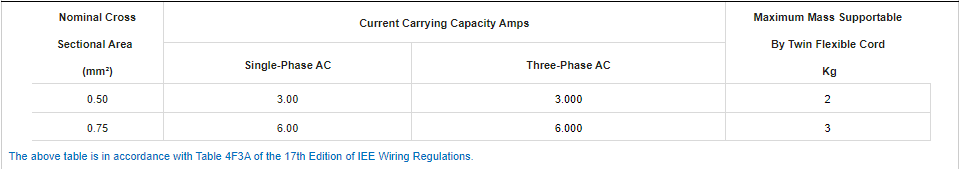

Current Carrying Capacity | |||||||||||||||||||||||||
Nominal Cross | Current Carrying Capacity Amps | Maximum Mass Supportable | |||||||||||||||||||||||
Single-Phase AC | Three-Phase AC | ||||||||||||||||||||||||
0.50 | 3.00 | 3.000 | 2 | ||||||||||||||||||||||
0.75 | 6.00 | 6.000 | 3 | ||||||||||||||||||||||
The above table is in accordance with Table 4F3A of the 17th Edition of IEE Wiring Regulations. | |||||||||||||||||||||||||

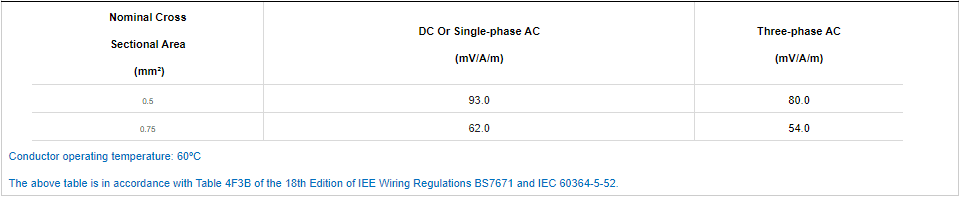

Voltage Drop: | |||||||||||||||||||||||||
Nominal Cross | DC Or Single-phase AC | Three-phase AC | |||||||||||||||||||||||
0.5 | 93.0 | 80.0 | |||||||||||||||||||||||
0.75 | 62.0 | 54.0 | |||||||||||||||||||||||
Conductor operating temperature: 60ºC |
