H03W-F 300V/300V European Standard Fixed Installation Cable

European Standard Fixed
Installation Cable H03W-F 300V/300V

■ Application:

This cable is used as control and connecting cables for electrical equipment. It applies to machine tools and complete sets of equipment for fixed installation.



■ Cable Construction:

Conductors: flexible ultra-fine stranded copper wire

Insulation: flexible oil and heat-resistant PVC

Insulation color:

Two cores: black, white

Three cores: black, white, red

Four cores: black, white, red, green

Five cores: black, white, red, green, brown

Jacket: flexible heat-resistant PVC mixture

Product reference standard: EN50525

■ Product Feature:

Good performance of flame retardant

Flame retardant according to IEC60332-1

■ Technical data:

Temperature Range:

Bend: -5℃~＋70℃

Static: -15℃~＋70℃

Rated Voltage:

H03VV-F  300/300V

H05VV-F  300/500V

Test Voltage:

H03VV-F    AC   2000V/5min;

H05VV-F    AC   2000V/5min;

Insulation resistance:

20℃ ≥10MΩ/km

Min bending radius:

Fixed:7.5D(D=cable diameter)

■ Cross Section:

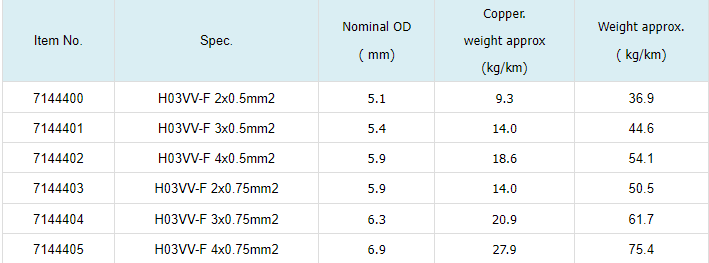

■ Product list:

■ Order Information:

Marking: HELLOSIGNAL European Standard Fixed Installation Cable        H03W-F 300V/300V XXXFT/M

Package: 100M/Reel, 300M/Wooden Spool

Delivery time: Normally 25 days after receiving the deposit.

Brand: HELLOSIGNAL® OR OEM
