RV Electrica Installation Cable

▉ Application

This cable is suitable for controling and connecting electrical equipments and used as control and connecting cables in mechanical equipmen↑s. It apply to power dlstribution box or be used as electronlc cable for transmission.

▉ Cable Construction

Conductors:  flexible stranded copper wire

Insulation:Heat and flame resistant PVC

Color:black,white,blue,red,green,yellow,yellow/green ect.

Produet reference standard:GB/T5023; GA 306.1

▉ Product Feature

    Good mechanical properties

    RV:Fire resistance meets IEC60332-1

▉ Technical data

     Temperature Range

Static    : -15℃~＋70℃

     Rated Voltage

IEC/VDE  ＜ 1.5mm² ;300/500V

IEC/VDE  ≥ 1.5mm² ;450/750V

     Test Voltage

＜ 1.5mm² : 2000V/5min;

≥1.5mm² : 2500V/5min;

▉ Cross Section

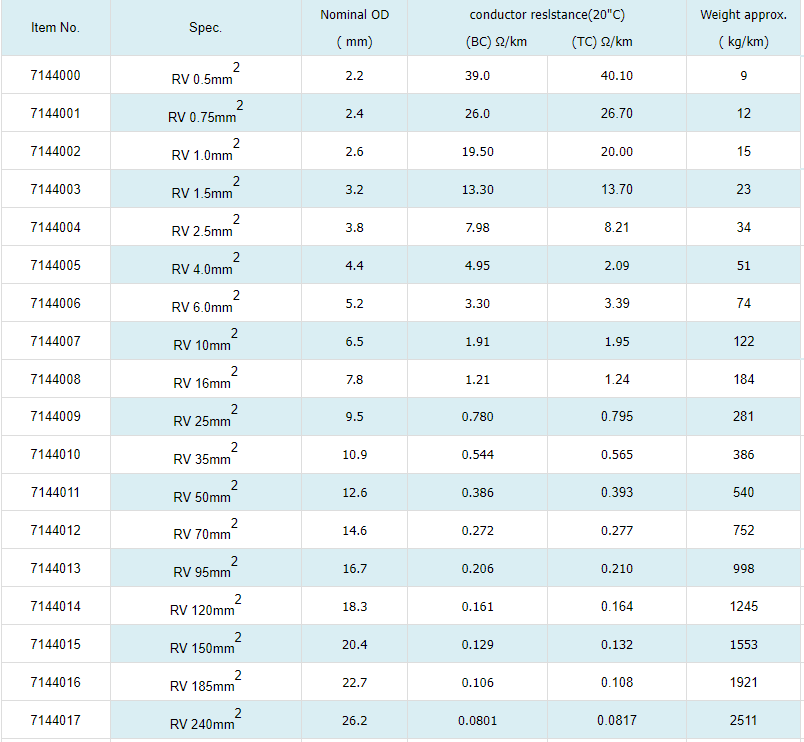

▉ Product List

Item No.

Spec.

Nominal OD
( mm)

conductor reslstance(20"C)
 (BC) Ω/km           (TC) Ω/km

Weight approx.
( kg/km)

7144000

RV 0.5mm²

2.2

39.0

40.10

9

7144001

RV 0.75mm²

2.4

26.0

26.70

12

7144002

RV 1.0mm²

2.6

19.50

20.00

15

7144003

RV 1.5mm²

3.2

13.30

13.70

23

7144004

RV 2.5mm²

3.8

7.98

8.21

34

7144005

RV 4.0mm²

4.4

4.95

2.09

51

7144006

RV 6.0mm²

5.2

3.30

3.39

74

7144007

RV 10mm²

6.5

1.91

1.95

122

7144008

RV 16mm²

7.8

1.21

1.24

184

7144009

RV 25mm²

9.5

0.780

0.795

281

7144010

RV 35mm²

10.9

0.544

0.565

386

7144011

RV 50mm²

12.6

0.386

0.393

540

7144012

RV 70mm²

14.6

0.272

0.277

752

7144013

RV 95mm²

16.7

0.206

0.210

998

7144014

RV 120mm²

18.3

0.161

0.164

1245

7144015

RV 150mm²

20.4

0.129

0.132

1553

7144016

RV 185mm²

22.7

0.106

0.108

1921

7144017

RV 240mm²

26.2

0.0801

0.0817

2511

▉ Order Informations

Marking

HELLOSIGNAL Electrica Installation Cable(RV)  XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
