Product Description
Electrical lnstallation Cable(RVV) | ||||||||
▉ Application | ||||||||
This cable is used as control and connec↑ing cables for electrical equipment.It apply to machine tool and complete sets of equipment for fixed installation. | ||||||||
▉ Cable Construction | ||||||||
Conductors: flexible ultra-fine stranded copper wire | ||||||||
Insulation:flexible heat resistant PVC | ||||||||
Insulation Color: | Two core:black,white | |||||||
Three core:blue,brown,yellow/green | ||||||||
Four:black,blue,brown,yellow/green | ||||||||
Five core and above:black insulated wire print white font | ||||||||
Filler:cotton or pp filler | ||||||||
Jacket:flexble heat reslatant PVC mlxture | ||||||||
Produet reference standard:GB/T5023; JB8734 | ||||||||
Note:Cable having more than 3 core contain yellow/green wire | ||||||||
▉ Product Feature | ||||||||
Good mechanical properties | ||||||||
Good capabillity of electric insulation and resistant to chemicals | ||||||||
Fire resistance meets IEC60332-1 | ||||||||
▉ Cross Section | ||||||||
▉ Technical data | ||||||||
Temperature Range | Bend: : -5℃~+70℃ | |||||||
Static : -15℃~+70℃ | ||||||||
Rated Voltage | CCC : 300/300V 300/500V | |||||||
IEC/VDE < 1.5mm² ;300/300V | ||||||||
IEC/VDE ≥ 1.5mm² ;300/500V | ||||||||
Test Voltage | ≥0.5mm² 2500V/5min; | |||||||
Insulation resistance | 20℃ ≥ 10MΩ/km | |||||||
Min bending radius | ||||||||
Fixed | 6D(D=cable diameter) | |||||||
Moving | 15D(D=cable diameter) | |||||||
Torsion angle | ±90°/m | |||||||
Moving: | ±90°/m | |||||||

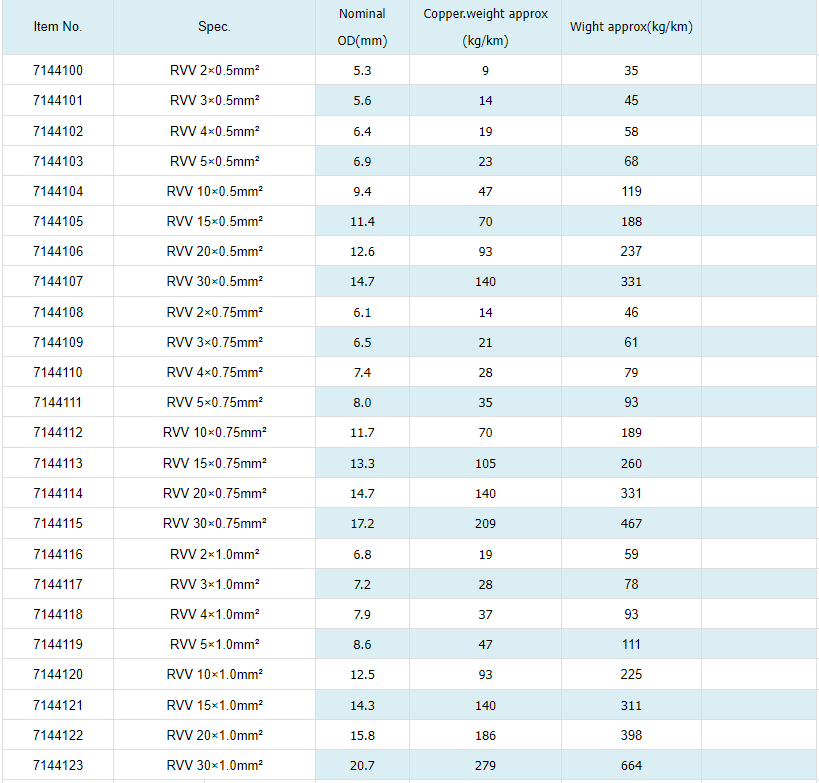

▉ Product List | ||||||||
Item No. | Spec. | Nominal OD(mm) | Copper.weight approx (kg/km) | Wight approx(kg/km) | ||||
7144100 | RVV 2×0.5mm² | 5.3 | 9 | 35 | ||||
7144101 | RVV 3×0.5mm² | 5.6 | 14 | 45 | ||||
7144102 | RVV 4×0.5mm² | 6.4 | 19 | 58 | ||||
7144103 | RVV 5×0.5mm² | 6.9 | 23 | 68 | ||||
7144104 | RVV 10×0.5mm² | 9.4 | 47 | 119 | ||||
7144105 | RVV 15×0.5mm² | 11.4 | 70 | 188 | ||||
7144106 | RVV 20×0.5mm² | 12.6 | 93 | 237 | ||||
7144107 | RVV 30×0.5mm² | 14.7 | 140 | 331 | ||||
7144108 | RVV 2×0.75mm² | 6.1 | 14 | 46 | ||||
7144109 | RVV 3×0.75mm² | 6.5 | 21 | 61 | ||||
7144110 | RVV 4×0.75mm² | 7.4 | 28 | 79 | ||||
7144111 | RVV 5×0.75mm² | 8.0 | 35 | 93 | ||||
7144112 | RVV 10×0.75mm² | 11.7 | 70 | 189 | ||||
7144113 | RVV 15×0.75mm² | 13.3 | 105 | 260 | ||||
7144114 | RVV 20×0.75mm² | 14.7 | 140 | 331 | ||||
7144115 | RVV 30×0.75mm² | 17.2 | 209 | 467 | ||||
7144116 | RVV 2×1.0mm² | 6.8 | 19 | 59 | ||||
7144117 | RVV 3×1.0mm² | 7.2 | 28 | 78 | ||||
7144118 | RVV 4×1.0mm² | 7.9 | 37 | 93 | ||||
7144119 | RVV 5×1.0mm² | 8.6 | 47 | 111 | ||||
7144120 | RVV 10×1.0mm² | 12.5 | 93 | 225 | ||||
7144121 | RVV 15×1.0mm² | 14.3 | 140 | 311 | ||||
7144122 | RVV 20×1.0mm² | 15.8 | 186 | 398 | ||||
7144123 | RVV 30×1.0mm² | 20.7 | 279 | 664 | ||||

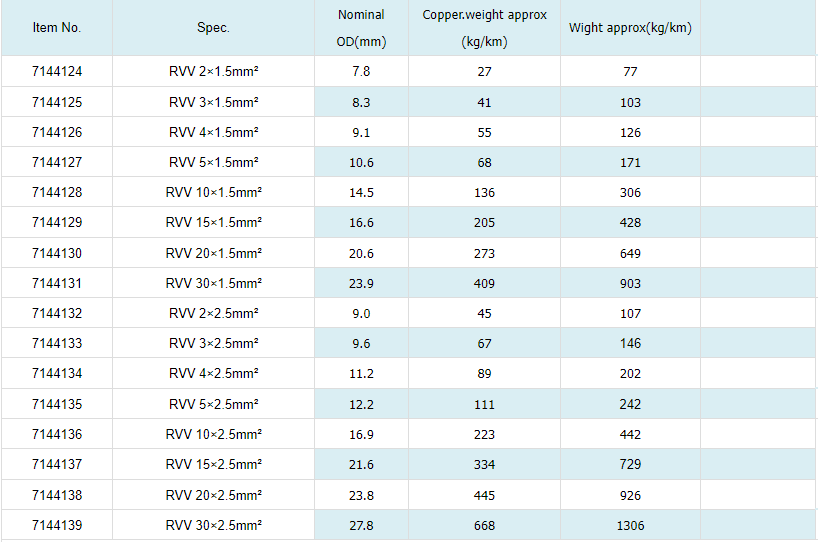

▉ Product List | ||||||||
Item No. | Spec. | Nominal OD(mm) | Copper.weight approx (kg/km) | Wight approx(kg/km) | ||||
7144124 | RVV 2×1.5mm² | 7.8 | 27 | 77 | ||||
7144125 | RVV 3×1.5mm² | 8.3 | 41 | 103 | ||||
7144126 | RVV 4×1.5mm² | 9.1 | 55 | 126 | ||||
7144127 | RVV 5×1.5mm² | 10.6 | 68 | 171 | ||||
7144128 | RVV 10×1.5mm² | 14.5 | 136 | 306 | ||||
7144129 | RVV 15×1.5mm² | 16.6 | 205 | 428 | ||||
7144130 | RVV 20×1.5mm² | 20.6 | 273 | 649 | ||||
7144131 | RVV 30×1.5mm² | 23.9 | 409 | 903 | ||||
7144132 | RVV 2×2.5mm² | 9.0 | 45 | 107 | ||||
7144133 | RVV 3×2.5mm² | 9.6 | 67 | 146 | ||||
7144134 | RVV 4×2.5mm² | 11.2 | 89 | 202 | ||||
7144135 | RVV 5×2.5mm² | 12.2 | 111 | 242 | ||||
7144136 | RVV 10×2.5mm² | 16.9 | 223 | 442 | ||||
7144137 | RVV 15×2.5mm² | 21.6 | 334 | 729 | ||||
7144138 | RVV 20×2.5mm² | 23.8 | 445 | 926 | ||||
7144139 | RVV 30×2.5mm² | 27.8 | 668 | 1306 | ||||
▉ Order Informations | ||||||||
Marking | HELLOSIGNAL Electrical lnstallation Cable(RVV) XXXFT/M | |||||||
Package | 100M/Reel, 300M/Wooden Spool | |||||||
Delivery time | Normally 25 days after received the deposit. | |||||||
Brand | HELLOSIGNAL® OR OEM |
