H05W-F 300V/500V European Standard Fixed Installation Cable

H05W-F 300V/500V European Standard Cable for Fixed Installations

■ Product Overview:

H05V-F falls under a flexible PVC insulated cable; it is most suited for fixed installation where dry areas are concerned.

It is in conformity with the European harmonized standards and mostly applied in home, office, and light industrial settings where mechanical stress is minimal.

■ Application:

This cable is used as control and connecting cables for electrical equipment. It applies to

machine tool and complete sets of equipment for fixed installation.

■ Cable Construction:

Conductors: Flexible ultra-fine stranded copper wire

Insulation: Flexible oil and heat-resistant PVC

Insulation color:

2 core: black, white

3 core: black, white, red

4 core: black, white, red, green

5 core: black, white, red, green, brown

Jacket: Flexible heat-resistant PVC mixture

Product reference standard: EN50525

■ Product Feature:

Voltage Rating: 300V/500V.

Temperature Range: -5°C to +70°C (for fixed installation).

Flame retardant; IEC 60332-1 compliant.

Common oils and chemicals resistant.

Easy to strip and install.

Good flexibility for routing without complication.

Highly reliable regarding electrical and thermal capacity.

An economical approach to various fixed and permanent wiring projects.

■ Product Applications:

Wiring of internal devices and circuits of panels.

Light installations.

Wiring in the equipment, home machines, and office gear.

Ideal to be used for jobs where flexibility is essential but you will not be putting the cables under mechanical stress.

■ Technical data:

Temperature Range:

Bend: -5℃~＋70℃

Static: -15℃~＋70℃

Rated Voltage:

H03VV-F  300/300V

H05VV-F  300/500V

Test Voltage:

H03VV-F  AC 2000V/5min;

H05VV-F  AC 2000V/5min

Insulation resistance: 20℃  ≥10MΩ/km

Min bending radius:

Fixed: 7.5D(D=cable diameter)

■ Standards and Certifications:

VDE 0281-2.

Harmonized with European HD 21.5 S3 Standard.

A CE mark signifies conformity.

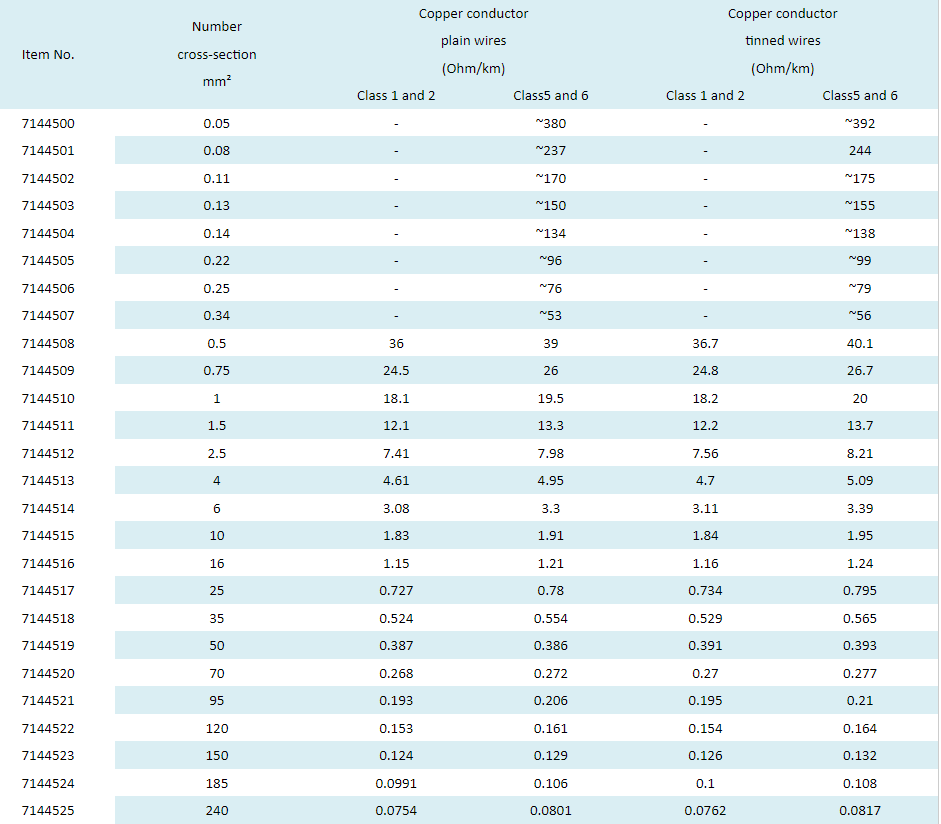

■ Product List:



■ Order Information:

Marking: HELLOSIGNAL European Standard Fixed

Installation Cable H05W-F 300V/500V XXXFT/M

Package: 100M/Reel, 300M/Wooden Spool

Delivery time: Normally 25 days after receiving the deposit.

Brand: HELLOSIGNAL® OR OEM
